Scenario: 1 RFC+1 APM30H+2 IBBS200Ds/IBBS200Ts+1 TMC11H
If a site is configured with one RFC, one APM30H, two IBBS200Ds/IBBS200Ts, and one
TMC11H, three monitoring signal cables are required on site.
Procedure
Step 1 Install the monitoring signal cable between the cascaded CMUAs between the IBBS200D/
IBBS200T and the IBBS200D/IBBS200T. Connect one end of the cable to the COM_IN port
on the CMUA on the cabinet door of the upper IBBS200D/IBBS200T and the other end to the
COM_OUT port on the CMUA on the cabinet door of the lower IBBS200D/IBBS200T, as shown
in Figure 12-47.

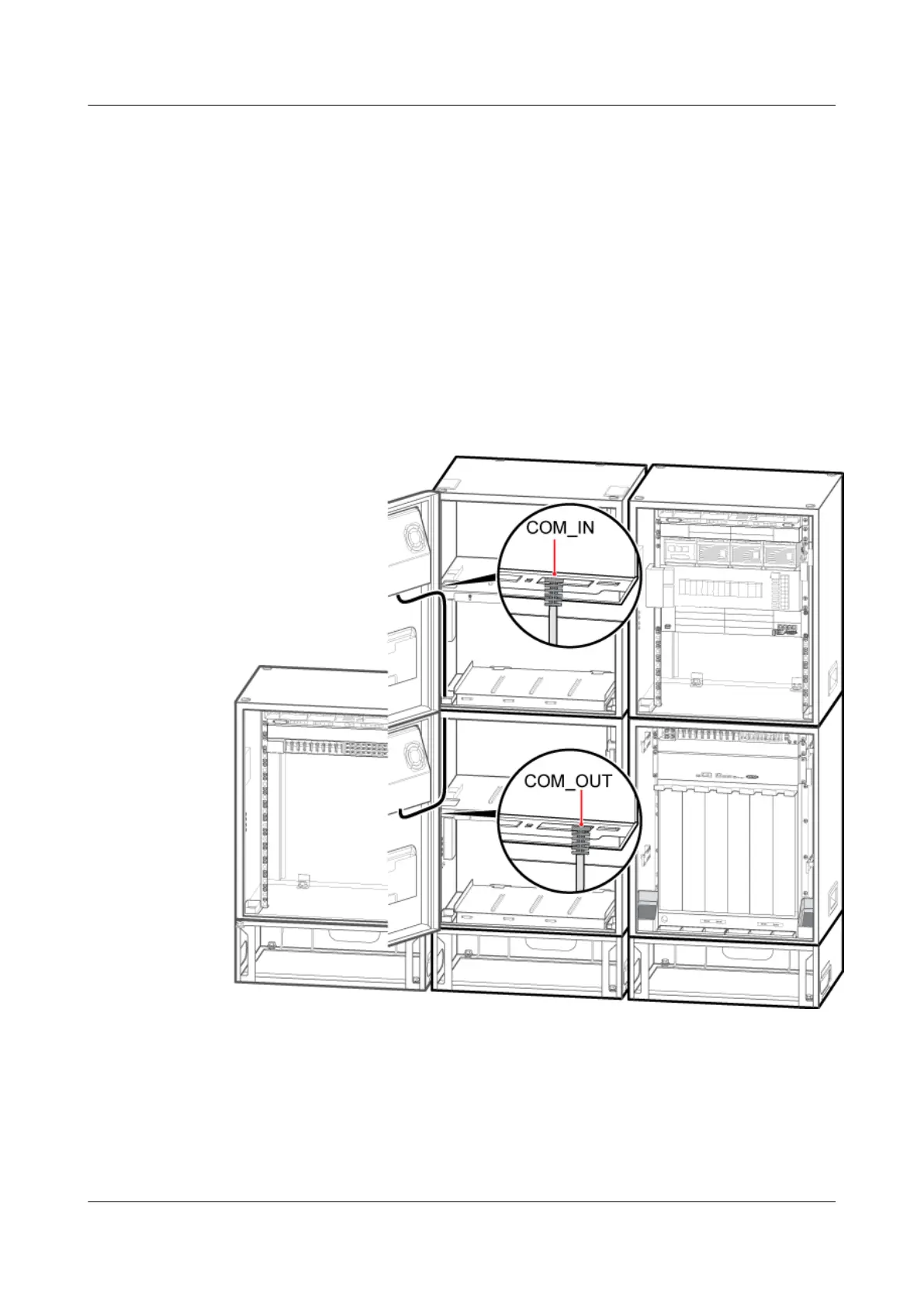

Figure 12-47 Installing the monitoring signal cable in the scenario of 1 RFC+1 APM30H+2
IBBS200Ds/IBBS200Ts+1 TMC11H (1)
Step 2 Install the monitoring signal cable for the batteries between the IBBS200D/IBBS200T and the
APM30H. Connect one end of the cable to the COM_IN port on the CMUA on the cabinet door
of the lower IBBS200D/IBBS200T and the other end to the COM_485 port on the PMU in the
APM30H, as shown in Figure 12-48.
