l Installing the TMC11H/IBBS200D/IBBS200T on the base
NOTE
l The description of the procedure is based on the IBBS200D.
l If the TMC11H/IBBS200D/IBBS200T is not required for the base station, skip the following
procedure.
1. Lift the cabinet onto the base, and then align the cabinet with the base, as shown in
Figure 9-6.

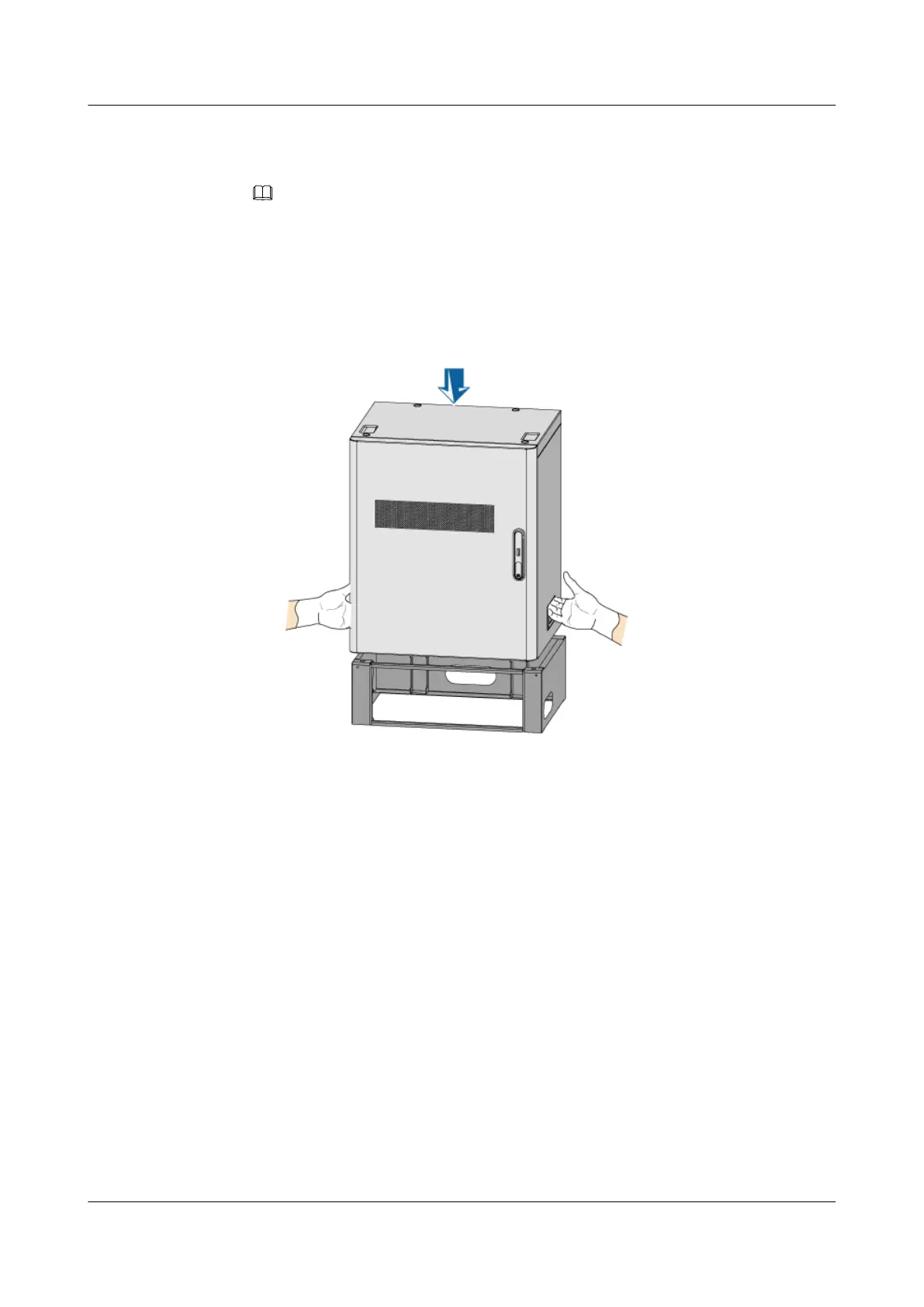

Figure 9-6 Lifting the IBBS200D onto the base
2. Use four M12x30 bolts to secure the cabinet on the base, as shown in Figure 9-7.
