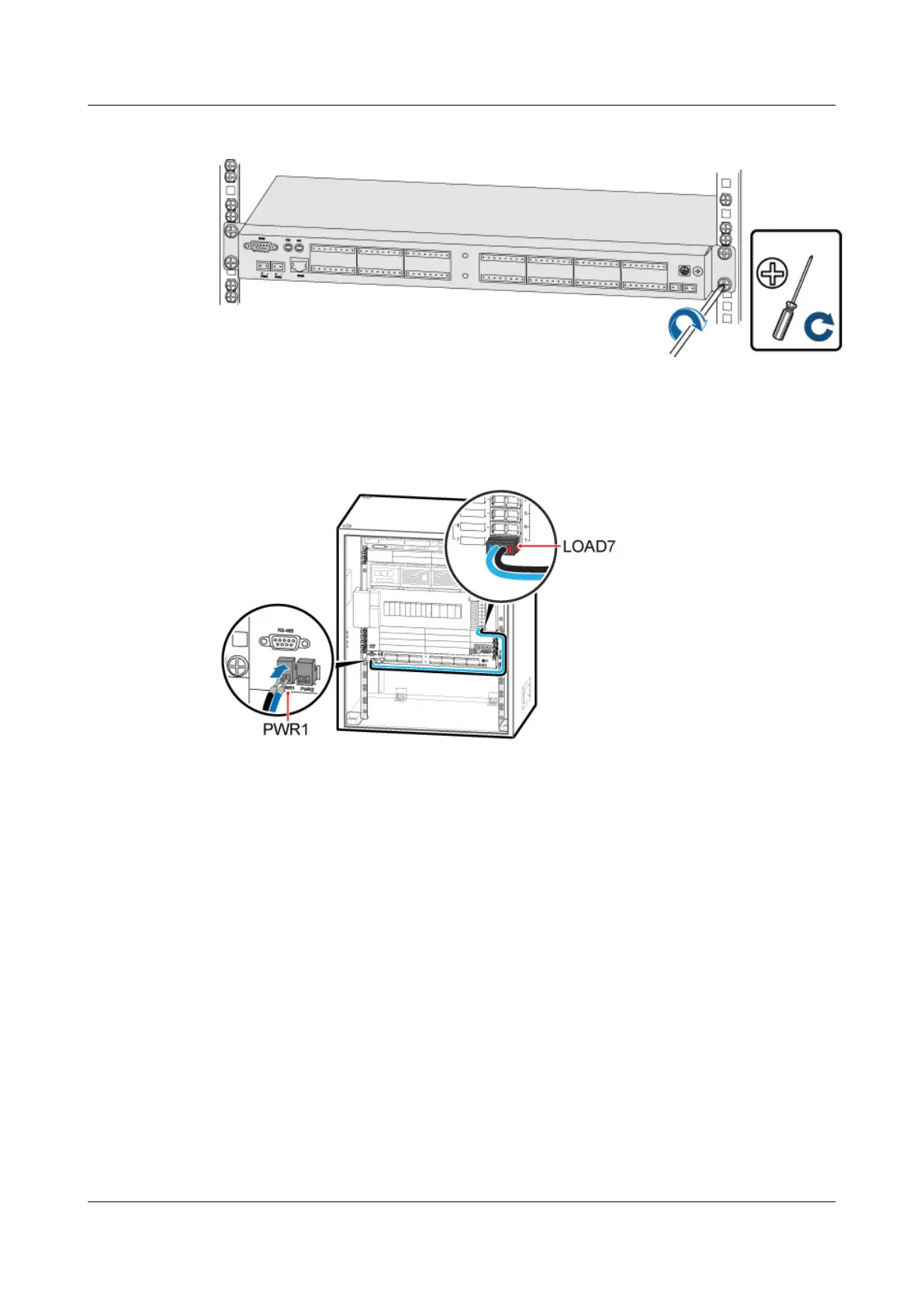

Figure 11-8 Installing the EMUA in the cabinet
Step 2 Figure 11-9 shows the connection of the power cable for the EMUA.
Figure 11-9 Installing the power cable for the EMUA
1. Install corresponding connectors on both ends of the power cable. For details, see
Assembling the Cord End Terminal and the Power Cable and Assembling the tool-less
female power connector (pressfit type) and the Power Cable.
2. Connect the cord end terminal at one end of the power cable to the transfer terminal of the
wiring terminal labeled PWR1 of the EMUA power cable.
3. Connect the easy power receptacle (pressfit type) connector at the other end of the power
cable to the DC output terminal on the EPS labeled LOAD7 in the cabinet.
Step 3 Figure 11-10 shows the connection of the EMUA monitoring signal cable.
BTS3900A(Ver.B)
Installation Guide 11 Installing Optional Modules
Issue 01 (2011-10-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
63
