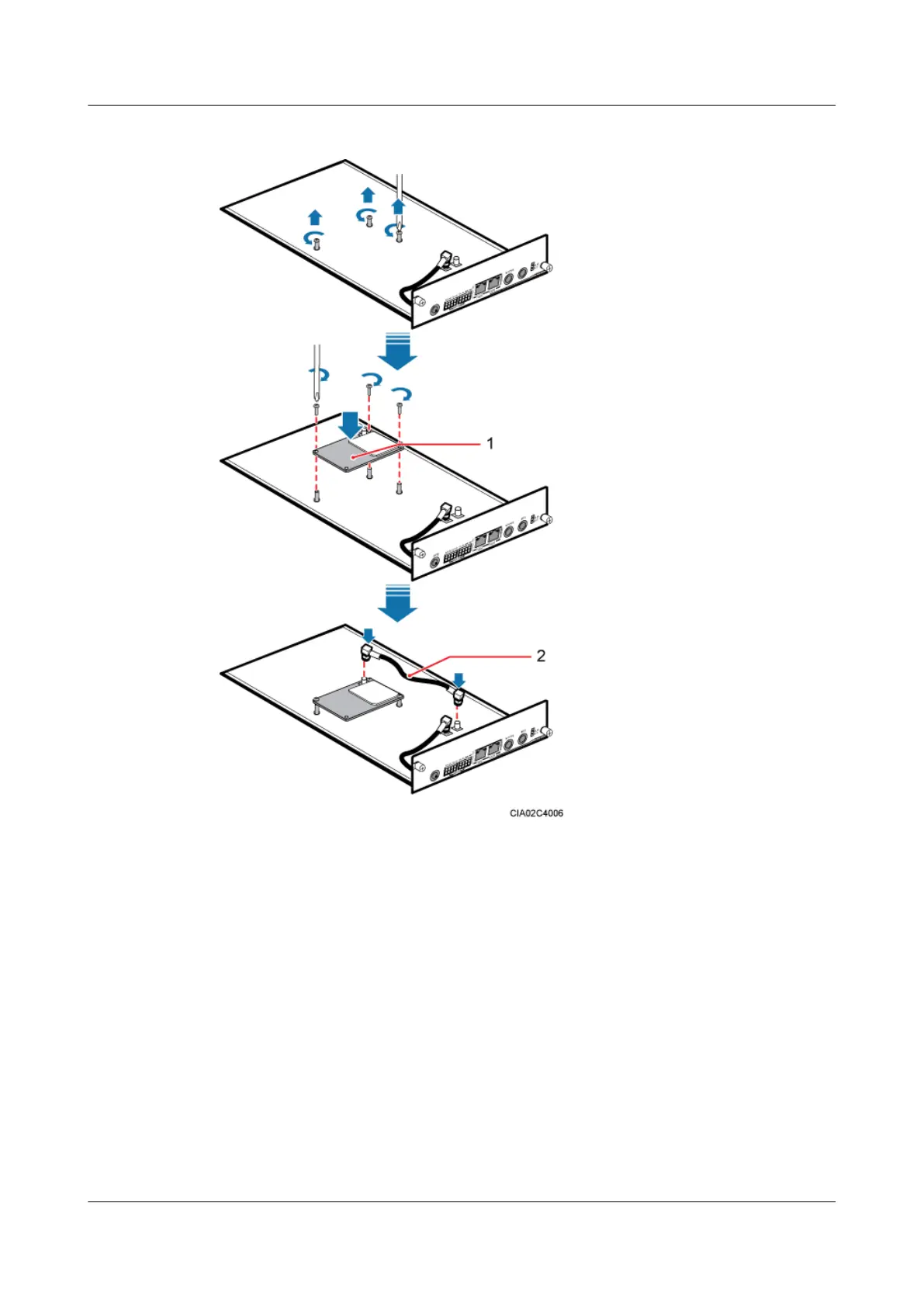

Figure 11-20 Installing the satellite receiver on the USCU
(1) Satellite receiver (2) RF jumper
Step 3 Install the USCU equipped with the satellite receiver into the BBU, and tighten the screws on
the USCU to 0.6 N·m.
Step 4 Install the GPS clock signal cable on the support, as shown in Figure 11-21.
