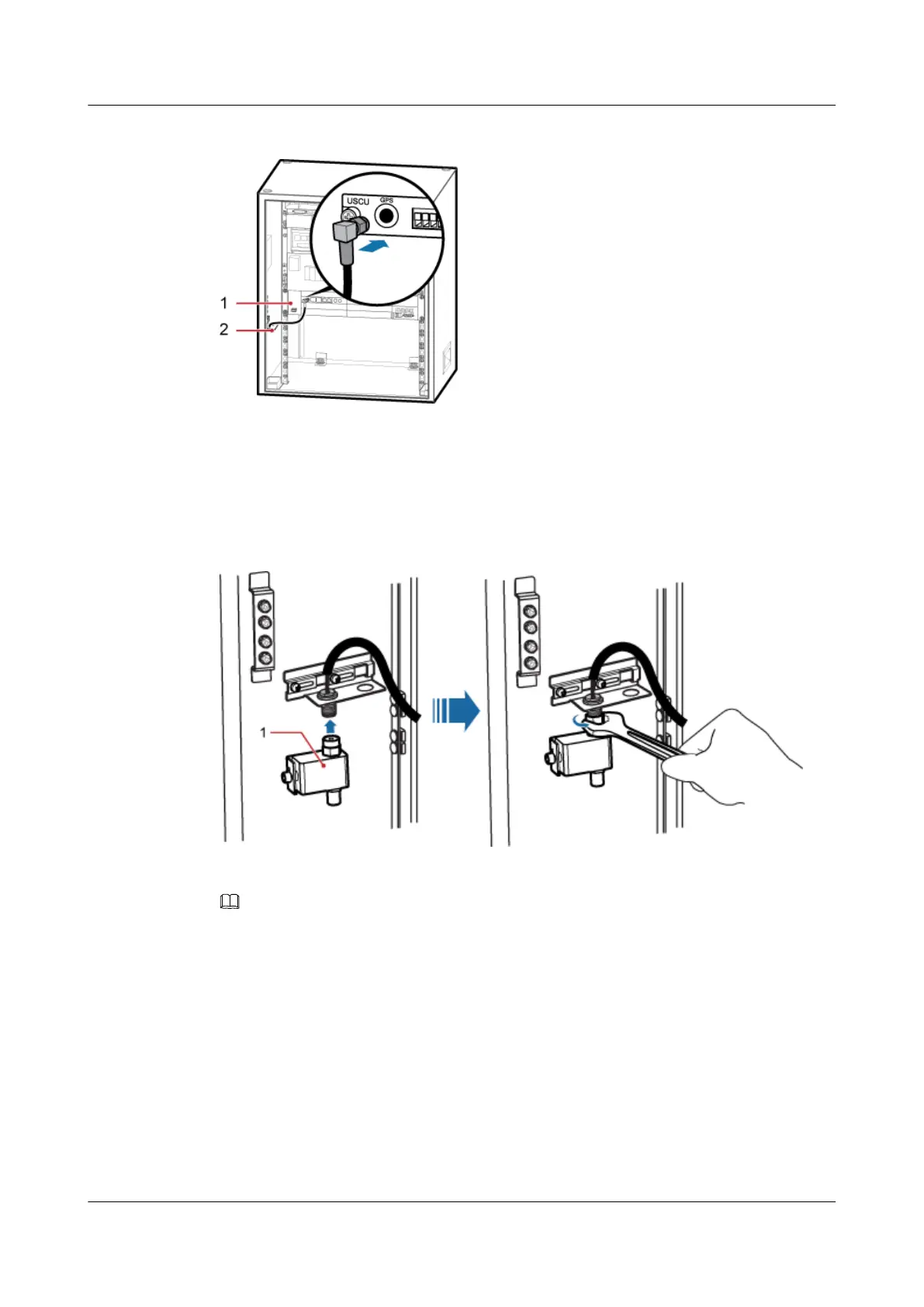

Figure 11-23 Installing the GPS clock signal cable on the USCU
(1) BBU (2) Support for the GPS
Step 7 Install the GPS surge protector, as shown in Figure 11-24.
Figure 11-24 Installing the GPS surge protector
(1) GPS surge protector
NOTE
The figure of the GPS surge protector is for reference only. The actual appearance may be different.
Step 8 Install the GPS jumper, as shown in Figure 11-25.
BTS3900A(Ver.B)
Installation Guide 11 Installing Optional Modules
