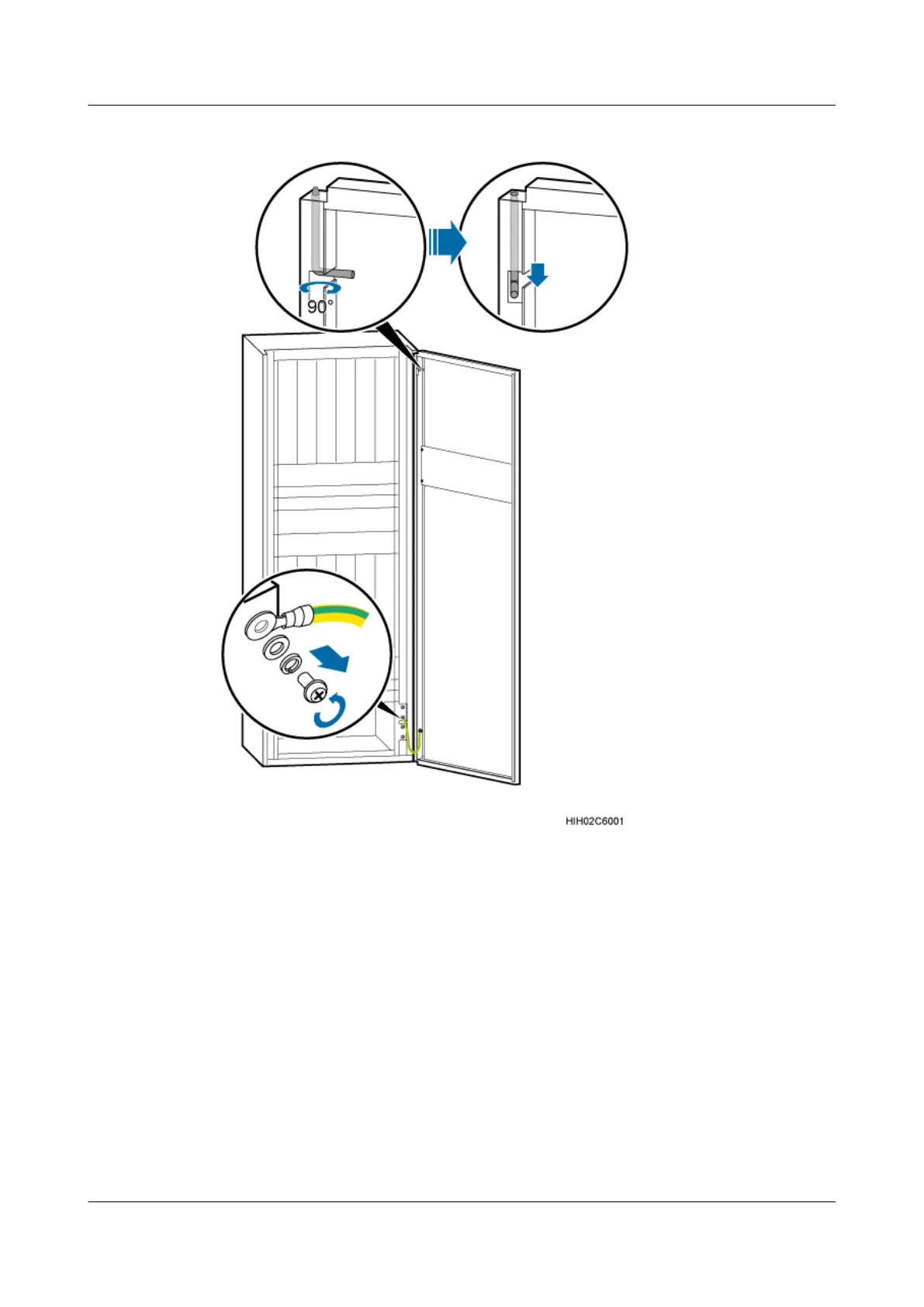

Figure 8-3 Removing the cabinet door
Step 4 Move the cabinet on the installation holes, place the expansion bolt assemblies into the holes,
and use a socket wrench to partially tighten them.
Step 5 Use a level to check the cabinet level, as shown in Figure 8-4. If the bubble is not at the center
of the level, adjust the cabinet level through the adjusting bolts.
BTS3900L (Ver.C)
Installation Guide
8 Installing the Cabinet
Issue 07 (2013-11-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
29
