NOTE

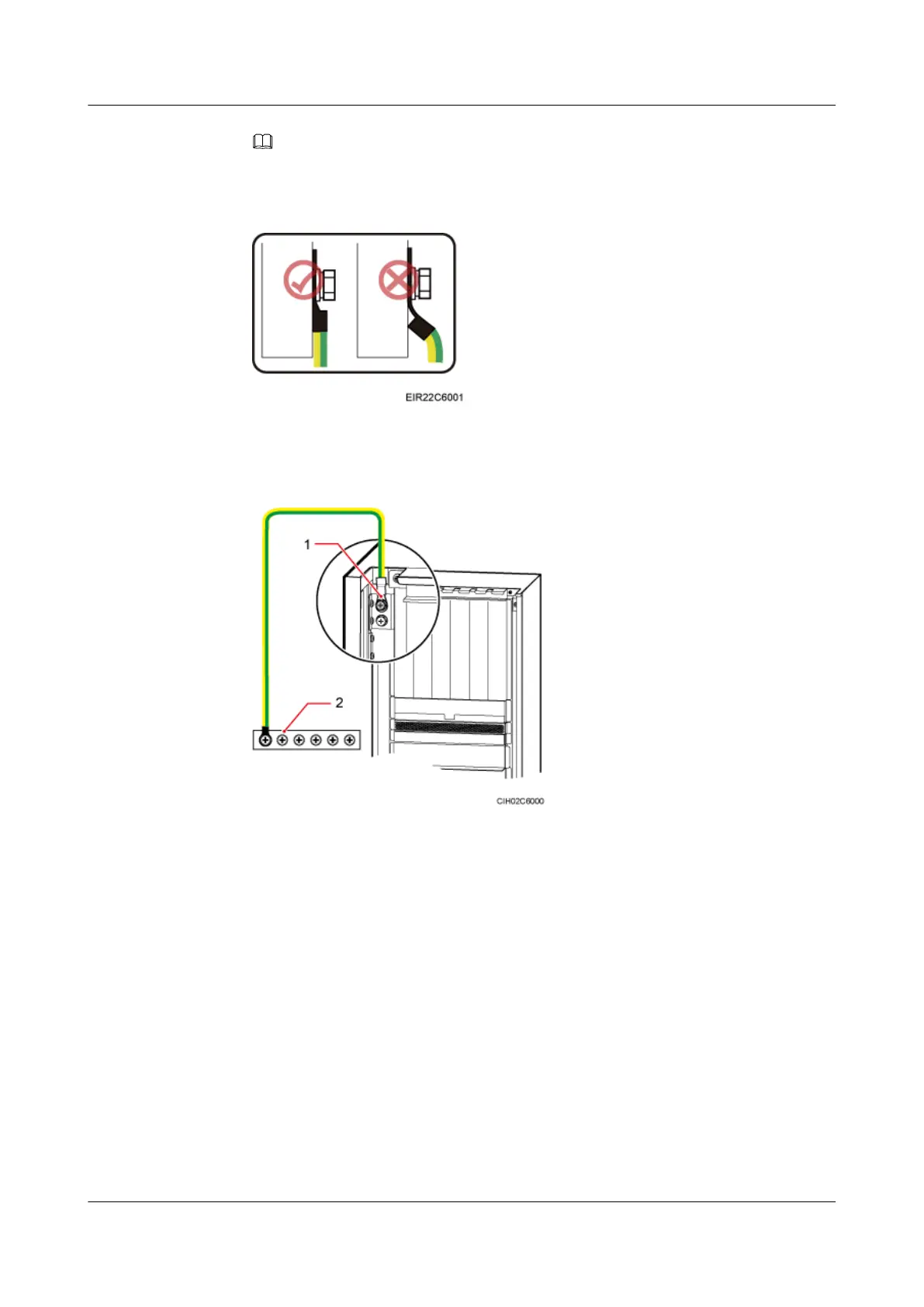

When installing a PGND cable, tightly press the OT terminal properly, as shown in Figure 9-1.
Figure 9-1 Installing an OT terminal
2. Connect the other end of the PGND cable to the external ground bar, as shown in Figure
9-2.
Figure 9-2 Installing the PGND cable
(1) OT terminal (M8)
(2) External ground bar
Step 3 Lay out the cable by referring to 11.1 Cabling Requirements, and then use cable ties to bind
the cable.
Step 4 Label the cables by referring to Attaching a Cable-Tying Label.
----End
