l Do not bind fiber optic cables at turns.
l Do not stretch, step on, or place heavy objects on fiber optic cables. Keep the cables away
from sharp objects.
l When fiber optic cables are routed, the excess of the cables must be coiled around special
devices, such as a fiber coiler.
l An unarmored fiber optic cable must be bound using binding straps. If a fiber optic patch
cord needs to be secured in a cabinet or a piece of equipment, use binding straps to bind it
and then use cable ties to secure the binding straps to the cabinet or equipment. Ensure that
the fiber optic cables can flexibly move in the cable ties. Do not bend the fiber optic cables
sharply. The following figure shows how to bind the fiber optic cables correctly.

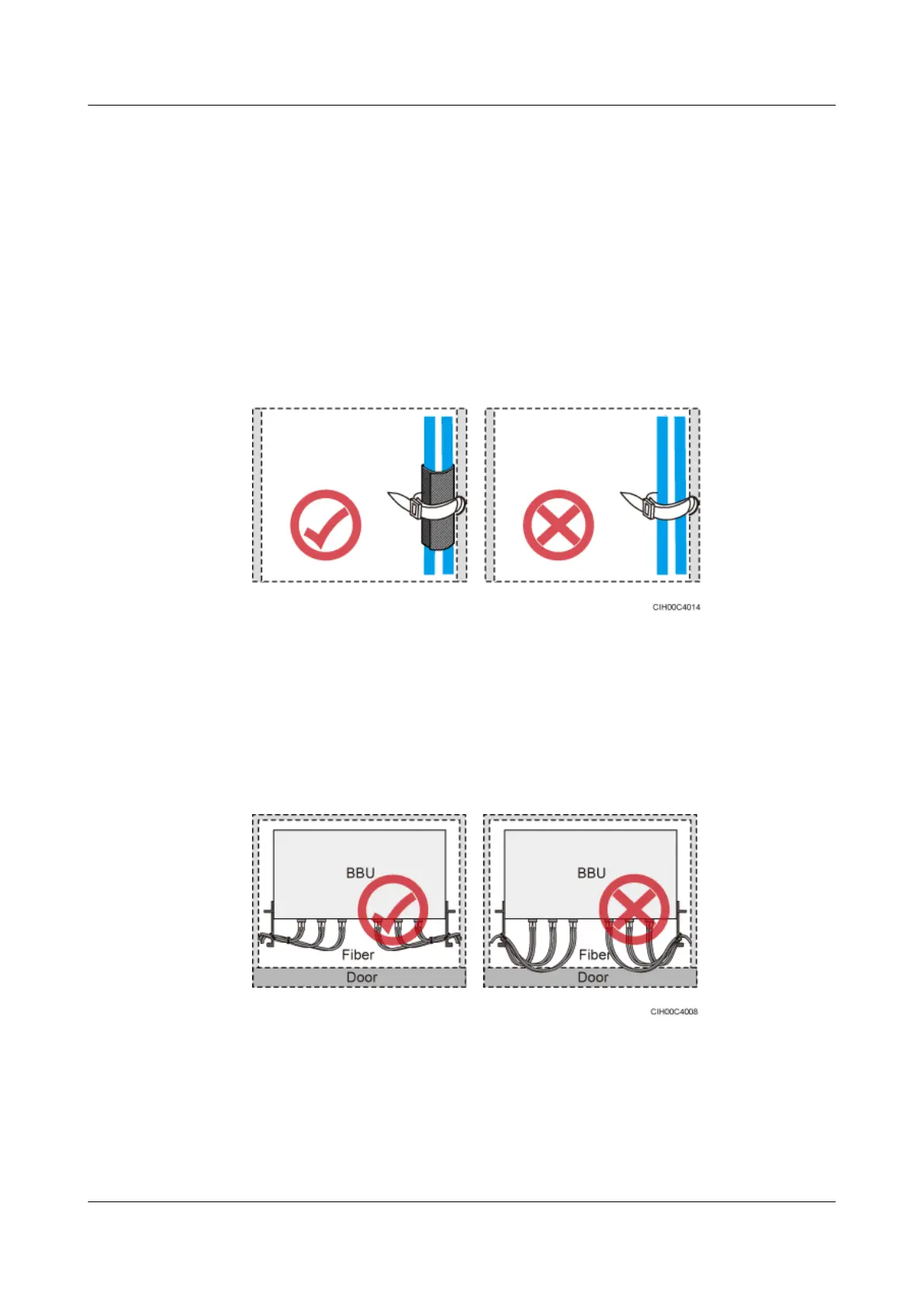

Figure 11-4 Binding fiber optic cables
l When coiling fiber optic cables, apply even strength. Do not bend the cables with force.
l Vacant optical connectors must be covered with dustproof caps.
l Fiber optic cables cannot be squeezed by the cabinet door when routed through the cabinet,
as shown in Figure 11-5, Figure 11-6 and Figure 11-7.
Figure 11-5 CPRI fiber optic cables routed through the cabinet (1)
BTS3900L (Ver.C)
Installation Guide
11 Installing the Cables
