3.2 Appearance

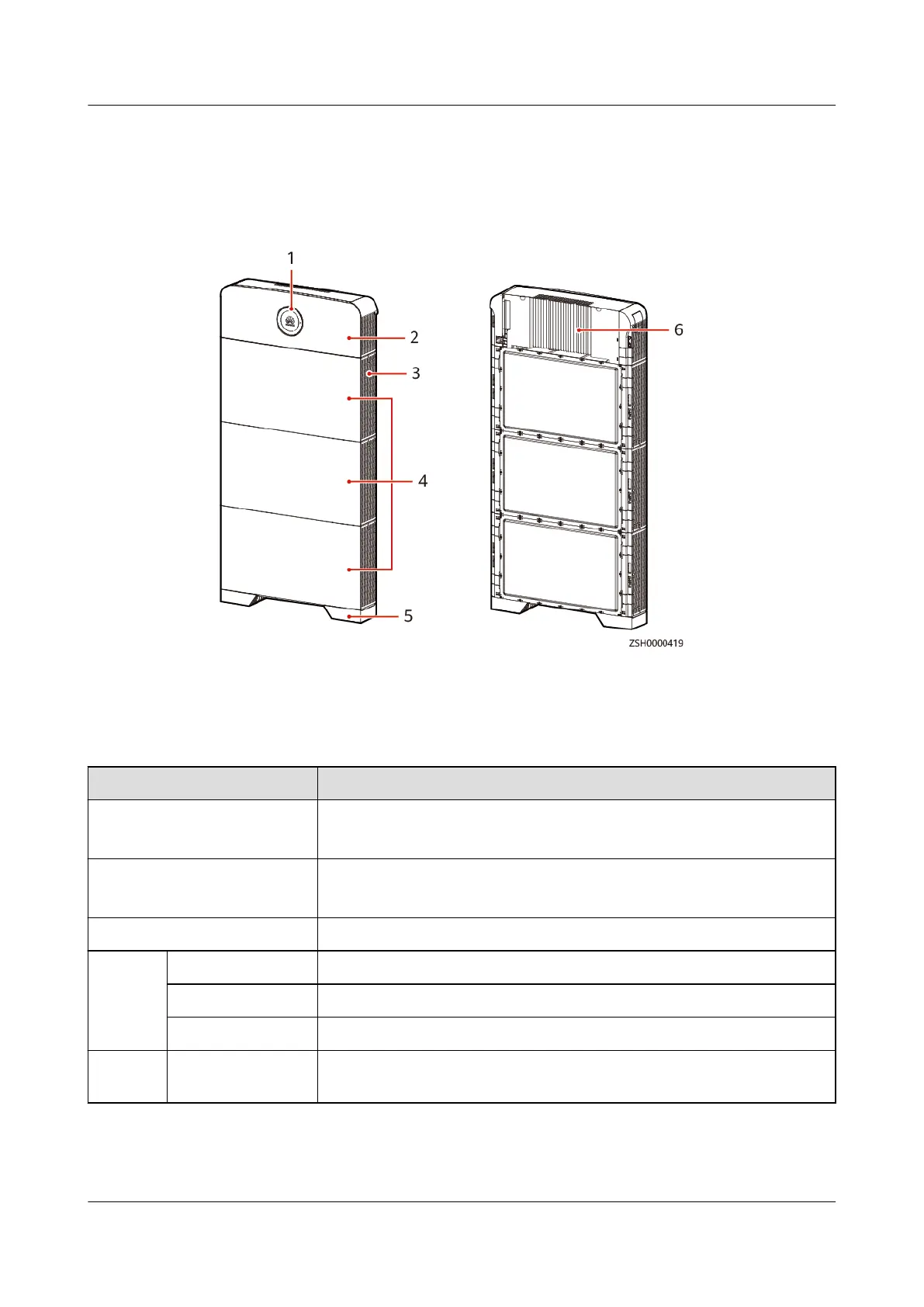

Figure 3-1 Appearance
(1) LED indicator (2) Power module (3) Decorative cover
(4) Battery modules (5) Base (6) Heat sink
Table 3-1 System specications
Item
Specications
Dimensions (H x W x D) ● Single power module: 246 mm x 700 mm x 152 mm
● Single battery module: 390 mm x 700 mm x 158 mm
Weight ● Power module: about 17 kg
● Battery module: about 50 kg
Mounting mode Ground-mounted and wall-mounted
AC
Input
Input voltage 200/208/220/230/240 V AC, default value: 220 V AC
Input current Maximum current: 30 A
Input capacity 6 kVA
PV
input
Open-circuit
voltage
85–435 V DC
iSitePower-M (MAP05A1, MAB05B1)
User Manual 3 Product Description
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 14

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
