7.9.5 Installing AC Input Power Cables in a Parallel System
● Install short-circuit plates for AC input circuit breakers.
● The three cables from the AC input circuit breaker to the power modules must be of the
same length.
Procedure

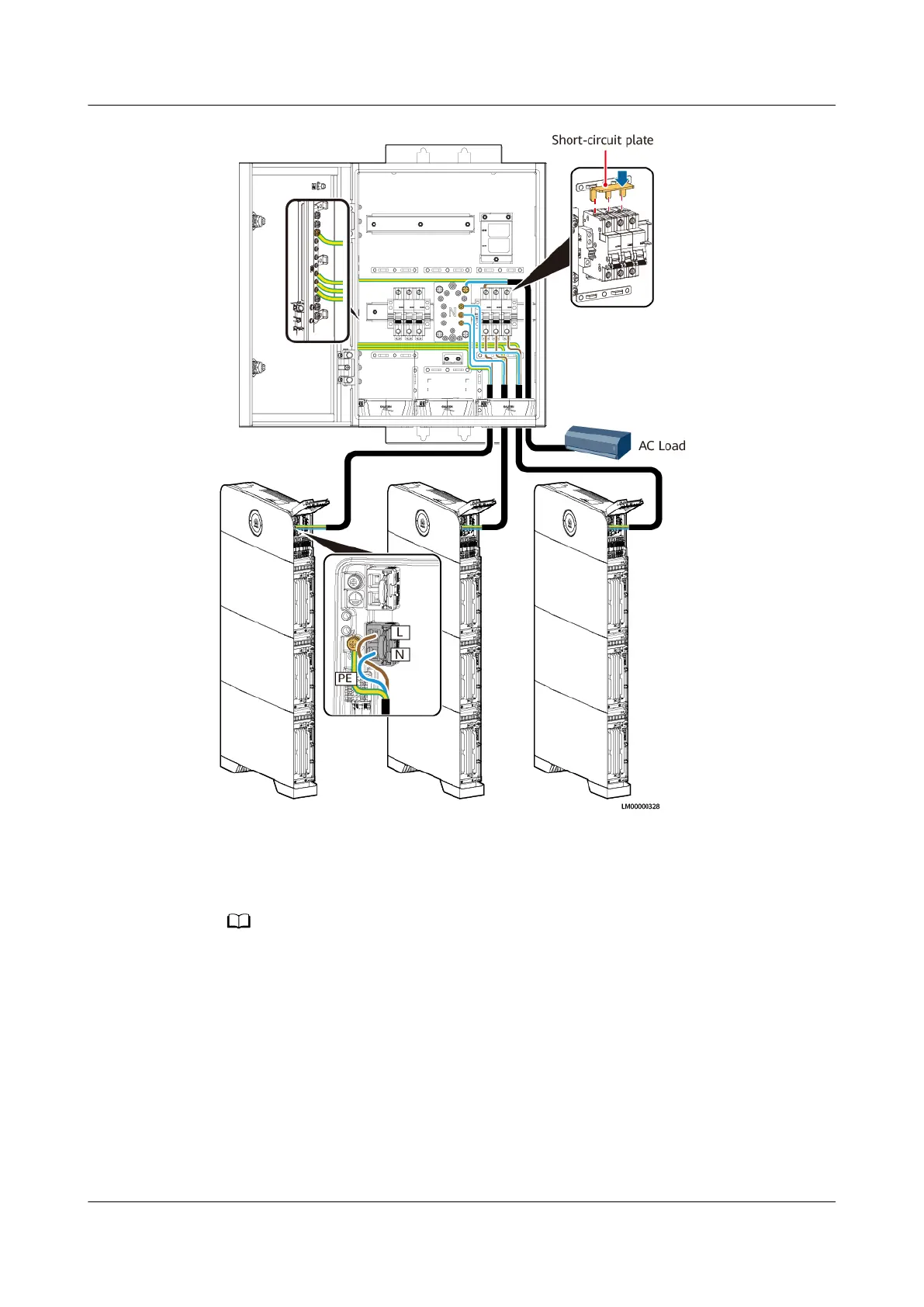

Step 1 Install AC input power cables of the parallel box.
iSitePower-M (MAP05A1, MAB05B1)
User Manual 7 Electrical Connection
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 76
