Huawei iSitePower-M User Manual

Item Specications
Input current Maximum current: 90 A
Output voltage 200/208/220/230/240 V AC, default value: 220 V AC
Output current Maximum current: 90 A
Cabling mode Routed in and out from the bottom
Mounting mode Mounted on a wall or pole (optional)
IP rating IP55
4.4 (Optional) Backhaul Module iIOT-WAC0411
The iIOT-WAC0411 is an outdoor 4G wireless backhaul module. After the wireless
backhaul module is inserted into the port, it can report alarms and signals to the
NetEco in wireless mode.
NO TICE
The wireless backhaul module may be disconnected or fail to connect to the
network in a closed metal environment or in a base station with weak signals.

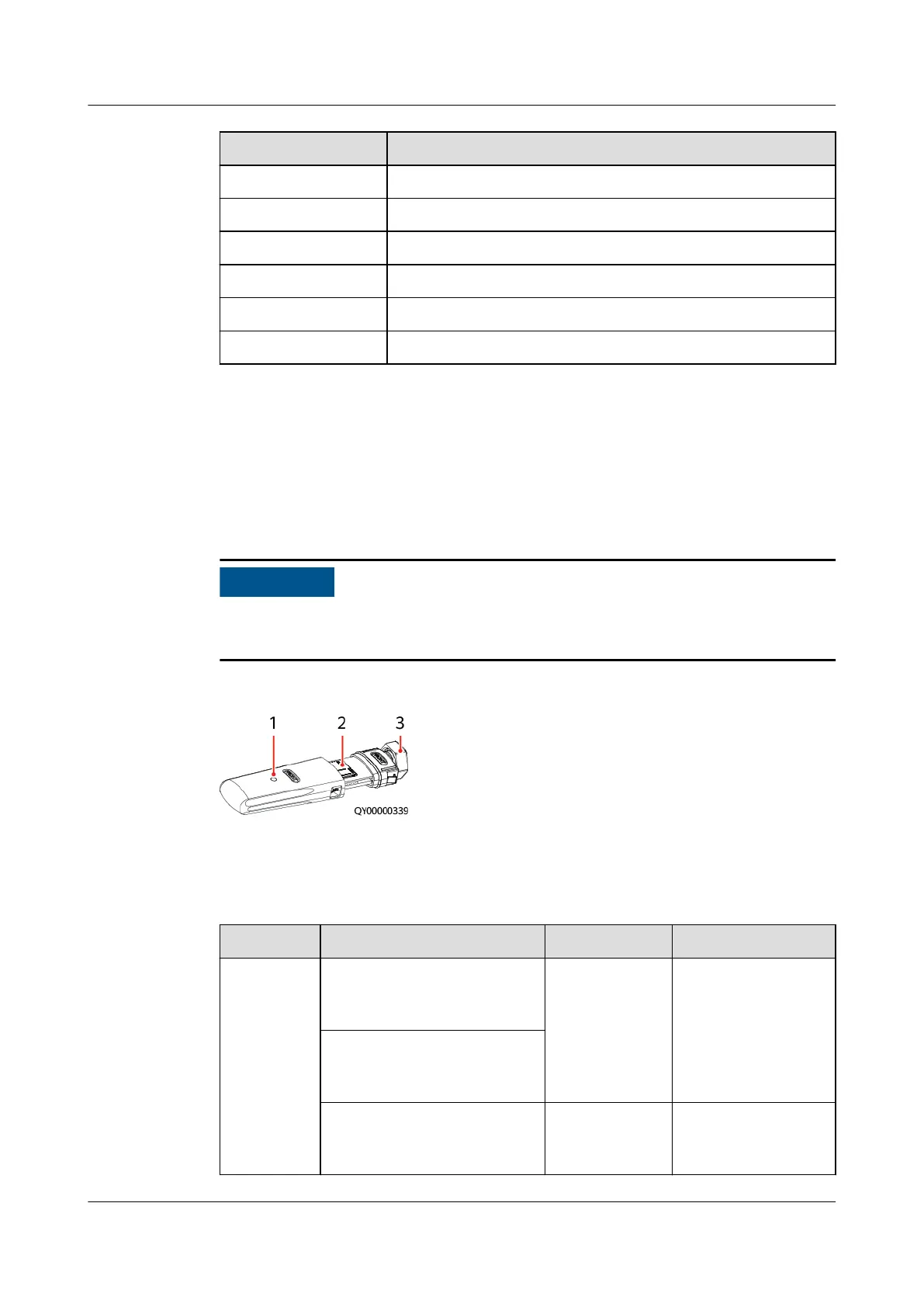

Figure 4-9 Backhaul module
(1) Indicator
(2) SIM card installation
position
(3) Module installation port
Table 4-10 Indicator status description
Color
Status Remarks Description
Green Blinking slowly: on for 0.1s,
o for 0.1s, on for 0.1s, and
o for 1.7s
Normal The backhaul
module has no
service, the service
is restricted, or the
network is being
searched.
Blinking slowly: at an
interval of 2s, on for 0.2s
and o for 1.8s alternately
Blinking slowly: at an
interval of 2s, on for 0.1s
and o for 1.9s alternately
Normal The backhaul
module has
successfully
iSitePower-M (MAP05A1, MAB05B1)
User Manual 4 Components
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 29

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
