Color Status Remarks Description

Blinking slowly: at an

interval of 2s, on for 1.8s

and o for 0.2s alternately

registered with the

network or is in the

standby state.

Steady on Normal The backhaul

module has set up

a dialup connection

or data is being

transmitted.

Blinking fast: on for 0.125s

and o for 0.125s

Red Steady on Abnormal The backhaul

module is faulty.

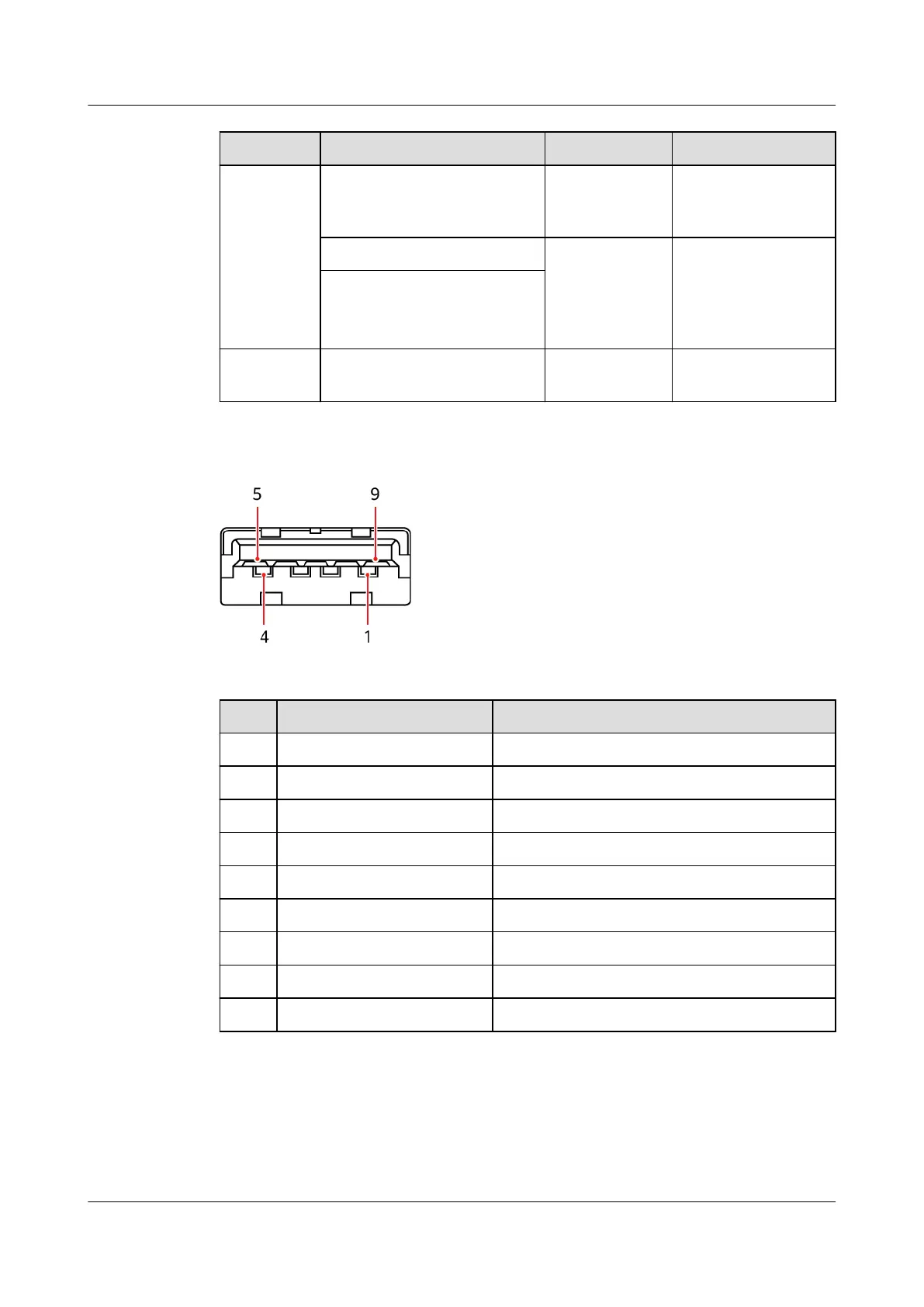

Figure 4-10 Port pins on the wireless backhaul module

Table 4-11 Port pin denition for the wireless backhaul module

Signal Description

1 VBUS Power supply

2 D- NC

3 D+ NC

4 GND1 Power ground

5 STDA_RX- Signal

6 STDA_RX+ Signal

7 GND2 NC

8 STDA_TX- Signal

9 STDA_TX+ Signal

iSitePower-M (MAP05A1, MAB05B1)

User Manual 4 Components

Other manuals for Huawei iSitePower-M

Questions and Answers:

Need help?

Do you have a question about the Huawei iSitePower-M and is the answer not in the manual?

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
