Huawei iSitePower-M User Manual

7.4 Installing PV Input Power Cables
Procedure
Step 1 Use a removal wrench to remove the waterproof gland from the PV input terminal
on the power module.
NO TE
Take out the removal wrench from the decorative cover delivered with the product.
Step 2 Install the PV input power cables.

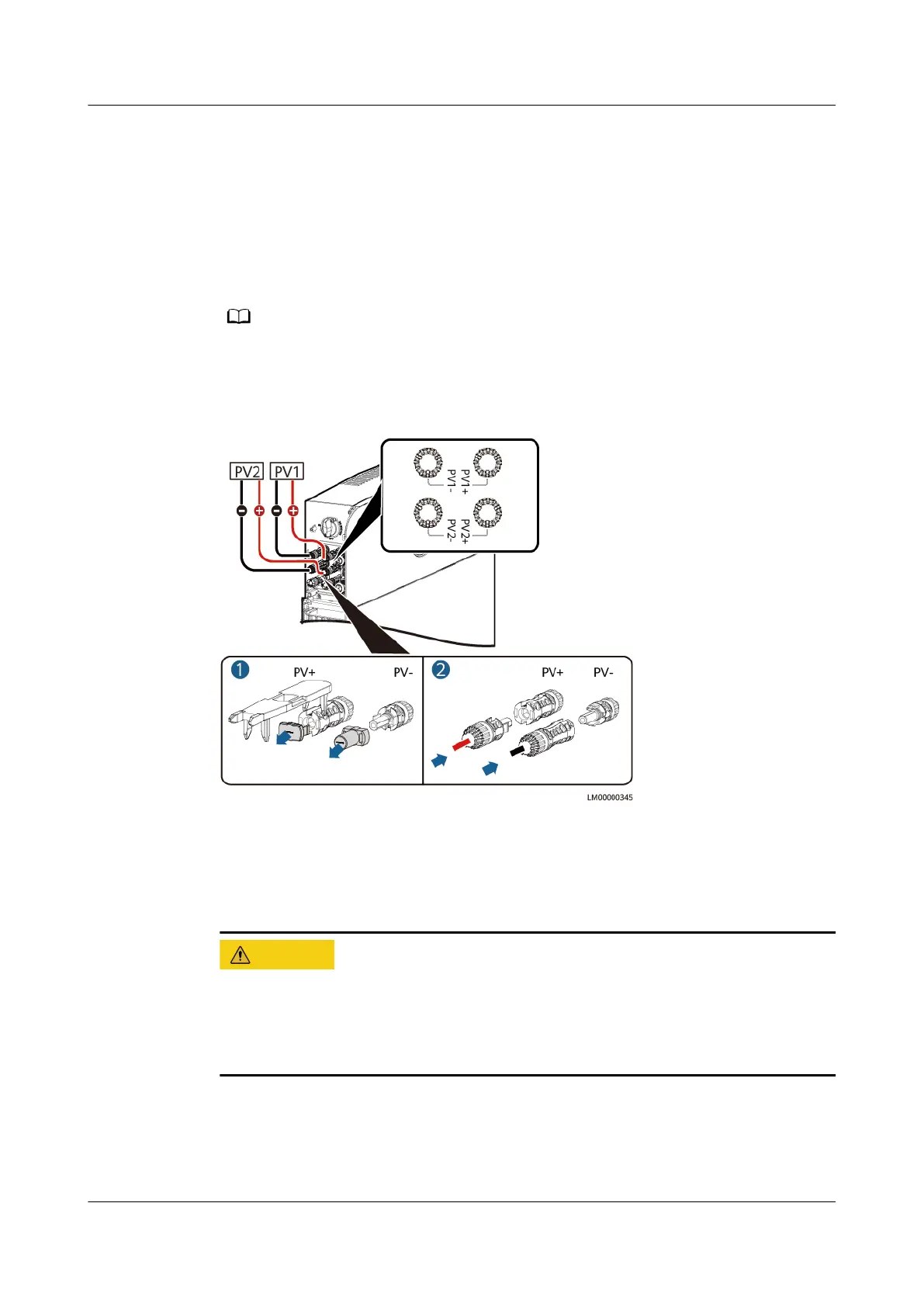

Figure 7-10 Installing the PV input power cables
----End
7.5 Installing Battery Module Power Cables
CA UTION
● Do not reversely connect positive and negative battery module power cables.
● Use the power cables delivered with the product. If the number of cables is
insucient or any cable is damaged, contact the dealer to obtain cables. Do
not prepare cables by yourself.
Procedure
Step 1 Use a wrench to remove the waterproof glands from the cascading terminals of
the battery modules.
iSitePower-M (MAP05A1, MAB05B1)
User Manual 7 Electrical Connection
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 67

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
