Huawei iSitePower-M User Manual

NO TICE
● To prevent dust inhalation or contact with eyes, wear safety goggles and an
anti-dust mask when drilling holes.
● Wipe away any dust in or around the holes and measure the hole spacing. If
the holes are inaccurately positioned, drill holes again.
● Level the head of the expansion sleeve with the concrete wall or ground after
removing the nut, spring washer, and
at washer. Otherwise, the mounting
bracket will not be securely installed.
● Loosen the nut, spring washer, and
at washer of the expansion bolt at the
bottom.
----End
6.2.2 Wall Mounting
Procedure
Step 1 Mark the mounting holes for the wall-mounting bracket and battery modules.

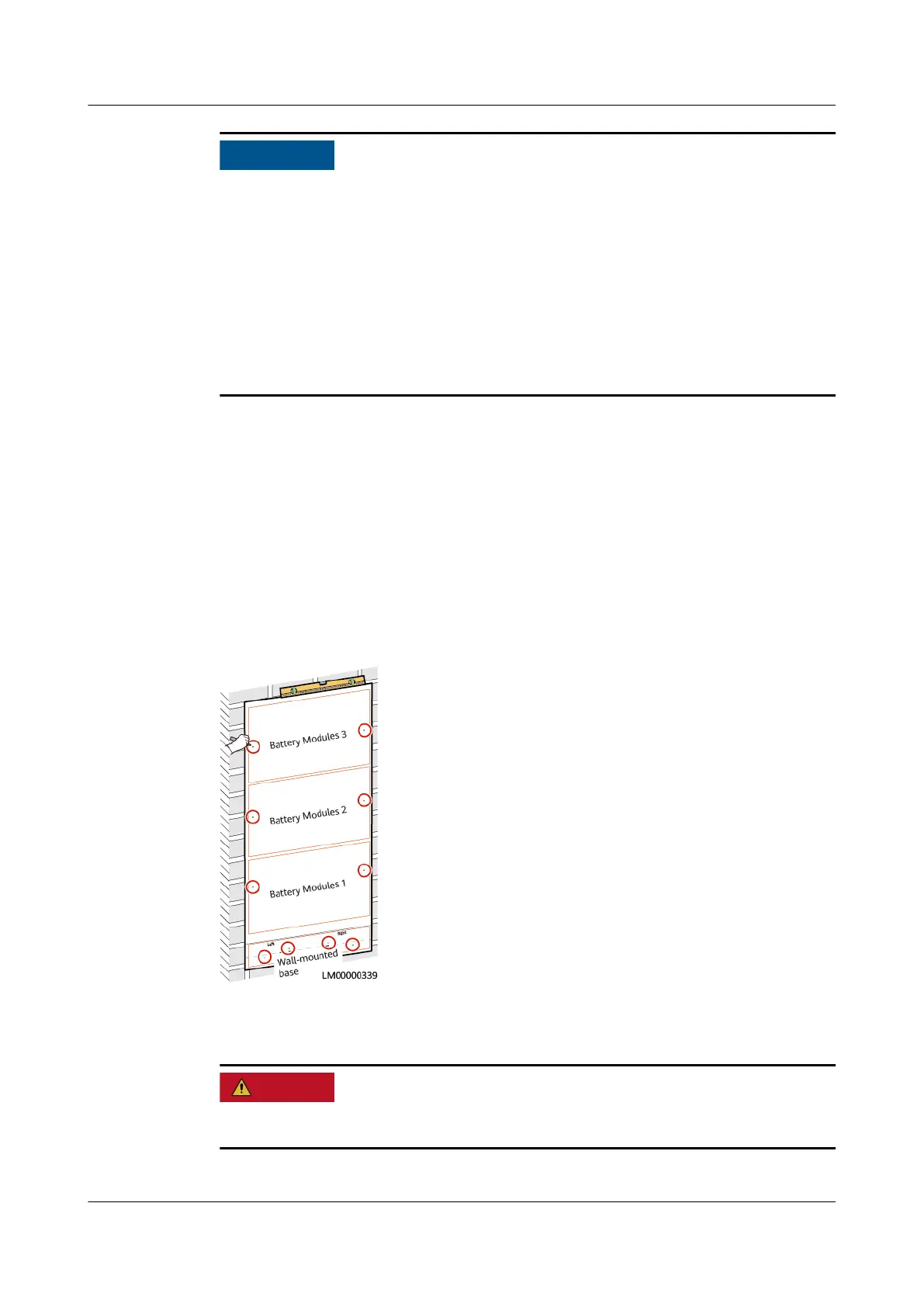

Figure 6-8 Standard mounting holes
Step 2 Drill holes and install expansion bolts.
D ANGER
When drilling holes, avoid the water pipes and power cables buried in the wall.
iSitePower-M (MAP05A1, MAB05B1)
User Manual 6 System Installation
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 48

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
