● Use the M12x60 expansion bolts delivered with the product to secure the wall-mounting
bracket. If the length or quantity of the expansion bolts cannot meet the installation
requirements, prepare M12 stainless steel expansion bolts by yourself.
● Use the M6x60 expansion bolts delivered with the product to secure the modules. If the
length or quantity of the expansion bolts cannot meet the installation requirements,
prepare M6 stainless steel expansion bolts by yourself.

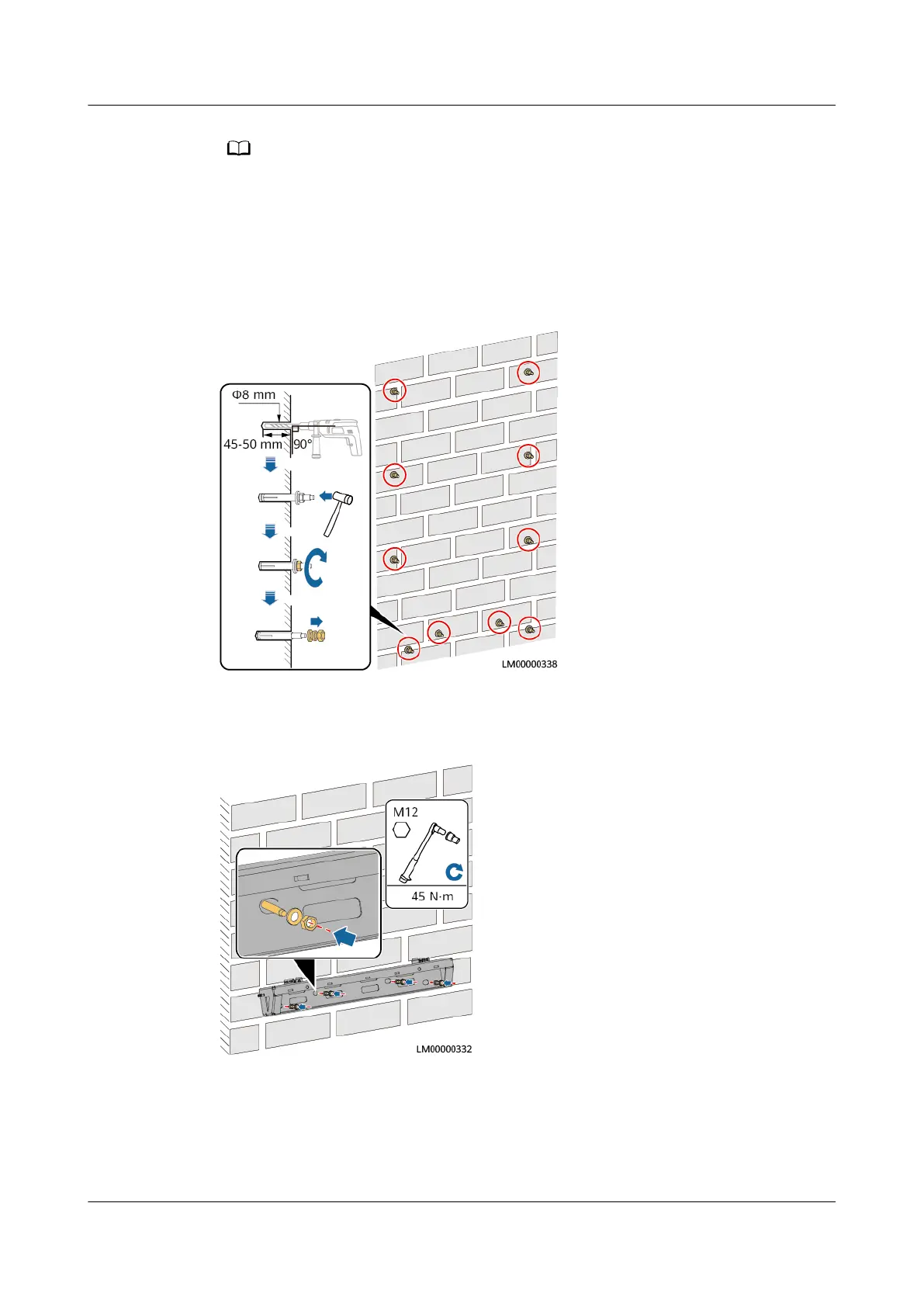

Figure 6-9 Installing expansion bolts
Step 3 Install a wall-mounting bracket.
Figure 6-10 Installing a wall-mounting bracket
Step 4 Install a wall-mounting bracket cover.
