Huawei iSitePower-M User Manual

No. Check Item Expected Result
3 Cable bonding Cable ties are evenly distributed and no
burr exists.
4 Grounding Power cables, signal cables, and ground
cables are correctly and securely
connected.
5 Switch The DC SWITCH and all switches
connected to the product are OFF.
6 Short circuit at AC
input and output ports
The live wire and neutral wire of an AC
power cable is correctly connected.
7 Unused terminal and
port
Unused terminals and ports are locked
by waterproof glands.
8 Removal wrench The removal wrench is placed in the
original position in the decorative cover.
9 Installation
environment
The installation space is proper, and the
installation environment is clean and
tidy.
7.10.2 Arranging Cables
NO TICE
Check that the cables are correctly connected. Then fasten the cables to the
corresponding cable slots.

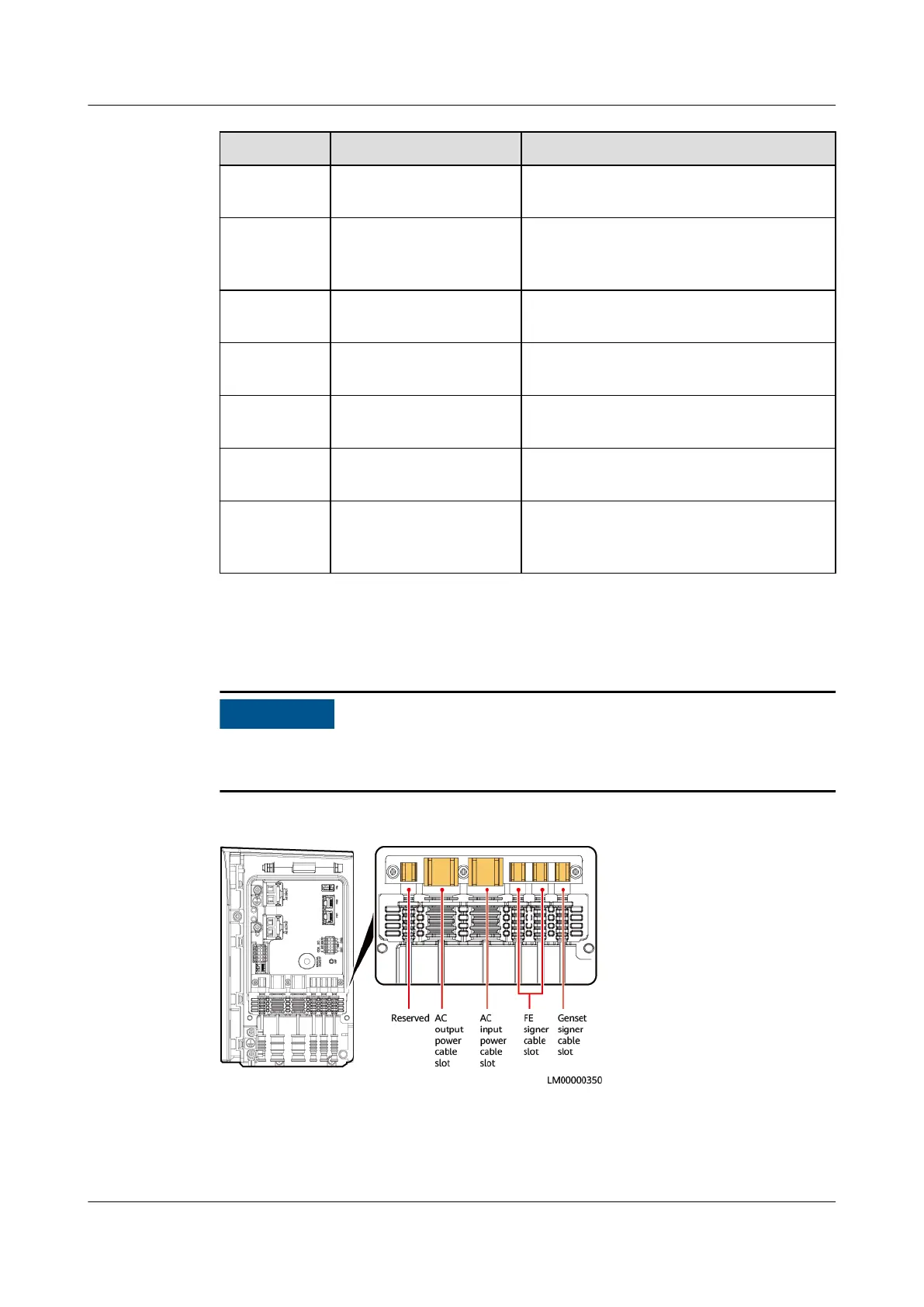

Figure 7-21 Cable hole distribution
iSitePower-M (MAP05A1, MAB05B1)
User Manual 7 Electrical Connection
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 78

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
