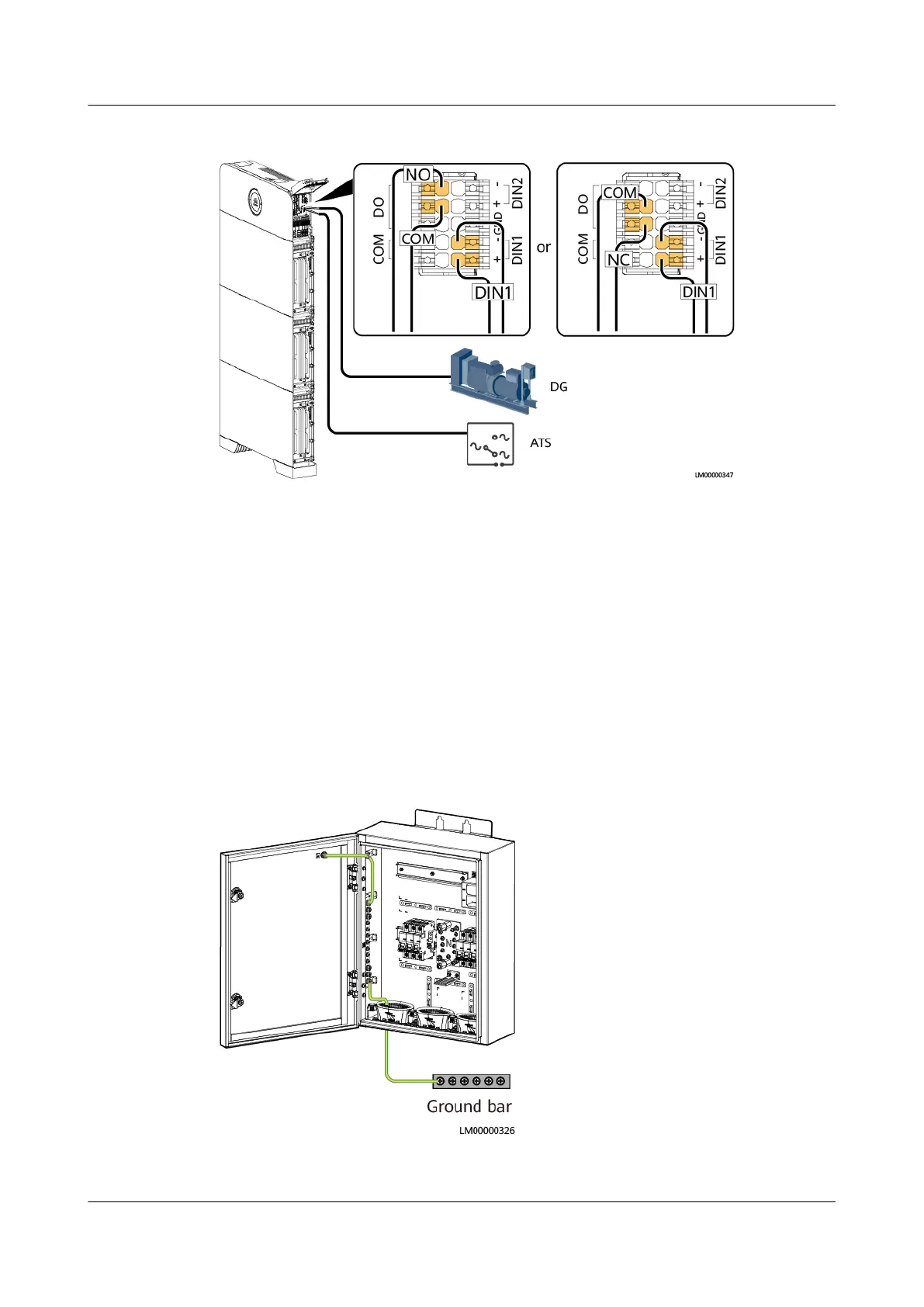

Figure 7-17 Installing genset control signal cables (genset-grid scenario)
----End
7.9 (Optional) Installing Cables in a Parallel System
7.9.1 Installing a Ground Cable for the Parallel Box
Procedure
Step 1 Install a ground cable.
Figure 7-18 Installing a ground cable
----End
