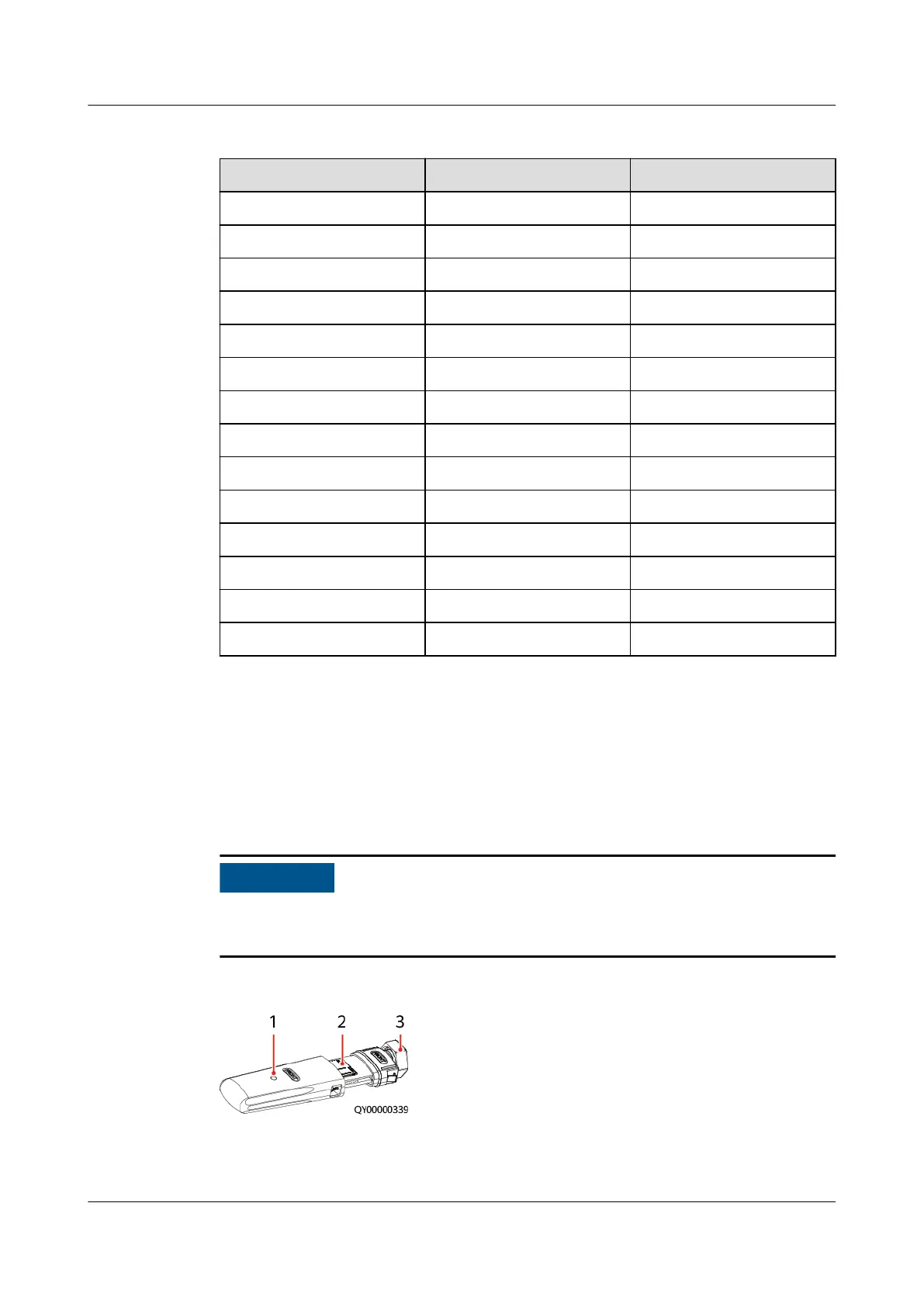

Table 4-12 Frequency bands supported by the 4G wireless backhaul
Frequency Band Transmit (Tx) Receive (Rx)
EGSM900 880 MHz–915 MHz 925 MHz–960 MHz
DCS1800 1710 MHz–1785 MHz 1805 MHz–1880 MHz
WCDMA B1 1920 MHz–1980 MHz 2110 MHz–2170 MHz
WCDMA B5 824 MHz–849 MHz 869 MHz–894 MHz
WCDMA B8 880 MHz–915 MHz 925 MHz–960 MHz
LTE-FDD B1 1920 MHz–1980 MHz 2110 MHz–2170 MHz
LTE-FDD B3 1710 MHz–1785 MHz 1805 MHz–1880 MHz
LTE-FDD B5 824 MHz–849 MHz 869 MHz–894 MHz
LTE-FDD B8 880 MHz–915 MHz 925 MHz–960 MHz
LTE-TDD B34 2010 MHz–2025 MHz 2010 MHz–2025 MHz
LTE-TDD B38 2570 MHz–2620 MHz 2570 MHz–2620 MHz
LTE-TDD B39 1880 MHz–1920 MHz 1880 MHz–1920 MHz
LTE-TDD B40 2300 MHz–2400 MHz 2300 MHz–2400 MHz
LTE-TDD B41 2555 MHz–2655 MHz 2555 MHz–2655 MHz
4.5 (Optional) Backhaul Module iIOT-WAC0412
The iIOT-WAC0412 is an outdoor 4G wireless backhaul module. After the wireless
backhaul module is inserted into the port, it can report alarms and signals to the
NetEco in wireless mode.
NO TICE
The wireless backhaul module may be disconnected or fail to connect to the
network in a closed metal environment or in a base station with weak signals.
Figure 4-11 Backhaul module
(1) Indicator
(2) SIM card installation
position
(3) Module installation port
iSitePower-M (MAP05A1, MAB05B1)
User Manual 4 Components
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 31

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
