Huawei iSitePower-M User Manual

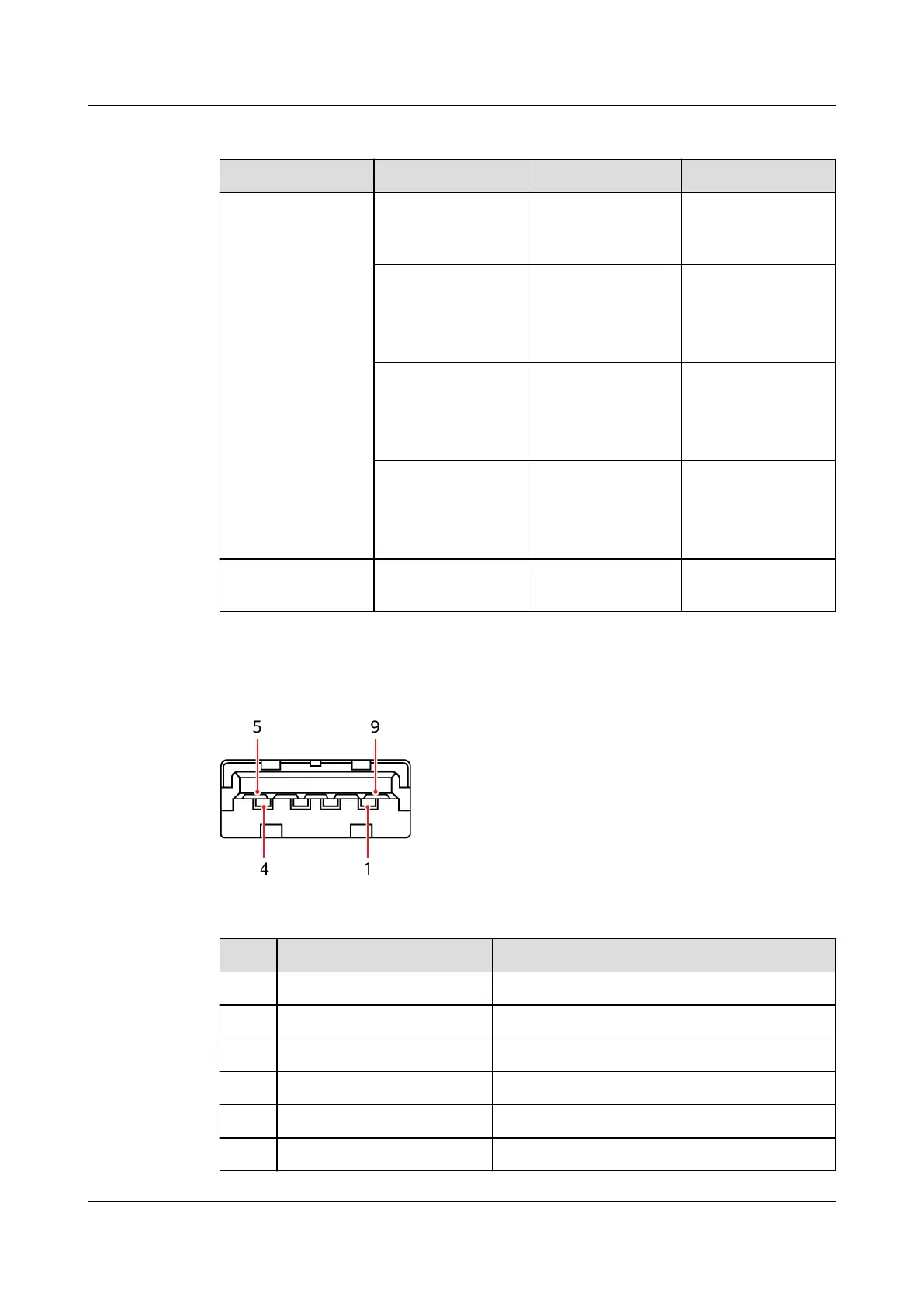

Table 4-13 Indicator status description
Color Status Remarks Description
Green Steady on Abnormal The backhaul
module is not
running.
Blinking slowly
On for 0.8s and
o for 0.064s
alternately
Normal The backhaul
module is not
registered with
the network.
Blinking slowly
On for 2s and o
for 0.064s
alternately
Normal The backhaul
module is
registered with
the network.
Blinking slowly
On for 0.6s and
o for 0.064s
alternately
Normal The backhaul
module is
transmitting data.
Red Steady on Abnormal The backhaul
module is faulty.
Figure 4-12 Pins on the port of the wireless backhaul module (male, backhaul
module side)
Table 4-14 Port pin denition for the wireless backhaul module
Pin
Signal Description
1 VBUS Power supply
2 D- NC
3 D+ NC
4 GND1 Power ground
5 STDA_RX- Signal
6 STDA_RX+ Signal
iSitePower-M (MAP05A1, MAB05B1)
User Manual 4 Components
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 32

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
