7.10.3 Subsequent Operations
Procedure
Step 1 Close the maintenance compartment door.

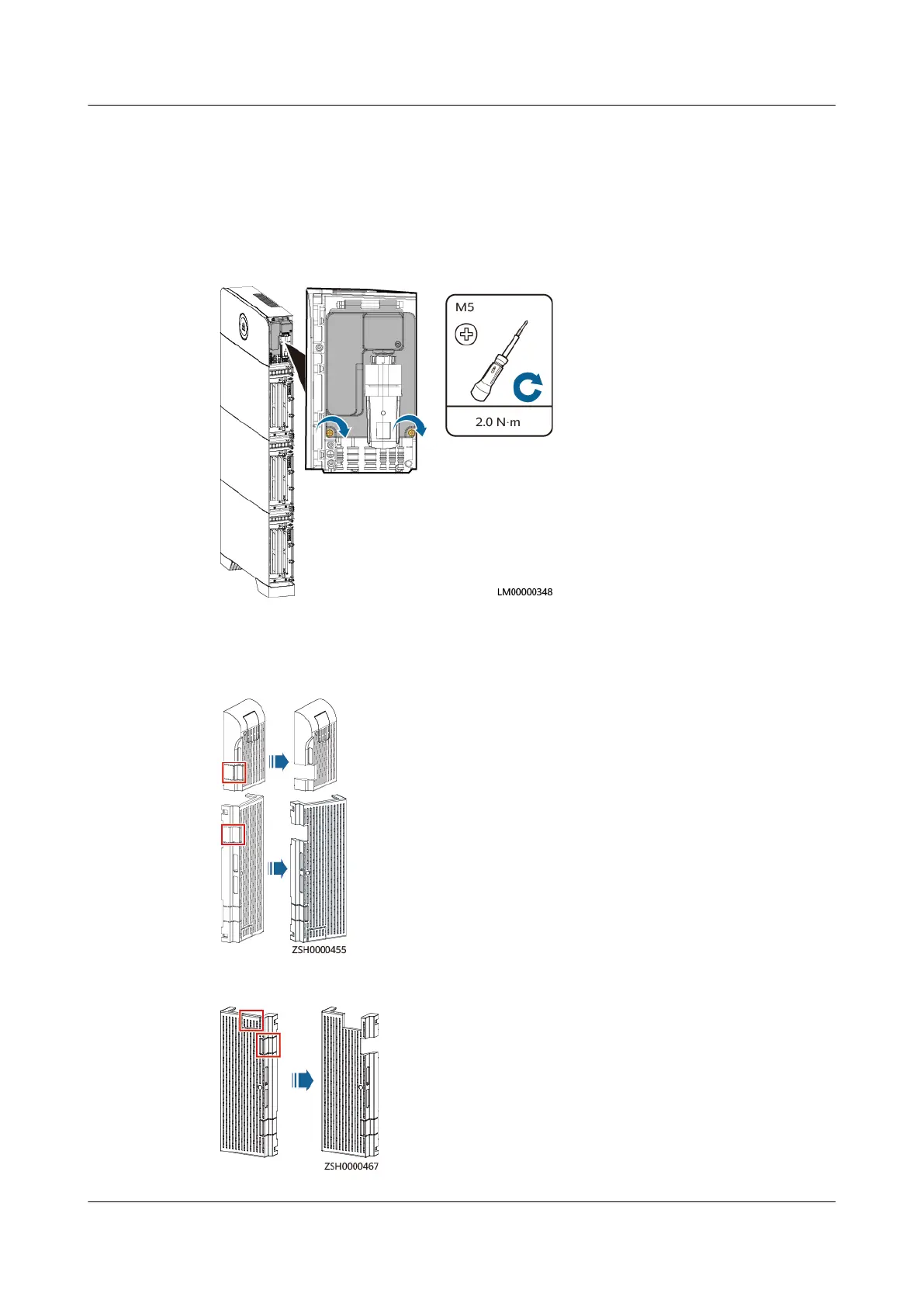

Figure 7-22 Closing the maintenance compartment door
Step 2 To facilitate cabling, you can cut the decorative cover based on the actual
situation.
Figure 7-23 Cutting the left decorative cover
Figure 7-24 Cutting the right decorative cover
iSitePower-M (MAP05A1, MAB05B1)
User Manual 7 Electrical Connection
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 79
