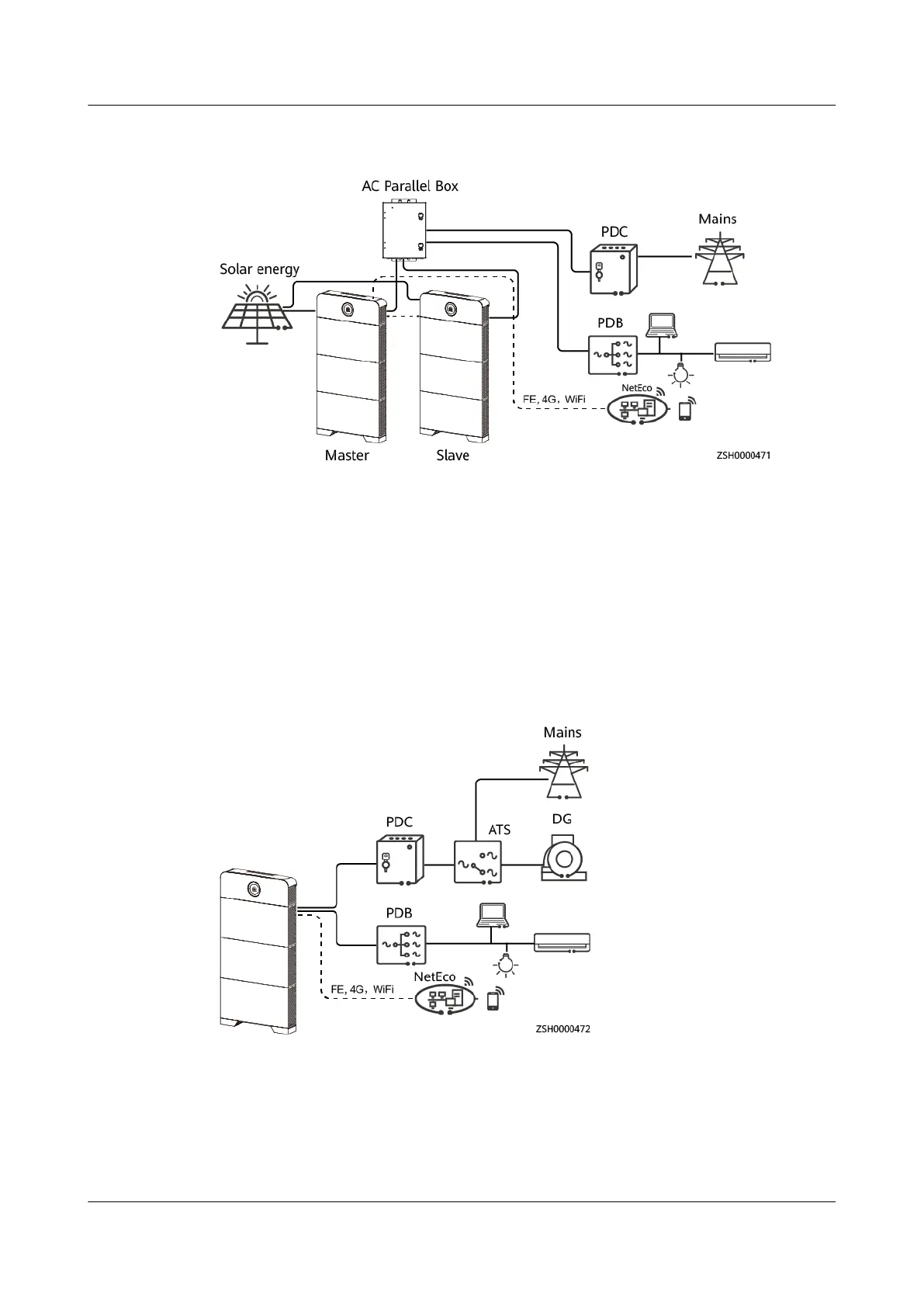

Figure 5-4 Grid scenario network diagram (multiple products connected in
parallel)
In the grid scenario, the power system works circularly as follows. The power
source preference sequence is grid > battery.
1. If grid power is available, grid power is supplied to loads and charges
batteries if batteries are not fully charged.
2. If grid power is unavailable, batteries supply power to loads.
5.3 Genset-Grid Hybrid Scenario
Figure 5-5 Genset-grid hybrid scenario network diagram (one product)
iSitePower-M (MAP05A1, MAB05B1)
User Manual 5 Application Scenarios
