Pin Signal Description

7 CANH Parallel high-speed CAN

8 CANL

Table 4-5 COM-BAT pin

denitions

Pin Signal Description

1 START+ Manual ON/OFF switch

2 START-

3, 4, 5, 6 Null -

7 CANH CAN bus high level

8 CANL CAN bus low level

Table 4-6 Pin denitions for the FE port

Pin Signal Description

1 TX+ Transmit data over FE.

2 TX-

3 RX+ Receive data over FE.

6 RX-

4, 5, 7, 8 Null -

4.2 Battery Module

The standard capacity is 5 kWh.

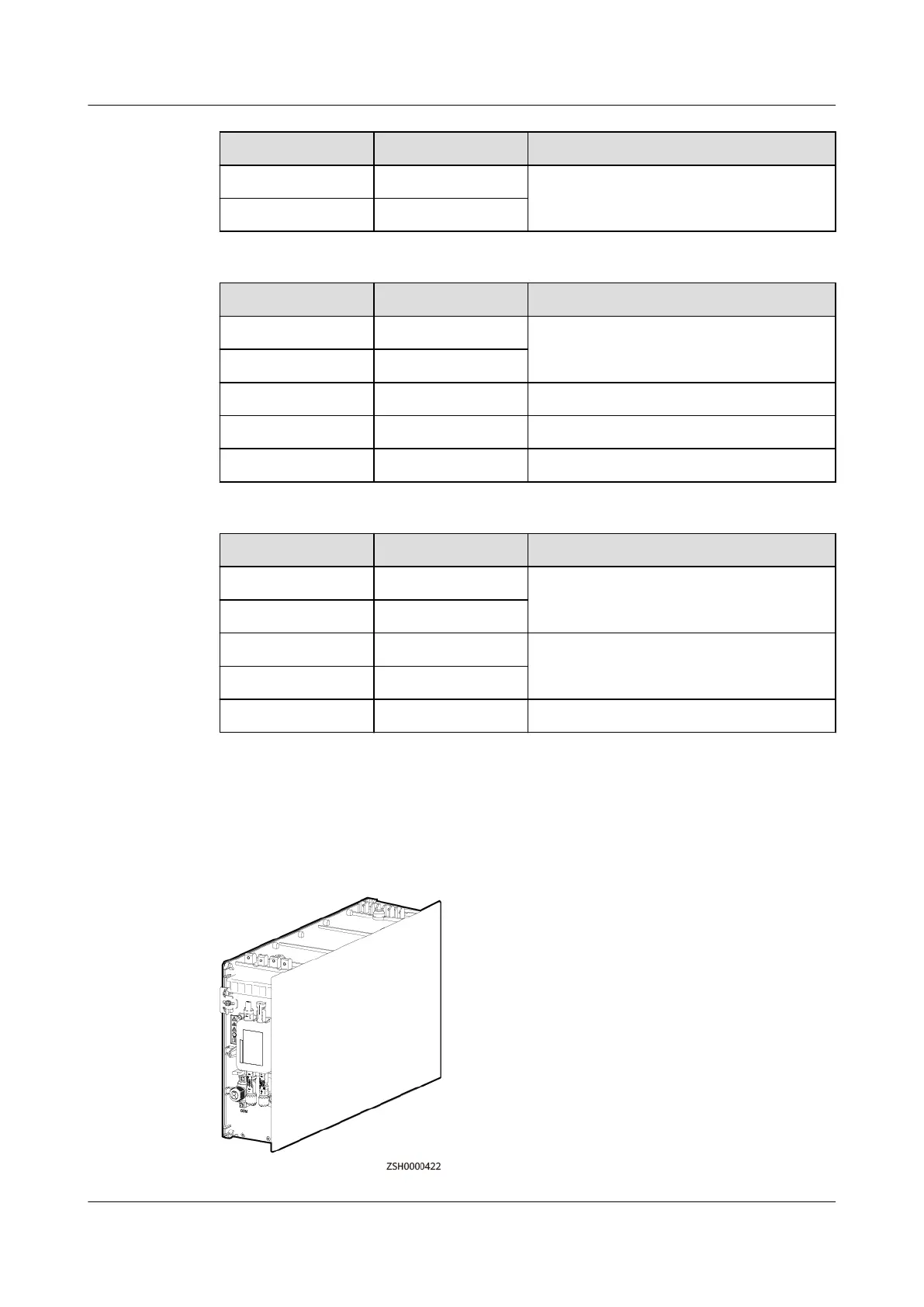

Figure 4-5 Appearance

iSitePower-M (MAP05A1, MAB05B1)

User Manual 4 Components

Other manuals for Huawei iSitePower-M

Questions and Answers:

Need help?

Do you have a question about the Huawei iSitePower-M and is the answer not in the manual?

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
