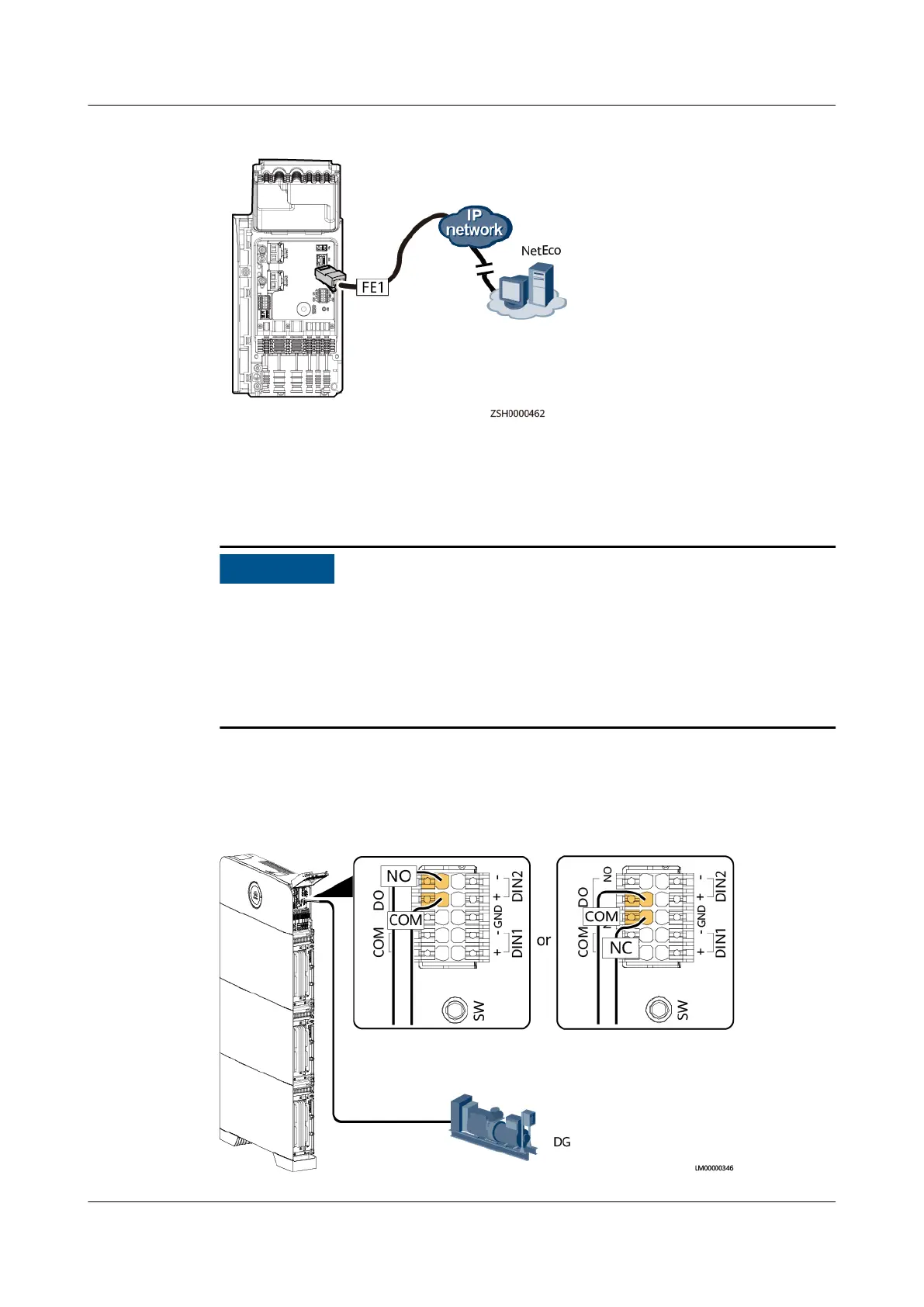

Figure 7-15 Installing a communications cable

----End

7.8 (Optional) Installing Genset Control Signal Cables

NO TICE

● For a genset that starts when the dry contact is open, connect the signal cable

to ports NO and COM. For a genset that starts when the dry contact is closed,

connect the signal cable to ports NC and COM.

● In the genset-grid scenario, the automatic transfer switch (ATS) must support

the grid detection function. Connect the grid detection cable of the ATS to the

dry contact port DIN1.

Procedure

Step 1 Install genset control signal cables.

Figure 7-16 Installing genset control signal cables (genset scenario)

iSitePower-M (MAP05A1, MAB05B1)

User Manual 7 Electrical Connection

Other manuals for Huawei iSitePower-M

Questions and Answers:

Need help?

Do you have a question about the Huawei iSitePower-M and is the answer not in the manual?

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
