Huawei iSitePower-M User Manual

----End

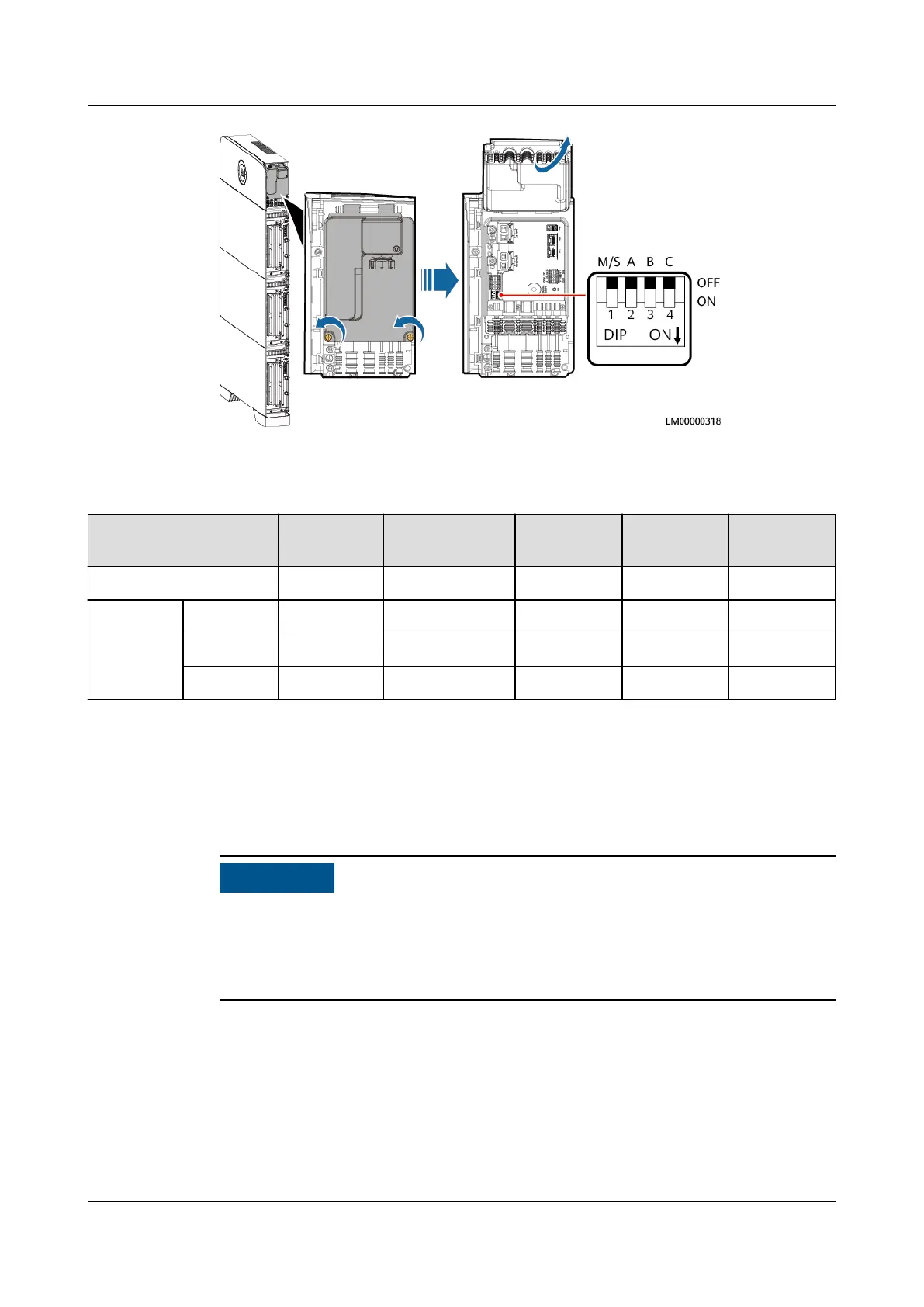

Table 6-1 DIP switch address
Scenario DIP Switch
Address
Pin 1 (M/S) Pin 2 (A) Pin 3 (B) Pin 4 (C)
Single 1 ON OFF OFF OFF
Parallel Master 1 ON OFF OFF OFF
Slave 1 2 OFF ON OFF OFF
Slave 2 3 OFF OFF ON OFF
6.4 (Optional) Installing Battery Modules for Capacity
Expansion
NO TICE
● A maximum of three battery modules can be installed on a bracket or base. If
more than three battery modules are required, add a bracket.
● For details about how to install brackets and modules, see 6.2 Installing a
Mounting Bracket and 6.3 Installing Modules.
Step 1 Remove the L-shaped plates from the top cover, rotate them by 180 degrees, and
install them back on the top cover.
iSitePower-M (MAP05A1, MAB05B1)
User Manual 6 System Installation
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 53

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
