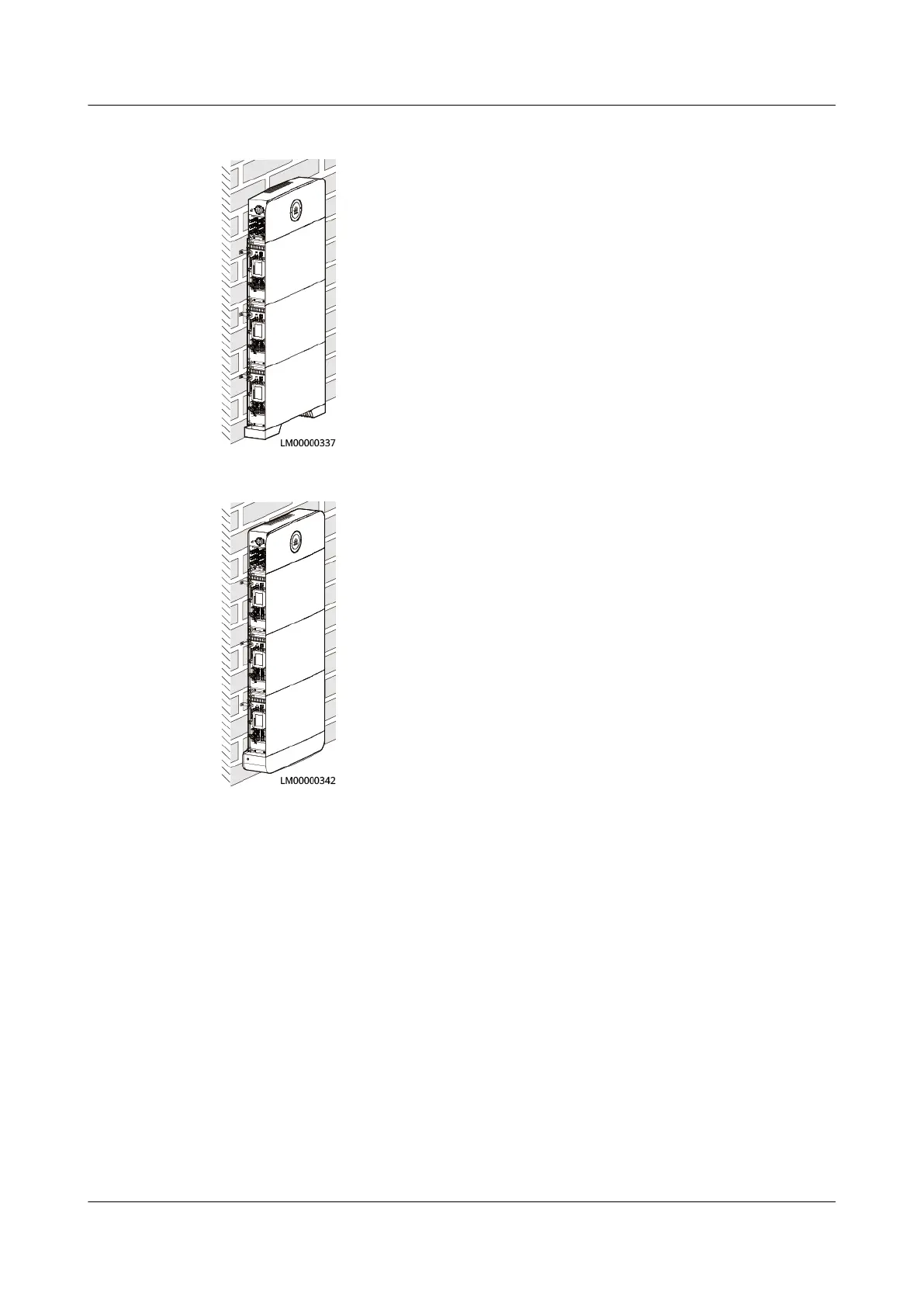

Figure 6-15 Ground mounting completed
Figure 6-16 Wall mounting completed
----End
Setting the DIP Switch
Step 1 Open the power module maintenance compartment and set the DIP switch
address.
iSitePower-M (MAP05A1, MAB05B1)
User Manual 6 System Installation
