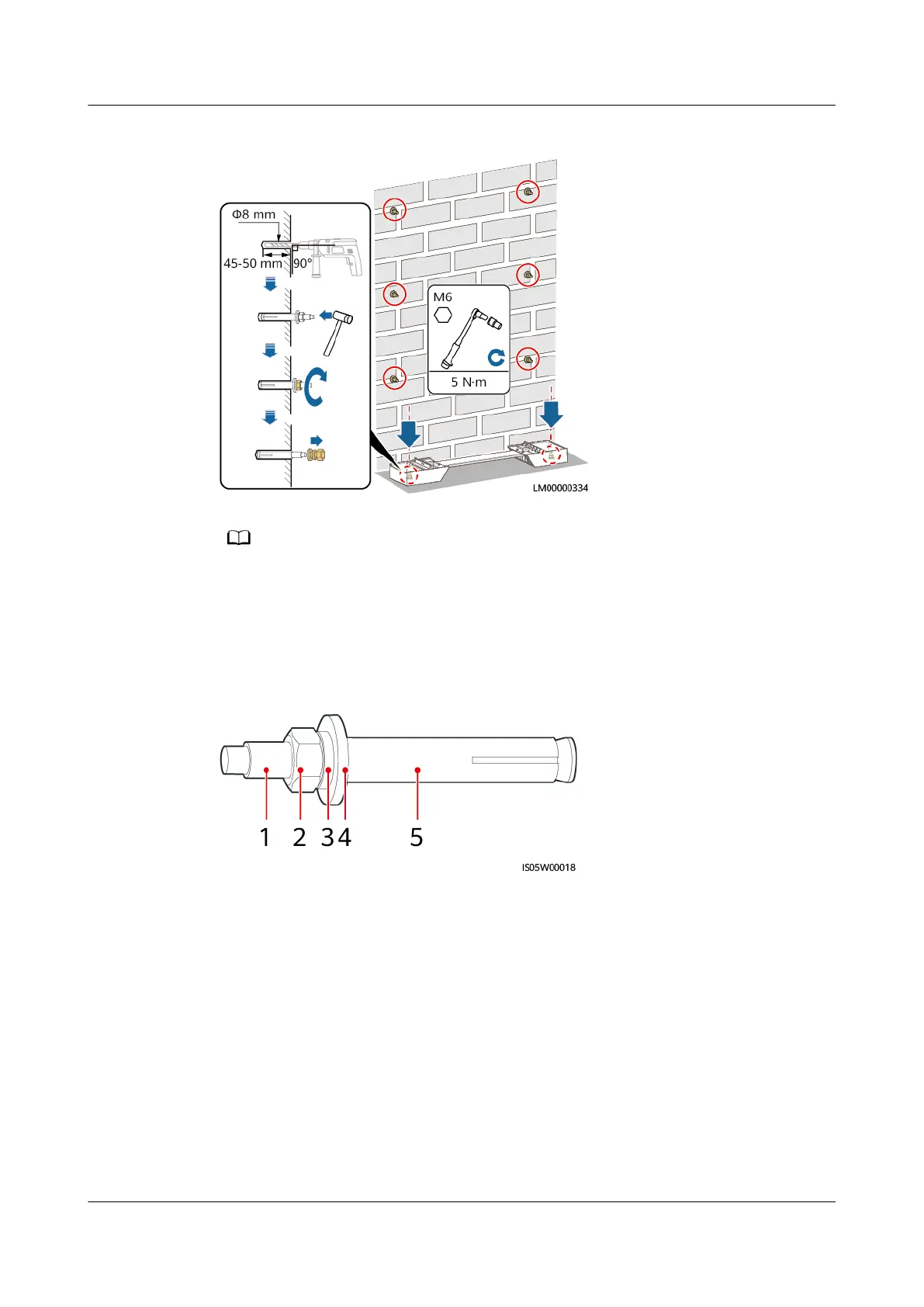

Figure 6-6 Installing expansion bolts
NO TE
Use the M6x60 expansion bolts delivered with the product to secure the mounting base. If
the length or quantity of the M6x60 expansion bolts cannot meet the installation
requirements, prepare M6 stainless steel expansion bolts by yourself. The expansion bolts
delivered with the product are used for solid brick walls and concrete grounds. If other
types of walls and grounds are used, ensure that the load bearing capacity requirements
(the weight of one battery module is 50 kg) are met and appropriate bolts are selected.
Figure 6-7 M6 expansion bolt structure
(1) Bolt
(2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
iSitePower-M (MAP05A1, MAB05B1)
User Manual 6 System Installation
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 47

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
