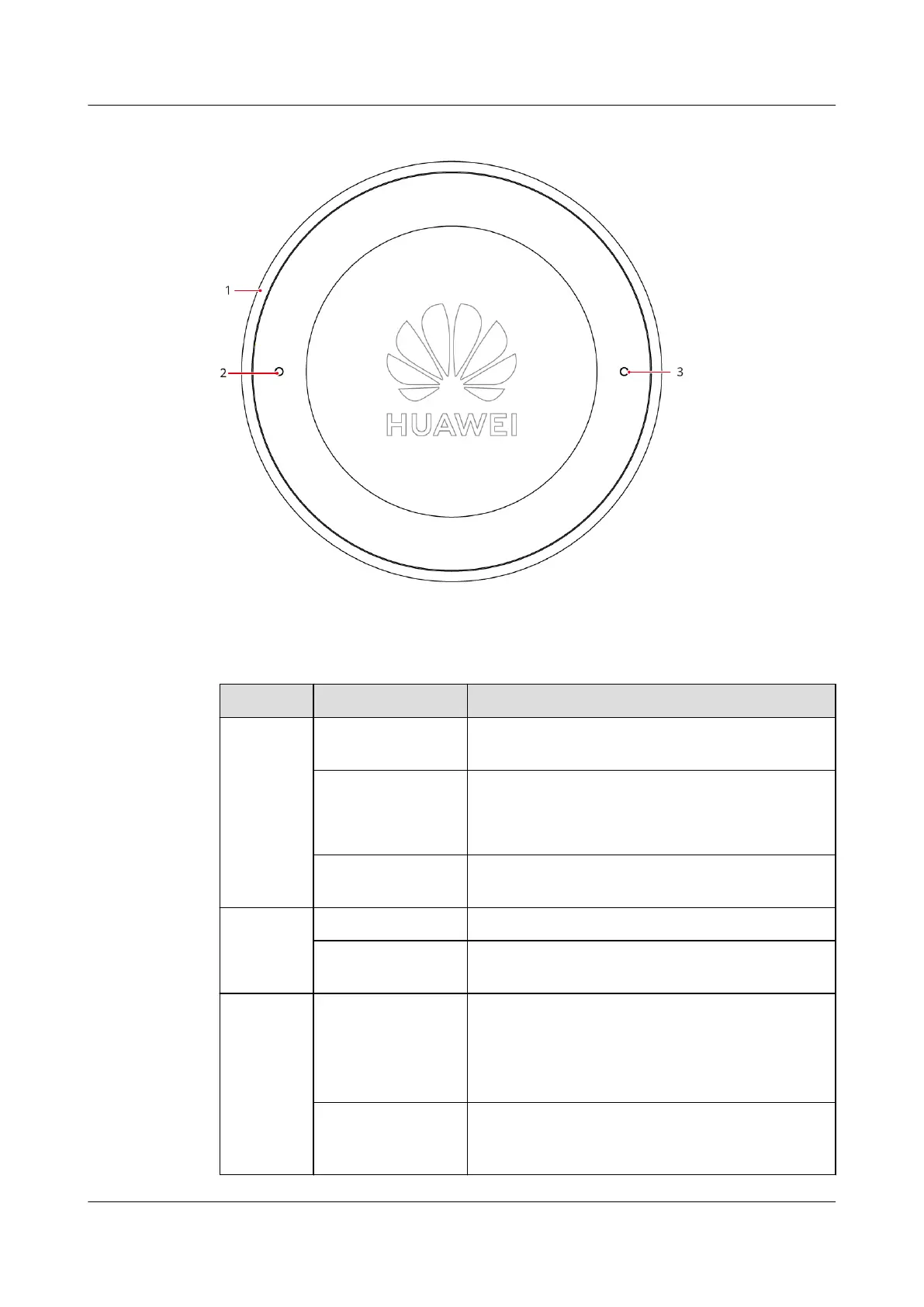

Figure 3-2 LED indicators
(1) Annular strip light (2) Running indicator (3) WiFi indicator
Table 3-2 Indicator description
Indicator
Status Description
Running
indicator
Steady on in
green
The power system is running properly.
O ● The power system is not running.
● The power system is faulty.
● The power system has no input current.
Steady on in red The power system is running properly, but an
alarm is generated.
WiFi
indicator
O The WiFi function is abnormal.
Steady on in
green
The WiFi function is normal.
Annular
strip light
Steady on in
green
Indicates the battery capacity and that the
product is discharging.
NOTE
A part of the strip light dims when every 10% of
battery power is consumed.
Blinking green at
an interval of
1.25s
Indicates that the product is being charging.
iSitePower-M (MAP05A1, MAB05B1)
