Requirements for the Wall and Ground
● Concrete walls and brick walls are recommended. Do not use sandwich panel
or wooden walls.
● The bearing capacity of the ground must be greater than or equal to 500
kg/m
2
.
Installation Dimensions
Reserve
sucient clearance around the product for installation and heat
dissipation.

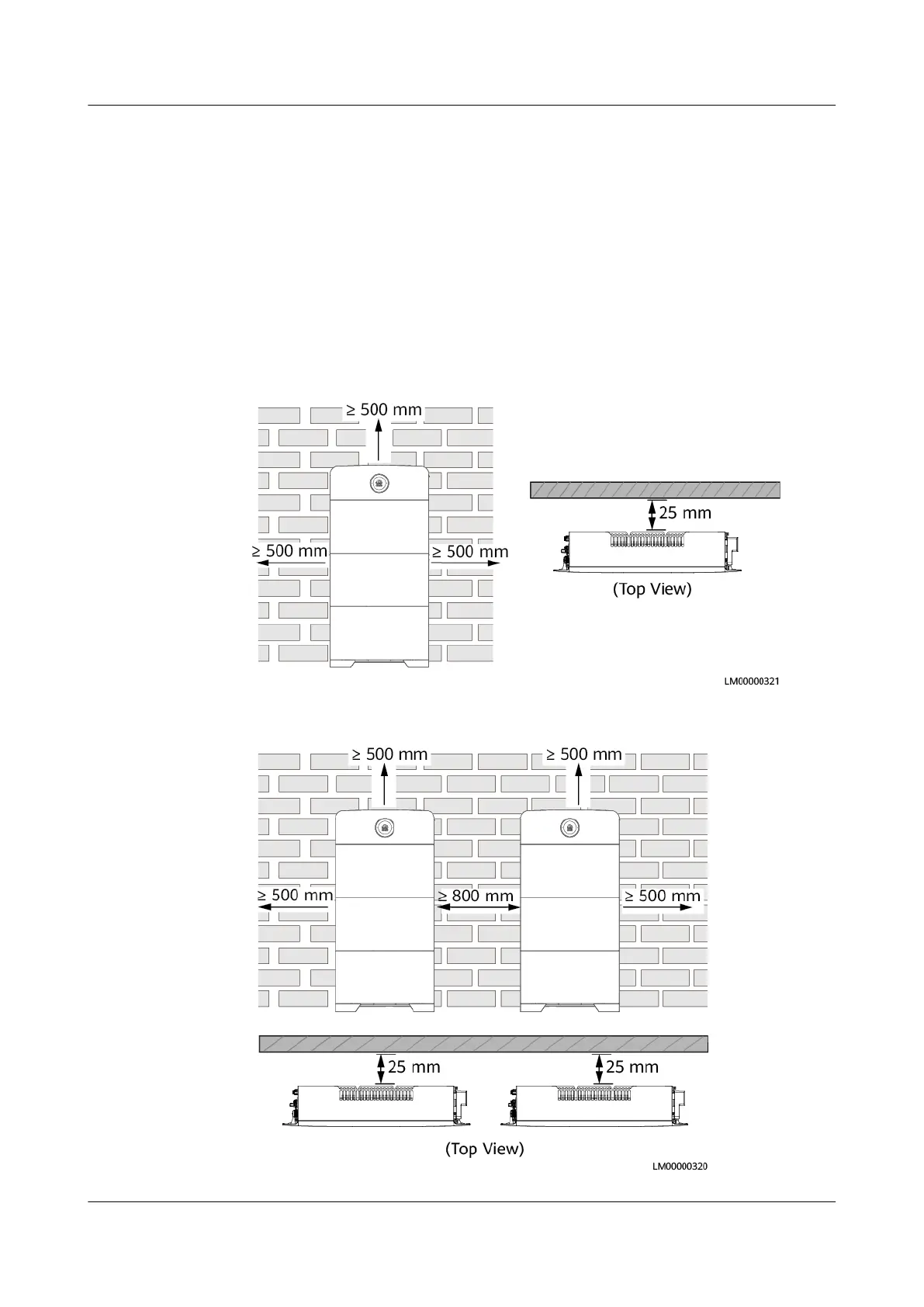

Figure 6-1 Installation dimensions for one product
Figure 6-2 Installation space for a parallel system or capacity expansion scenario
iSitePower-M (MAP05A1, MAB05B1)
User Manual 6 System Installation
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 44
