Step 2 Install expansion bolts.

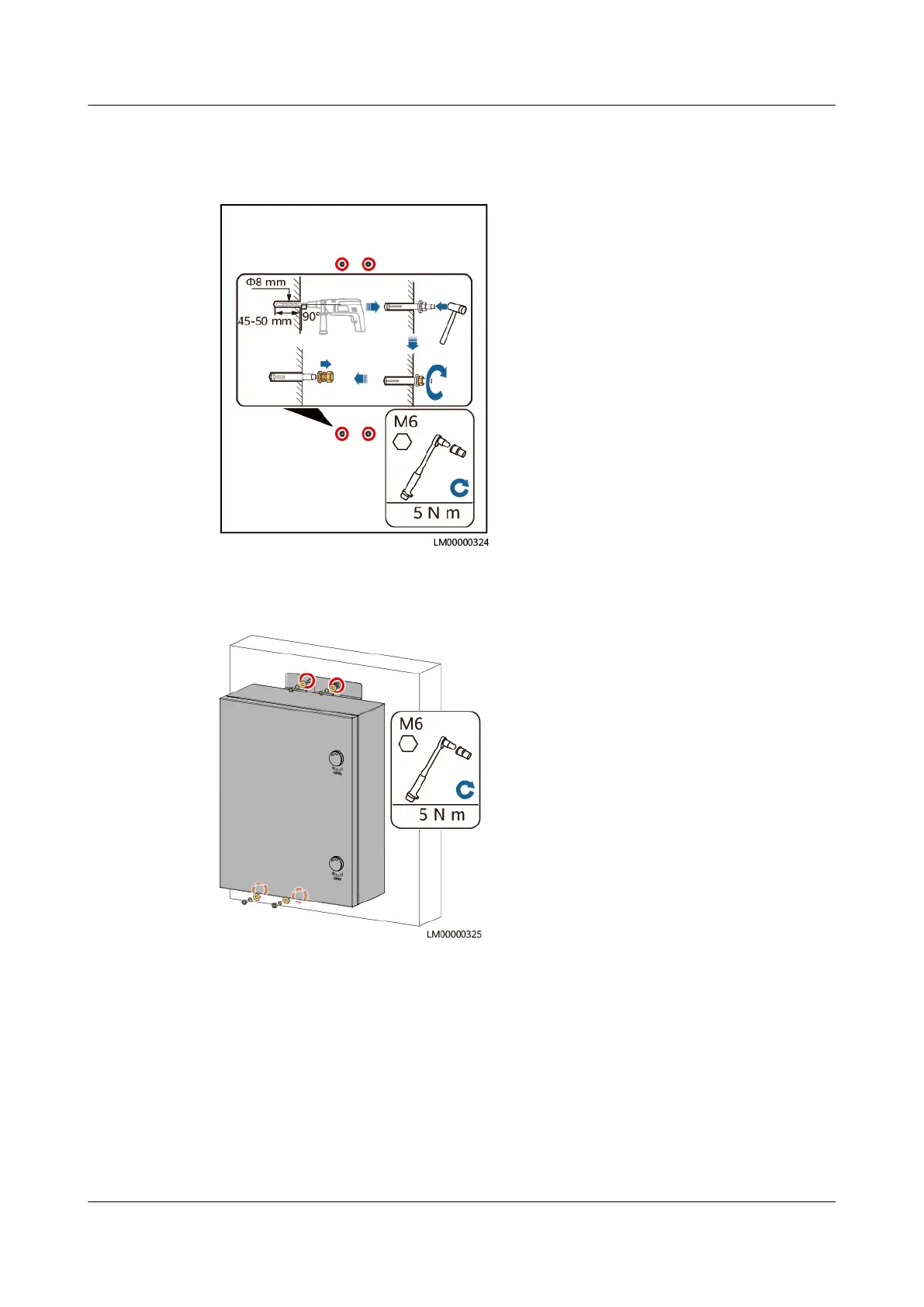

Figure 6-21 Installing expansion bolts
Step 3 Install the AC parallel box on the wall.
Figure 6-22 Installing the AC parallel box
----End
iSitePower-M (MAP05A1, MAB05B1)
User Manual 6 System Installation
Issue 02 (2021-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 56

Table of Contents

Other manuals for Huawei iSitePower-M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei iSitePower-M and is the answer not in the manual?

Huawei iSitePower-M Specifications

General IconGeneral
Storage Temperature-40°C to +70°C
Product NameHuawei iSitePower-M
TypePower System
Efficiency≥96%
Output Voltage-48 V DC
Operating Temperature-40°C to +55°C
Relative Humidity5% to 95% (non-condensing)
AltitudeUp to 4000 m
Cooling MethodForced Air Cooling
Protection FeaturesOvervoltage, undervoltage, overcurrent, short circuit, overtemperature
CertificationsCE, UL, TUV
Input Voltage Range85 V - 300 V AC
