2.2 Composition
The NetCol5000-A operates as follows: Fans absorb indoor hot air that then moves to the
evaporator with heat transmitted to the refrigerant. The refrigerant is discharged to the outdoor
unit by the compressor, releasing heat to the outdoor environment. The indoor unit and
outdoor condenser are interconnected and circulate using the refrigerant pipes in a sealing
manner. The NetCol5000-A consists of an indoor unit and an outdoor unit (the
NetCol500-A072 is used as an example), as shown in Figure 2-2.

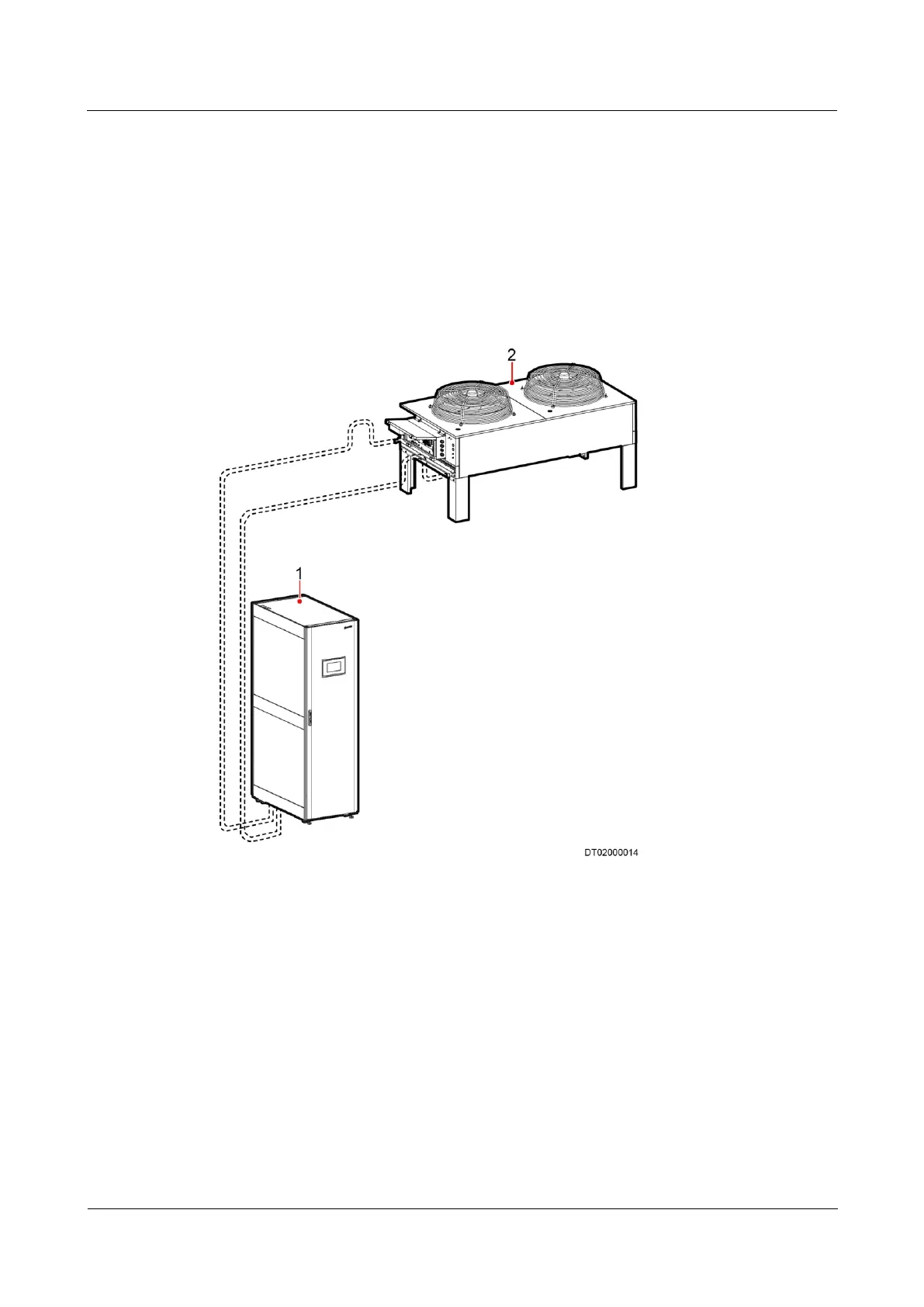

Figure 2-2 Product components
2.2.1 Indoor Unit
Appearance
Figure 2-3 shows the NetCol5000-A indoor unit.
