NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm)
Copyright © Huawei Technologies Co., Ltd.

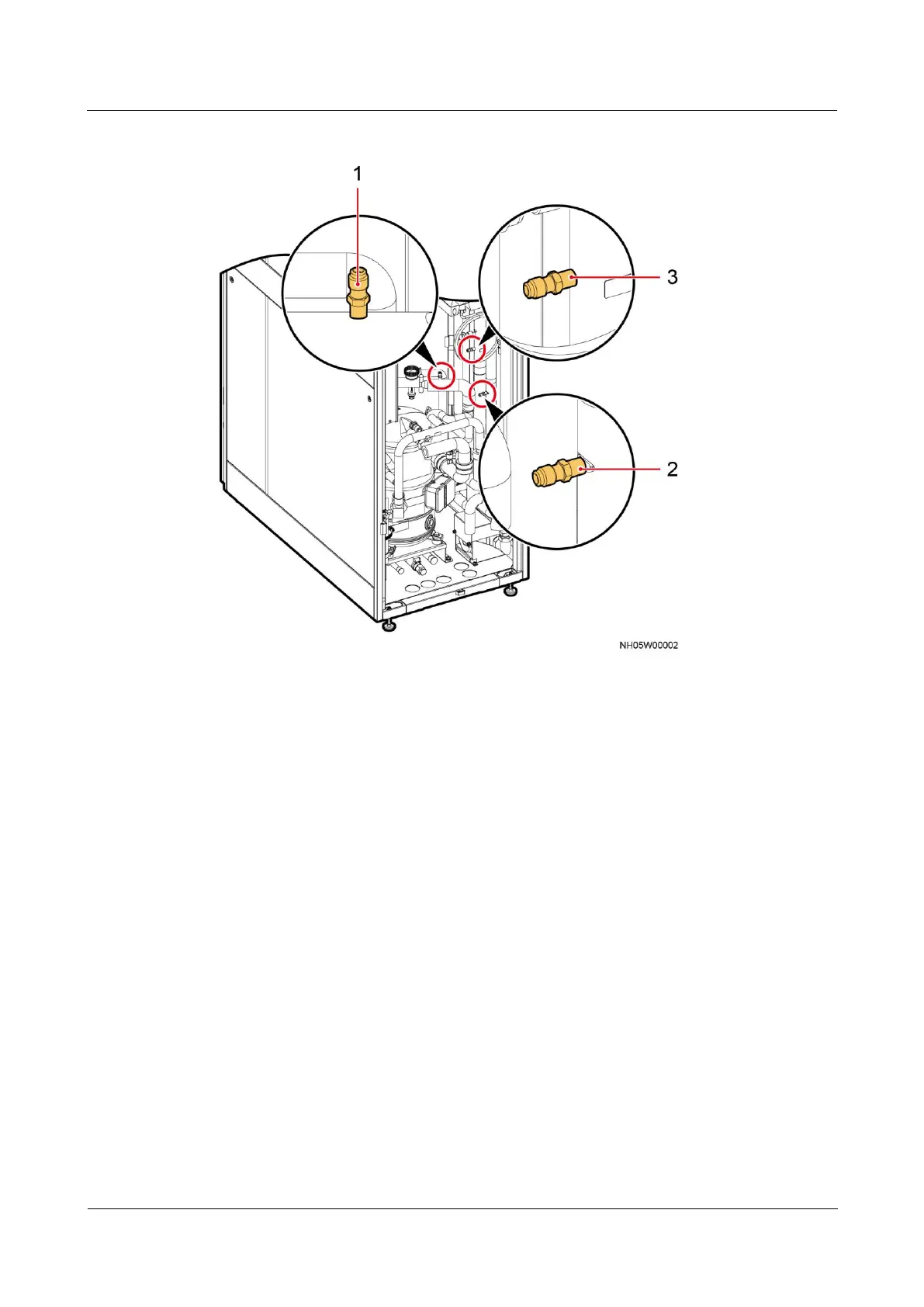

Figure 3-10 Needle valves
(1) Low-pressure needle
valve
(2) Liquid pipe needle
valve
(3) Discharge pipe needle
valve
----End
3.4 Removing the Transport Fixing Sheet Metals
3.4.1 Removing the Transport Fasteners from Floats
Context
The water tank is right under the evaporator and the floats (also called liquid level switches)
are on the right side of the water tank, as shown in Figure 3-11.
