NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm)
3 Installation Guide
Issue 13 (2019-01-15)
Copyright © Huawei Technologies Co., Ltd.
37

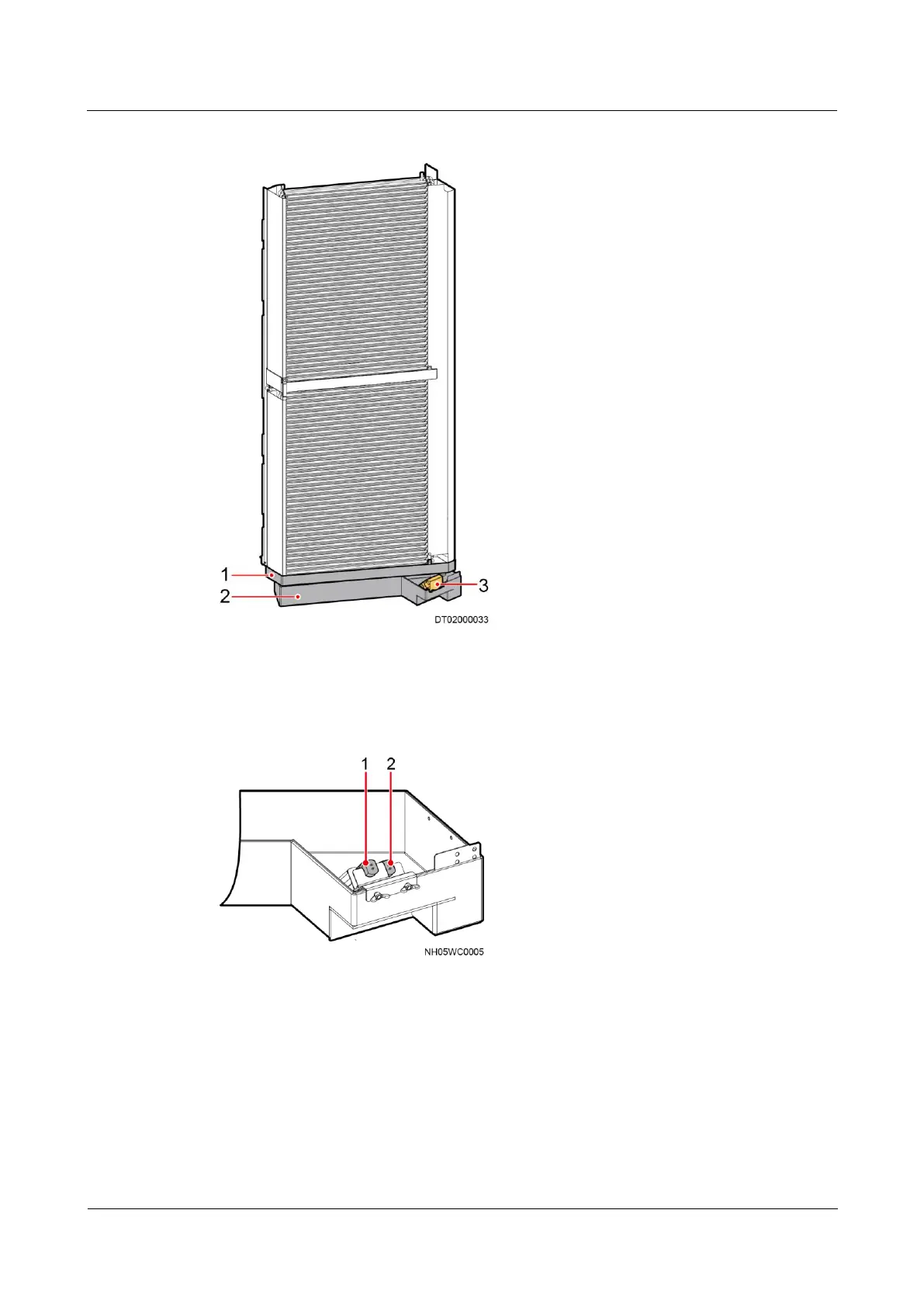

Figure 3-11 Position of the water tank
(1) Water pan
(2) Water tank
(3) High and low floats
Figure 3-12 Positions of high and low floats
(1) High floats
(2) Low floats
Procedure
Step 1 Loosen the two butterfly nuts from the high and low floats in the water tank, and remove the
transport fasteners for the floats.
Step 2 Secure the butterfly nuts.
