NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm)
Copyright © Huawei Technologies Co., Ltd.
3.6 Installing Indoor Units
3.6.1 Installing an Indoor Unit in Securing Mode
Prerequisites
A base or a raised floor is available in the room where the indoor unit is to be installed.
Context
Figure 3-16 and Figure 3-17 show the ports on the bottom and top panels of the indoor unit.

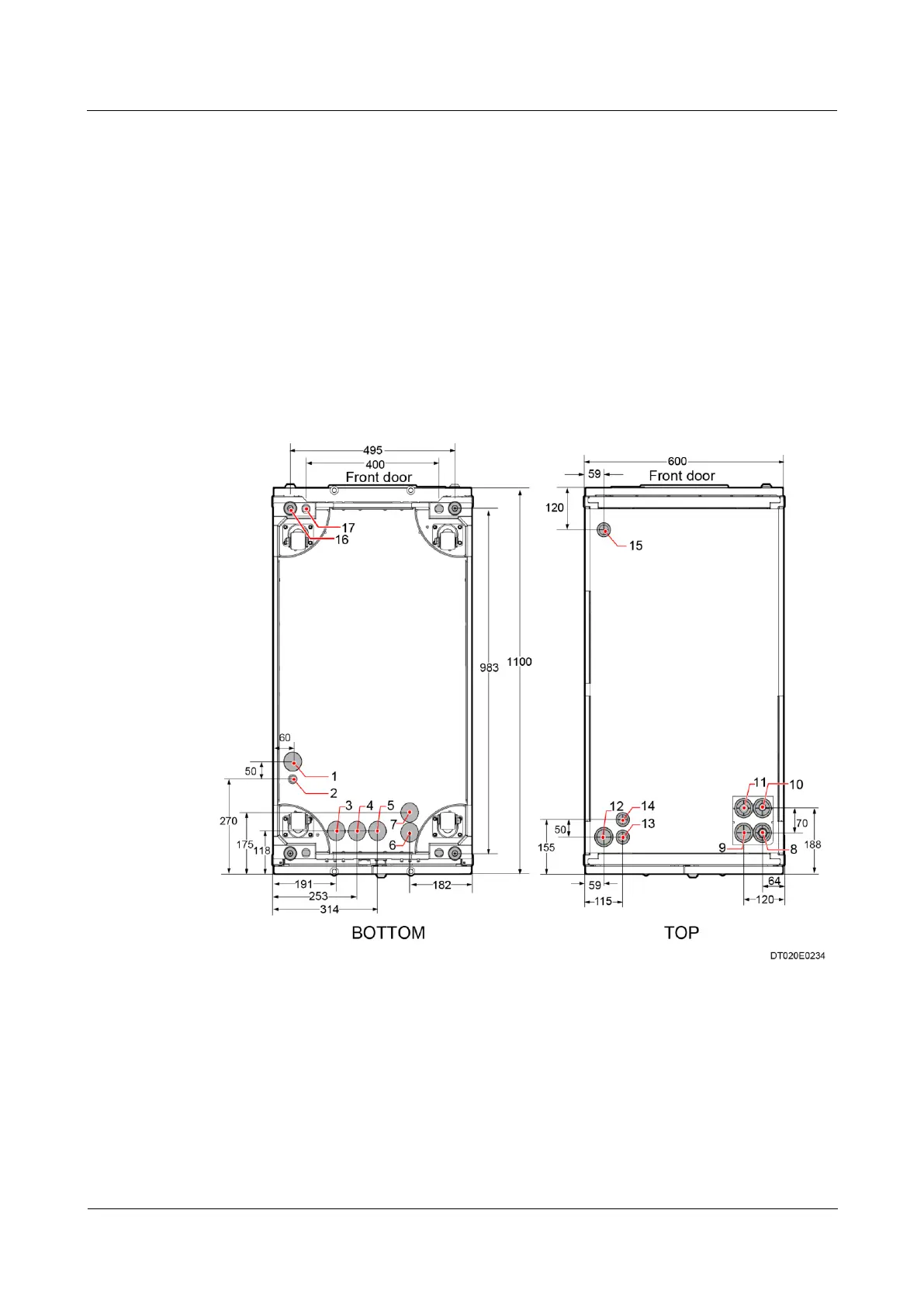

Figure 3-16 Ports on the bottom and top panels for the codes of 52272131 and 52272132 (unit:
mm)
