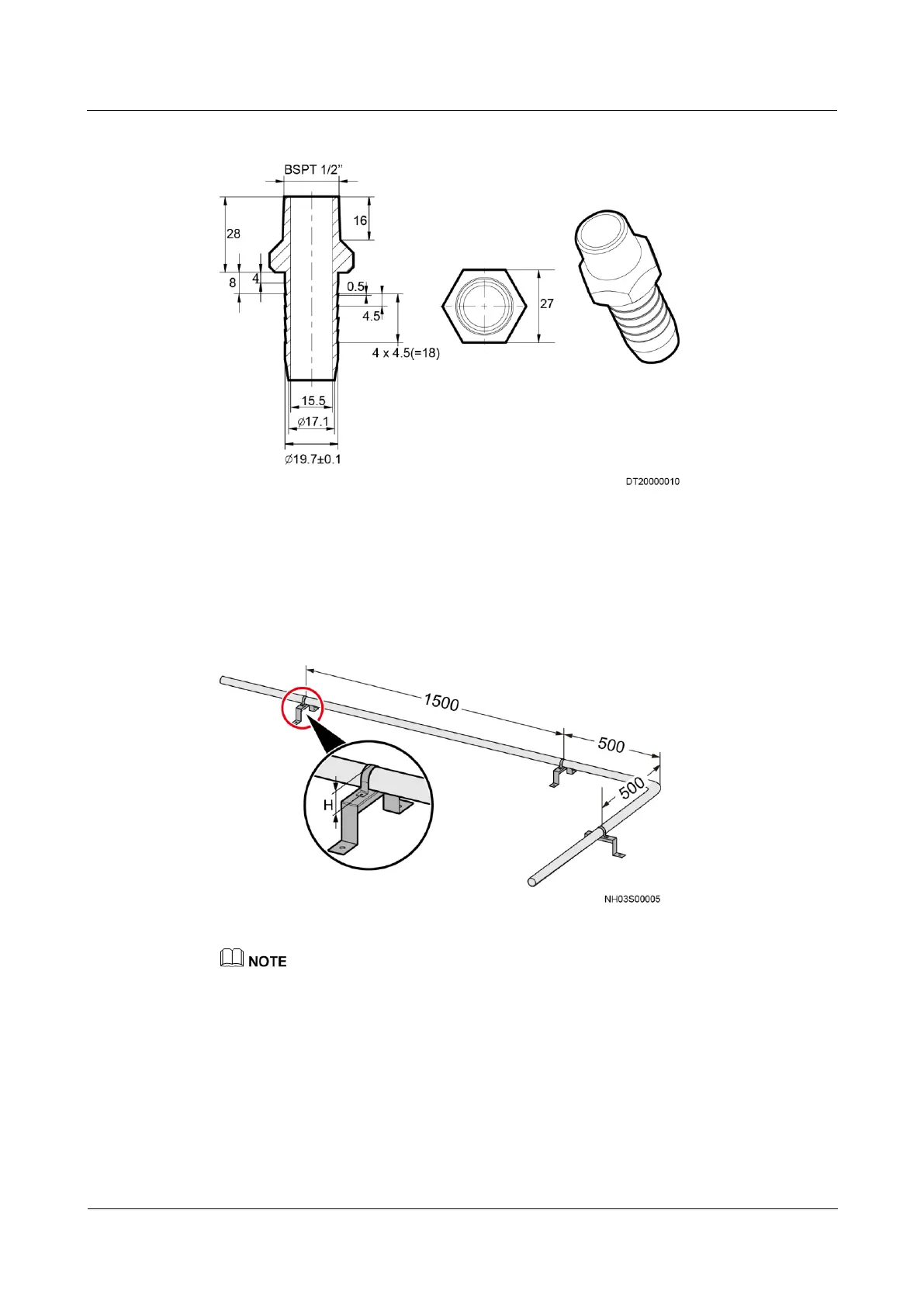

Figure 3-4 Pagoda connector (unit: mm)
3.1.2.5 Pipe Support
Figure 3-5 shows supports for refrigerant pipes and water pipes. The actual appearance of the
supports will be different based on onsite situations.
Figure 3-5 Pipe supports (unit: mm)
The height of the U-shaped pipe clamp is 5 mm less than the pipe diameter (including the thermal
insulation foam). Pipe supports are subject to engineering procurement.
It is recommended that pipe supports and pipe clamps be made of 304 stainless steel.
Install a support every 1500 mm for the straight sections of pipes, and 500 mm away from each
bending point in turning sections.
3.1.2.6 Cables
Table 3-10 describes the cables to be connected onsite. Signal cables should be routed through
a protective tube.
