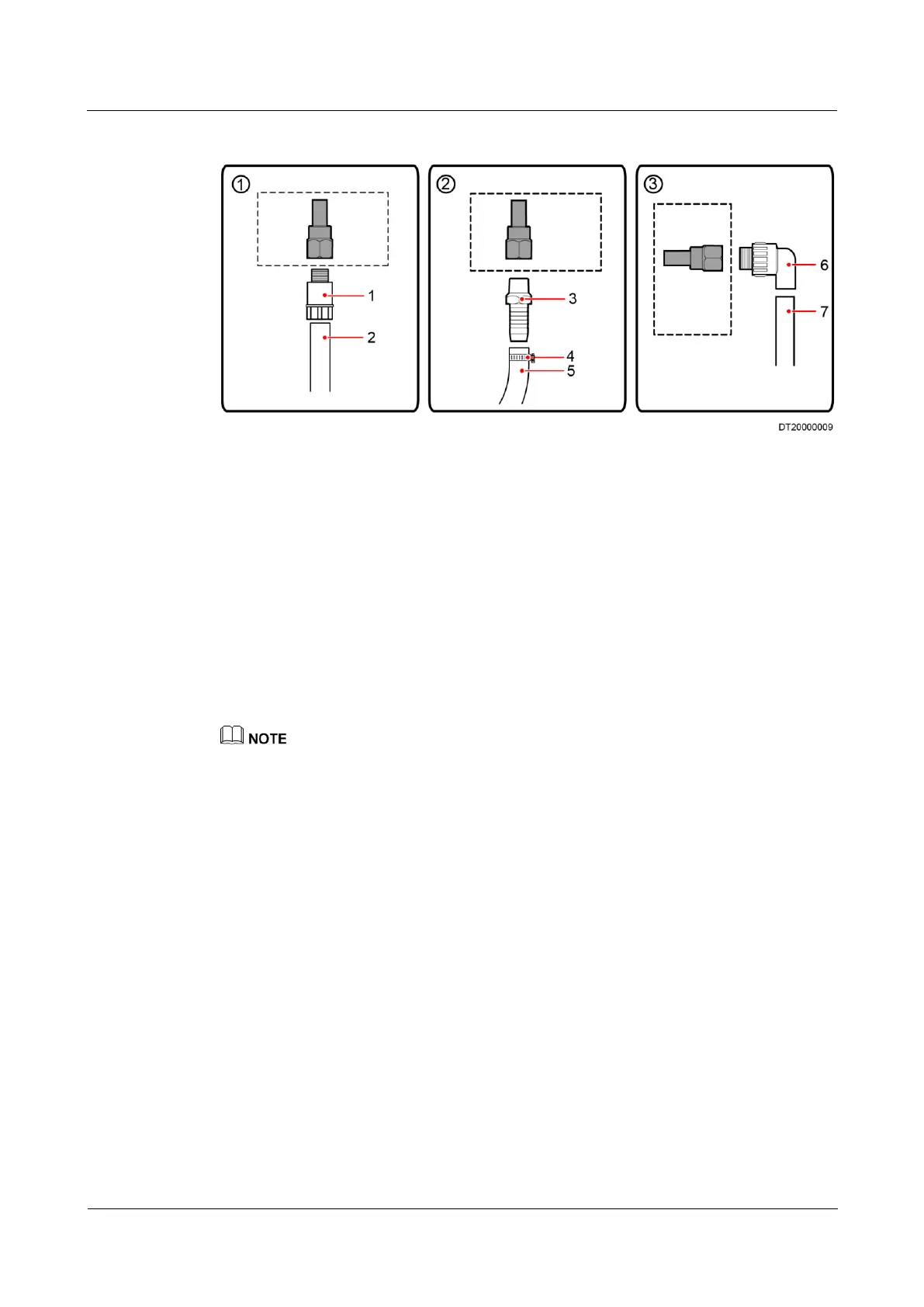

Figure 3-3 Connecting water pipes
(1) Conversion adapter: BSPT 1/2 inch,
connected to a rigid pipe with external
threads
(2) Rigid pipe: made of PP-R, C-PVC, or
other materials
(3) Pagoda connector: as shown in Figure
3-4
(5) Hose: a hose with an inner diameter of
3/4 inch and made of EPDM or other
materials
(6) Conversion adapter: BSPT 1/2 inch,
connected to a rigid pipe with external
threads
(7) Rigid pipe: made of PP-R, C-PVC, or
other materials
Components inside the dash-line boxes are ports on the equipment, with the dimension of BSPP 1/2 inch
and internal threads.
