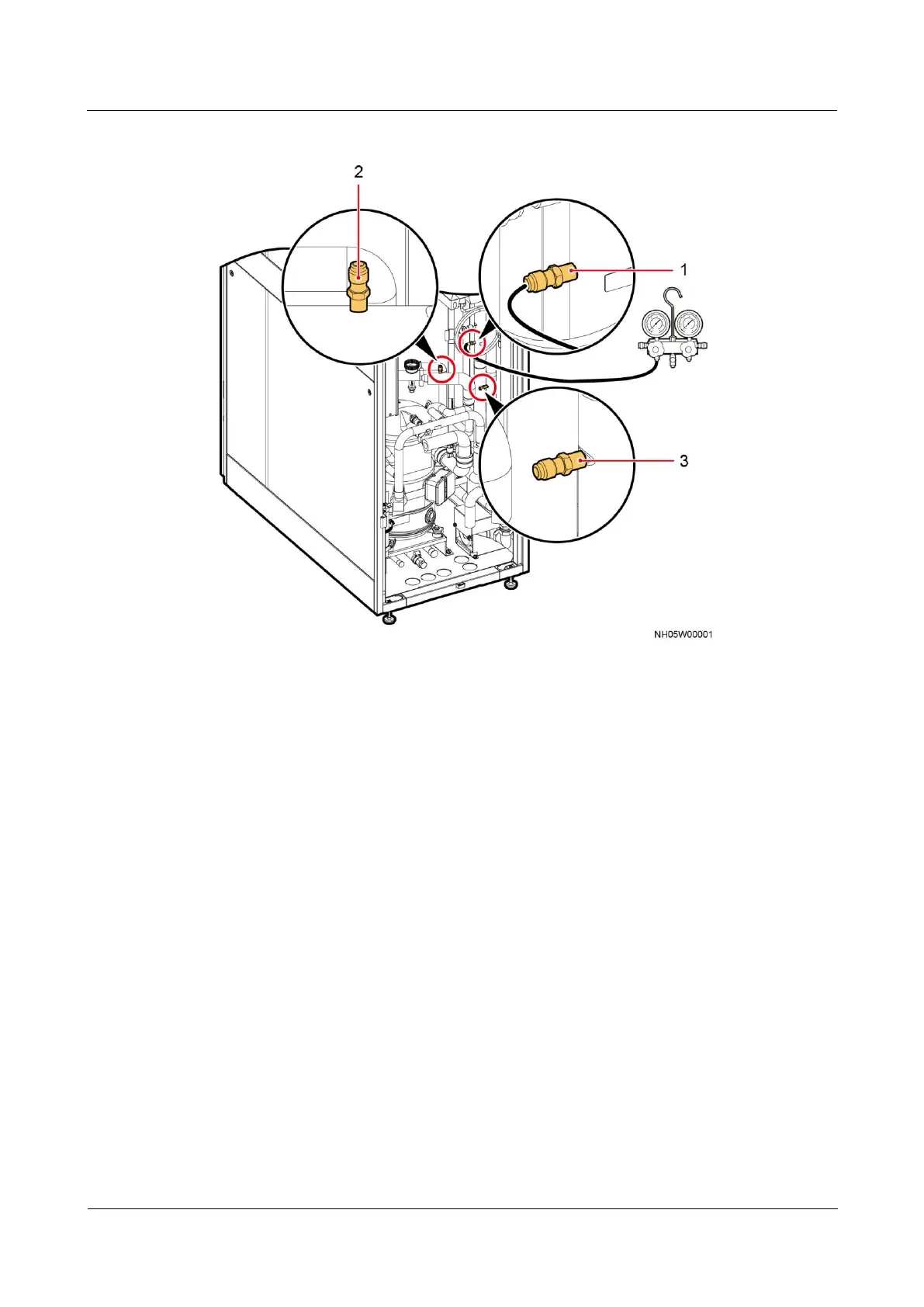

Figure 3-23 Exhausting nitrogen
(1) Discharge pipe needle
valve
(2) Low-pressure needle
valve
(3) Liquid pipe needle valve
Step 2 Open the pressure gauge valve. Loud noises of air flow are generated at first and then
disappear gradually.
Step 3 After the air is exhausted, remove the pressure gauge and install the valve bonnet.
Step 4 Exhaust nitrogen from liquid pipe low-pressure needle valve by following Step 1 to Step 3.
----End
3.9 Connecting Pipelines
