Huawei NetCol5000-A-035 User Manual

NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm)
4 ACC Introduction
Issue 13 (2019-01-15)
Copyright © Huawei Technologies Co., Ltd.
81

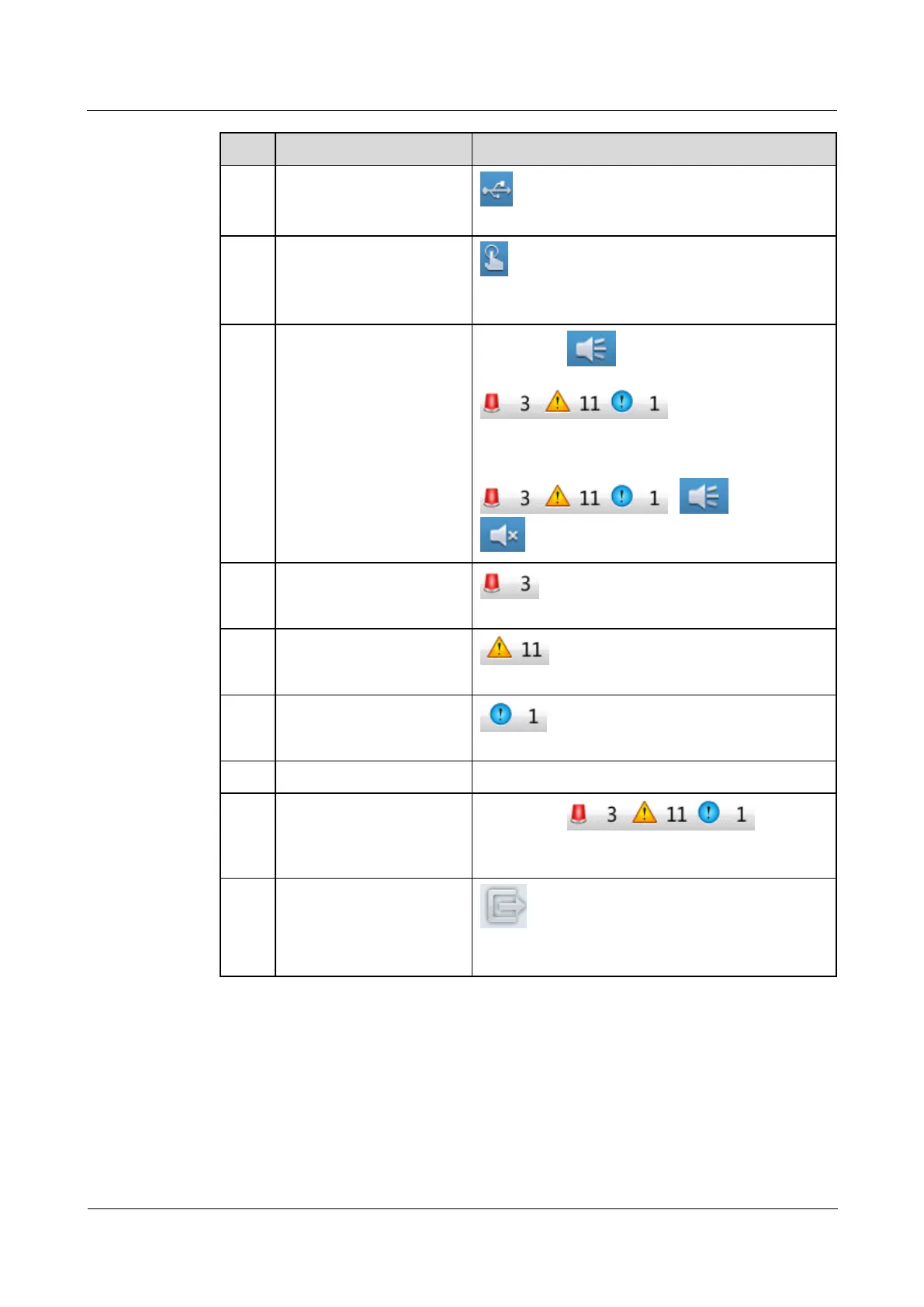

No.
Items
Note
2
USB status
in the status bar indicates that the USB flash
drive is successfully connected to the display panel.
3
Diagnostic mode
in the status bar indicates that the smart cooling
product is in diagnostic mode. Click to icon to exit
from the diagnostic mode.
4
The buzzer status
You can tap in the status bar to quickly
mute the buzzer. Or, you can tap
in the alarm bar to
enter the active alarm screen to mute the buzzer. If
you are already in the alarm screen, the buzzer
cannot be muted even if you tap
. is changed to
after the buzzer is muted.
5
The current critical alarm
signals and their quantity
refers to the current critical alarm signals
and their quantity.
6
The current major alarm
signals and their quantity
refers to the current major alarm signals
and their quantity.
7
The current warning
signals and their quantity
refers to the current warning alarm
signals and their quantity.
8
The status bar
N/A
9
The alarm bar
You can tap in the
alarm bar to enter the active alarm screen that
displays all active alarms.
10
Logout button
indicates that you have logged in to the
system as Admin, Engineer, or Operator, and can
tap the icon to log out.
4.2 Menu Hierarchy
Figure 4-2 shows the hierarchy of the controller menu.
