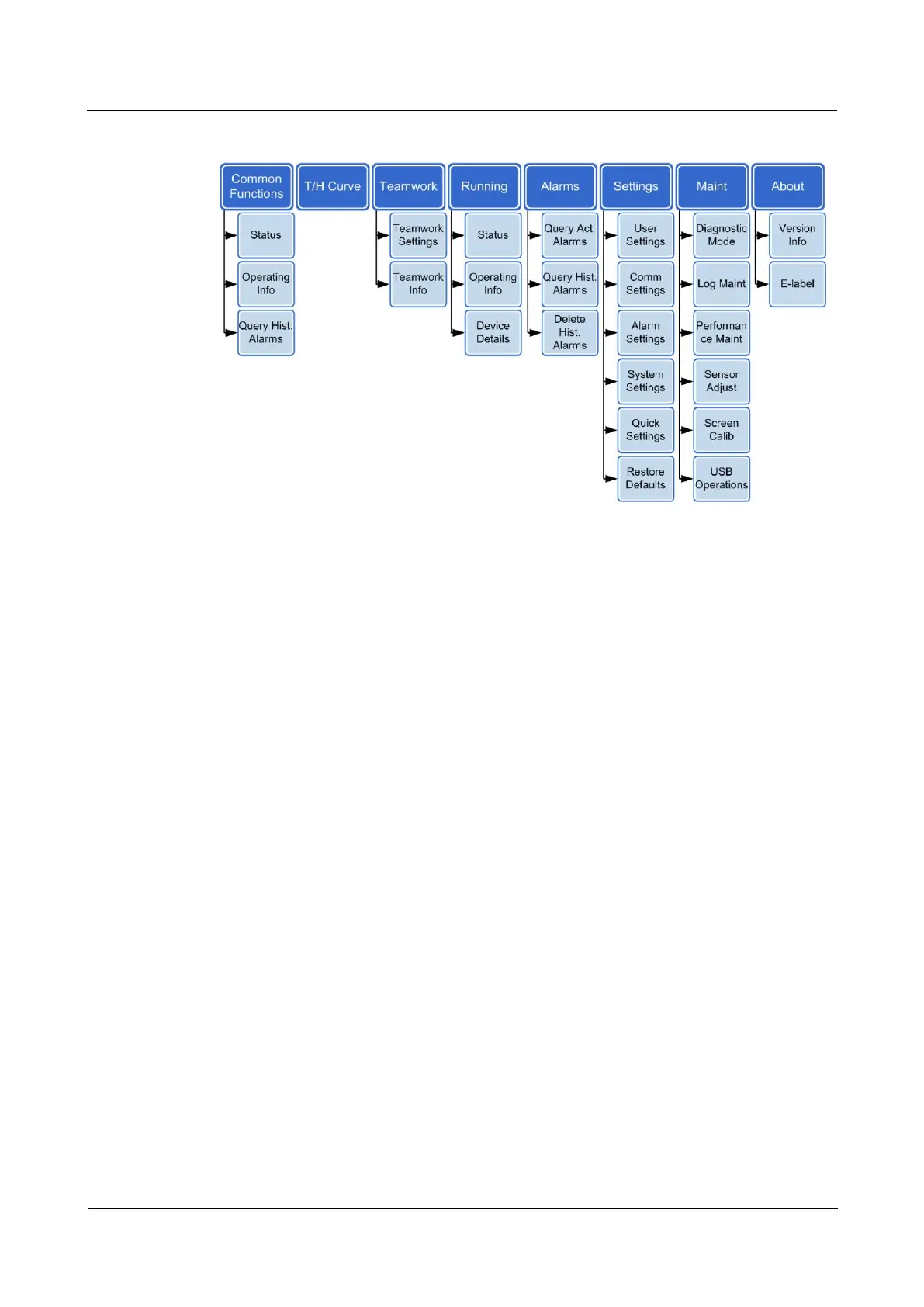

Figure 4-2 Hierarchy of the controller menu
The functions of the menus are described as follows:

Common Functions
Indicates the component status, system parameters, and historical alarms of the smart
cooling product.

T/H Curve
Indicates curves for recent (time optional) temperature and humidity changes.

Teamwork
Sets and checks teamwork control information based on the requirements of the smart
cooling product.

Running
Checks the component status, system parameters, and the name, control and operating
status, and other related information of the components in the current smart cooling
product system.

Alarms
Checks the active and historical alarms of the smart cooling product, and deletes the
historical alarms.

Settings
Sets the involved parameters for the operation of the smart cooling product.

Maint
Checks or deletes the logs or component total runtime/run factor, manually diagnoses
each component, calibrates the sensor and touch screen, exports data, and upgrades the
system.

About
Checks the model, manufacturer, monitoring version, detail version information, and
electronic label of the ACC.
