Ports

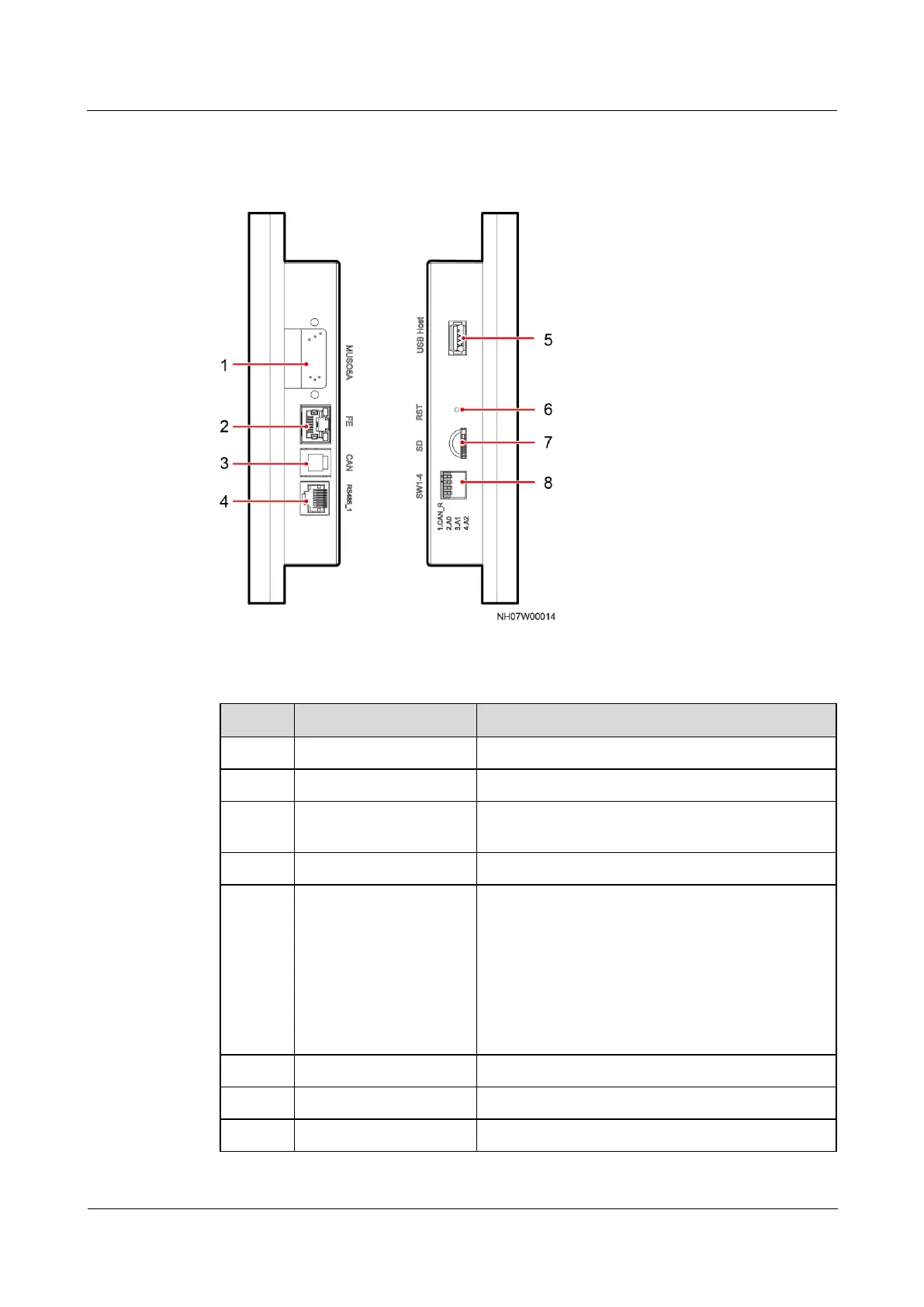

Figure 2-5 Controller side ports
Table 2-3 Ports
No.
Name
Note
1
MUS05A
Reserved
2
FE (fast Ethernet)
communications port
3
CAN
communications port for the main control board and
LCD
4
RS485_1
Reserved
5
USB Host
After installing the WiFi module, connect the WiFi
module to the smart cooling product using the app
on the mobile phone to obtain the initial startup
password (for V200R001C20 and above software
versions).
Insert the USB flash drive, import and export the
configuration file, export run logs, and upgrade
software.
6
RST
restart switch for the display
7
SD
Reserved
8
SW1-4
Dual in-line package (DIP) switch on LCD
