Commissioning
Chapter 2 OPERATION MANUAL
V1.3.0en/06.07.15//14.06 Liability for errors and misprints excluded. CC®
▪ Transient surges, as would normally occur in the power supply system
▪ Applicable degree of soiling: 2.
▪ Surge category II.
Observe page 20 of section »Exemplary illustrations of the cooling variants«.
Side of the
temperature
control unit

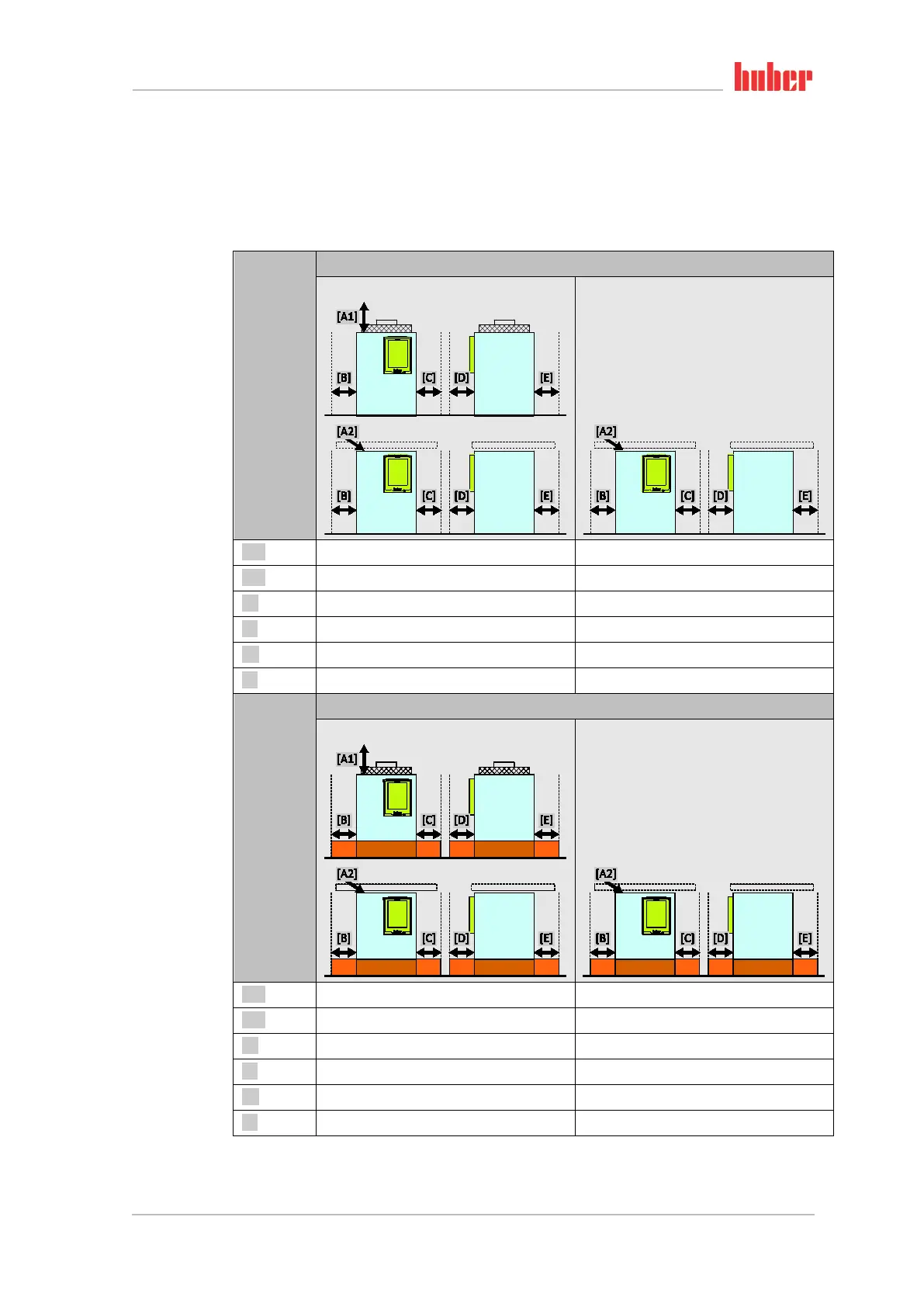

Clearance to the temperature control unit in cm
Air cooling
Water cooling
[A1] Top Air outlet on top of unit: free standing –
[A2] Top can be located under a bench can be located under a bench
[B] Left min. 20 min. 10
[C] Right min. 20 min. 10
[D] Front min. 20 min. 10
[E] Rear min. 20 min. 20
Side of the
temperature
control unit
Clearance to the temperature control unit in cm (for operation in a bath)
Air cooling
Water cooling
[A1] Top Air outlet on top of unit: free standing –
[A2] Top can be located under a bench can be located under a bench
[B] Left min. 20 min. 20
[C] Right min. 20 min. 20
[D] Front min. 20 min. 20
[E] Rear min. 20 min. 20
Wall clearance to
temperature control
unit
