2.11.2 Connection via direct wiring
Connection/adjustment to the power supply not carried out by an electrician
MORTAL DANGER FROM ELECTRIC SHOCK
 Have the connection/adjustment to the power supply carried out by an electrician.
Damaged power cable/power cable connection
MORTAL DANGER FROM ELECTRIC SHOCK
 Do not start up the temperature control unit.
 Isolate the temperature control unit from the power supply.
 Have the power supply cable/power supply connection replaced and inspected by an electri-
cian.
 Do not use a power cable that is longer than 3 m.
Incorrect power supply connection
DAMAGE TO THE TEMPERATURE CONTROL UNIT
 Your building's existing power supply voltage and frequency must match the data provided on
the rating plate of the temperature control unit.
2.11.3 Cooling/heating baths: Power cable connection of K6
The cooling/heating bath K6 can only be used in combination with the supplied hanger thermo-
stat.
There are two possibilities for the connection with the building’s power supply.
1. Connection with two separate power supplies (valid for 100 V, 115 V and 230 V versions)
The cold bath and the hanger thermostat are each separately connected to the building’s power
supply.
2. Connection with only one power supply (only valid for 230 V version)
Only the cooling bath is connected to the building’s power supply, while the hanger thermostat is
connected to the cooling bath for a supply of power.
PROCEDURE
Connect the cooling bath and the hanger thermostat with TWO separate power supplies (valid for
100 V, 115 V and 230 V versions)
 Connect the >power supply< [35] on the hanger thermostat with the building’s power supply.
The cable required is included.
 Connect the >power supply< [35] on the cooling bath with the building’s power supply. The
cable required is included.

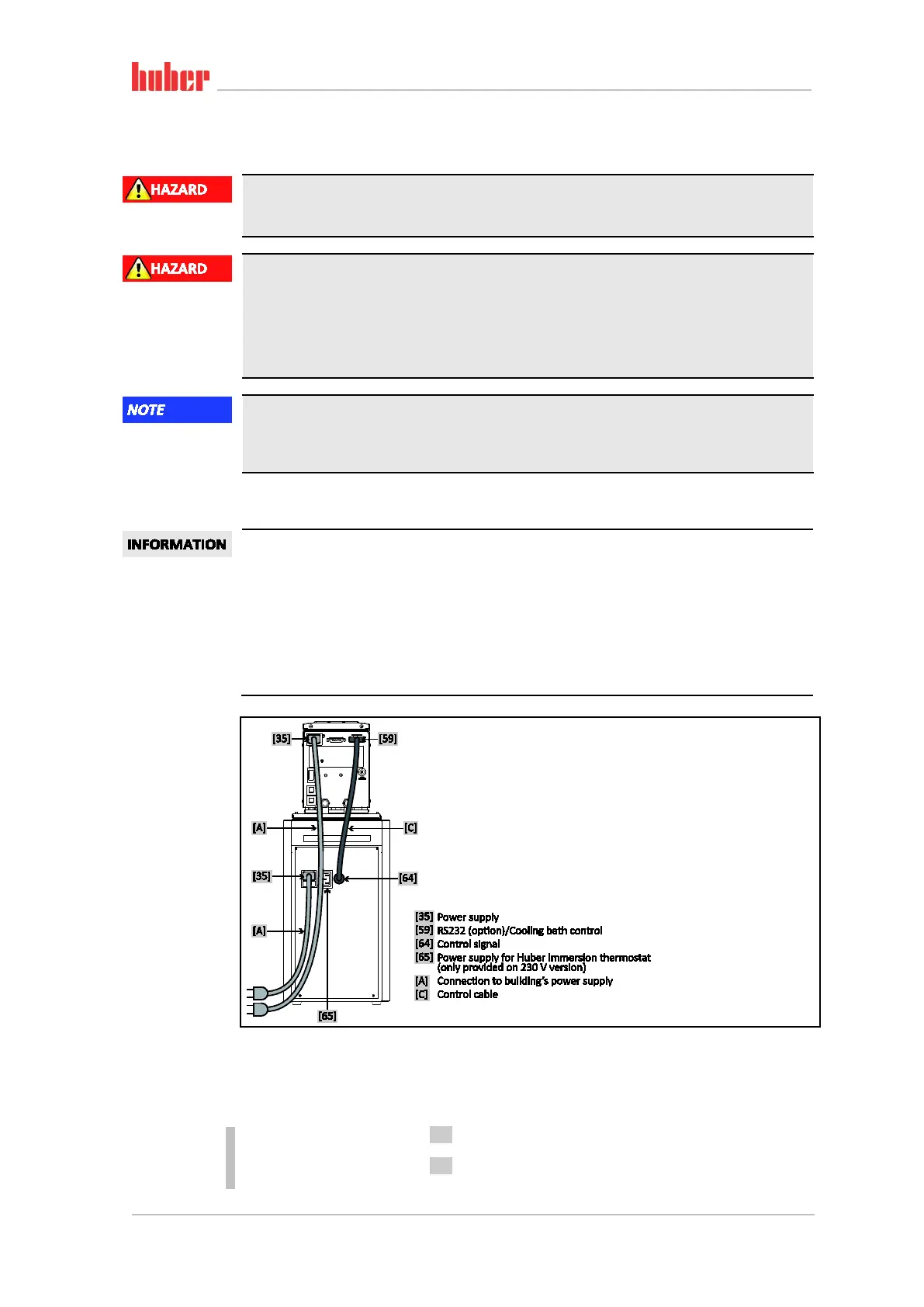

Installing a power
cable connection (K6) -
two power supplies
from the building
(valid for 100 V, 115 V
and 230 V versions)
