Huber Pilot ONE - Utilization as a Cooling;Heating Baths (with Hanger Thermostat)

Commissioning
OPERATION MANUAL Chapter 2
CC® Liability for errors and misprints excluded. V1.3.0en/06.07.15//14.06
32
2.11.4.2 Utilization as a cooling/heating baths (with hanger thermostat)
There are two possibilities for the connection with the building’s power supply.
1. Connection with two separate power supplies (valid for 100 V, 115 V and 230 V versions)
The cold bath and the hanger thermostat are each separately connected to the building’s power
supply.
2. Connection with only one power supply (only valid for 230 V version)
Only the cooling bath is connected to the building’s power supply, while the hanger thermostat is
connected to the cooling bath for a supply of power.
PROCEDURE
Connect the cooling bath and the hanger thermostat with TWO separate power supplies (valid for
100 V, 115 V and 230 V versions)
 Connect the >power supply< [35] on the hanger thermostat with the building’s power supply.
The cable required is included.
 Connect the >power supply< [35] on the cooling bath with the building’s power supply. The
cable required is included.

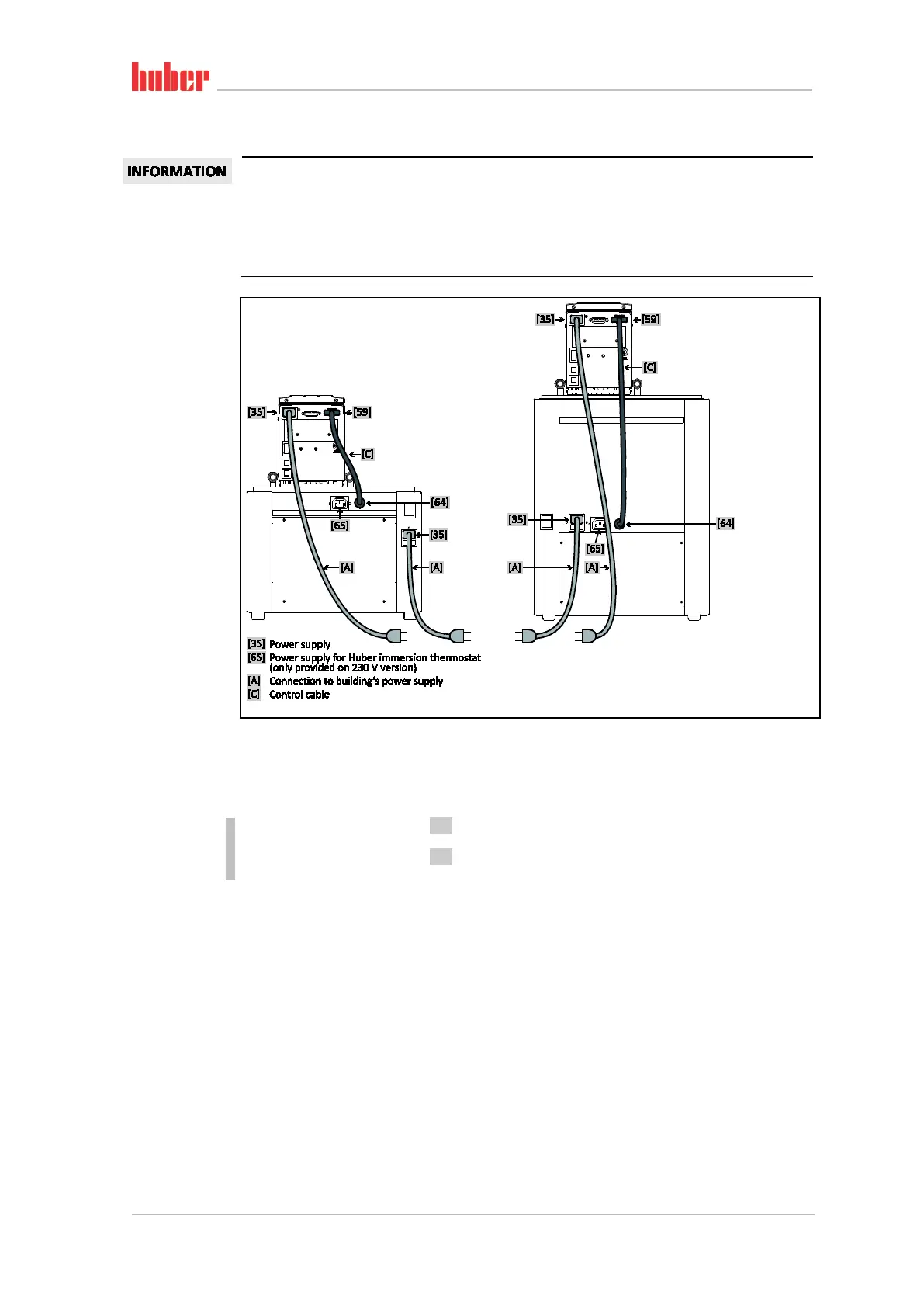

Installing the power
cable connection (K1x
+ K2x) - cool-
ing/heating bath (valid
for 100 V, 115 V and
230 V versions)
