Setup mode
OPERATION MANUAL Chapter 4
CC® Liability for errors and misprints excluded. V1.3.0en/06.07.15//14.06
The following data entry is required only for:
a) initial startup
b) reseting the temperature control unit to the factory settings
(see page 43, section »Restore factory settings«).
After switching on the temperature control unit, tap on the required system language.
Confirm your choice by tapping on “OK”.
Tap on the thermal fluid used.
Confirm your choice by tapping on “OK”.
Read the message and confirm by tapping on “OK”.
Enter the volume using the number keypad that appears.
Confirm your entry by tapping on “OK”.
Tap on the cooling bath used. This selection list is displayed only when the Pilot ONE was con-
nected to a cooling bath.
Confirm your choice by tapping on “OK”.
If your temperature control unit is not integrated into a network, confirm the preset IP address
(0.0.0.0) by tapping on “OK”. This skips the network settings.
Enter the required IP address using the number keypad that appears.
Confirm your entry by tapping on “OK”.
Enter the required Subnet Mask using the number keypad that appears.
Confirm your entry by tapping on “OK”.
Tap on the required remote control mode.
Confirm your choice by tapping on “OK”.
4.1.2.2 Cooling/heating baths: Switching K6 off
PROCEDURE
Switch off the cooling bath using the >mains switch< [37] (Position “0”).
4.1.3 Cooling/heating baths: Switching K1x and K2x on/off
4.1.3.1 Cooling/heating baths: Switching K1x and K2x on (without hanger thermostat)
PROCEDURE
Switch on the cooling bath using the >mains switch< [37] (Position “I” continuous operation).
The maximum cooling capacity of the cooling bath is permanently available in "continuous oper-
ation" (Position "I" of the >mains switch< [37]).
4.1.3.2 Cooling/heating baths: Switching K1x and K2x off (without hanger thermostat)
PROCEDURE
Switch off the cooling bath using the >mains switch< [37] (Position “0”).

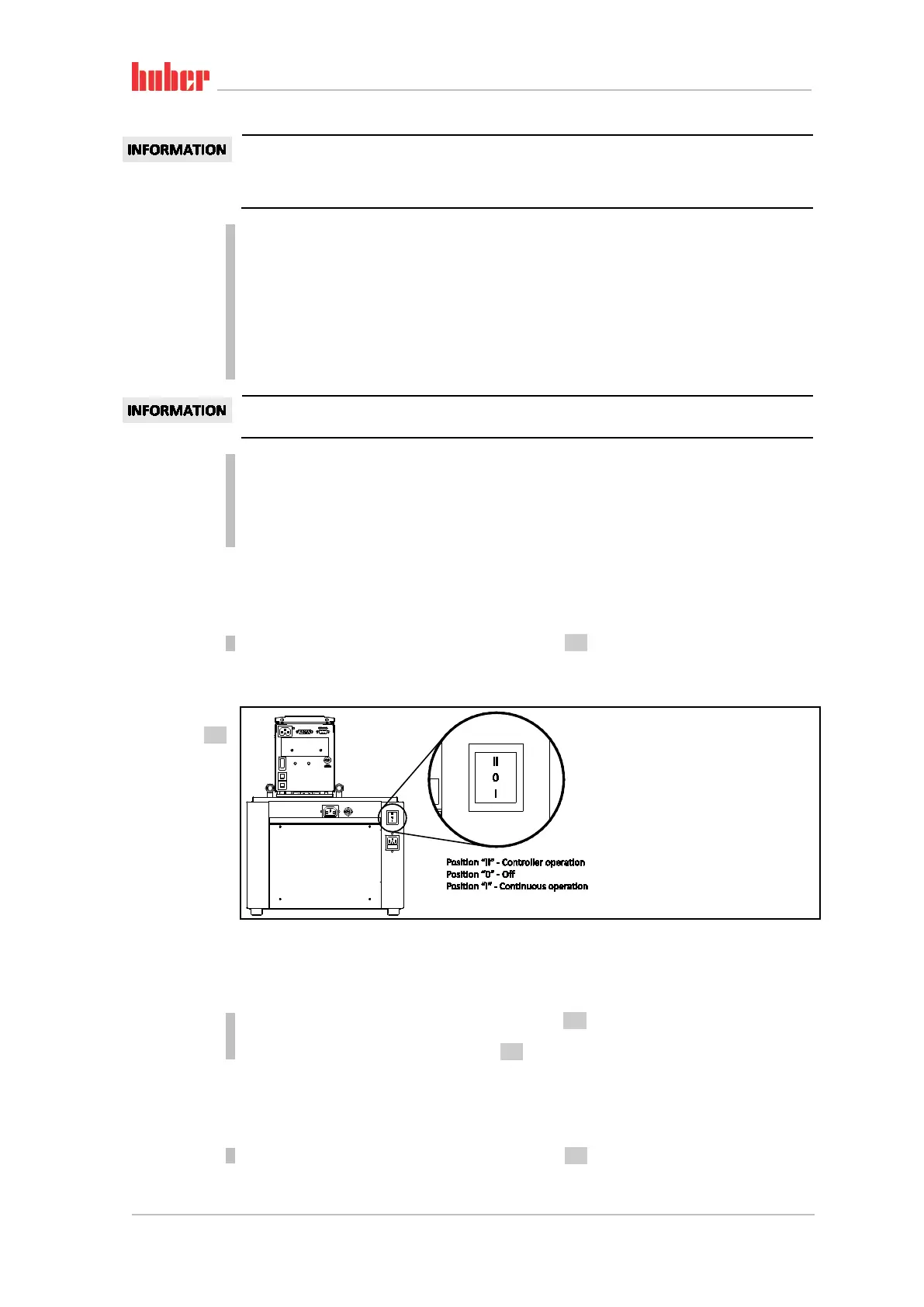

Positions of the
>mains switch< [37]
on K1x and K2x
