Commissioning
OPERATION MANUAL Chapter 2
CC® Liability for errors and misprints excluded. V1.3.0en/06.07.15//14.06
28
The energizing lead must be installed only if the cooling bath is used in combination with a hanger
thermostat. The cooling/heating bath K6 can only be used in combination with the supplied hang-
er thermostat.
PROCEDURE

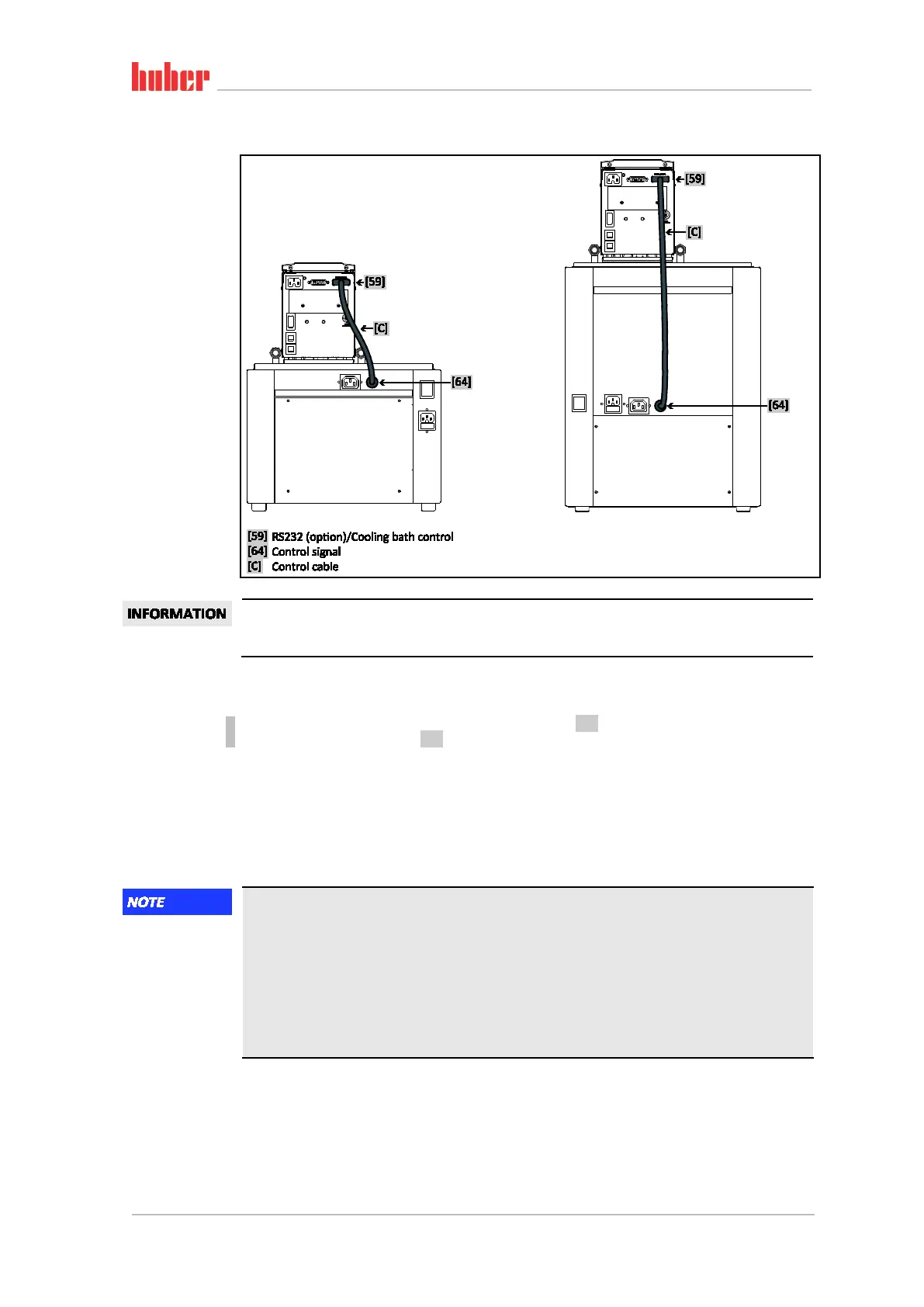

 Connect the >RS232 (option)/activation cooling bath< [59] port on the hanger thermostat with
the >activation connector< [64] on the cooling bath. The cable required is included.
2.10 Connecting externally closed application
The illustration “Wiring diagram” can be found on page 83 in section »Annex«.
2.10.1 Connecting an externally closed application
Pressure > 0.5 bar (g) with glass apparatus
MATERIAL DAMAGE CAUSED BY CRACK FORMATION AT THE GLASS APPARATUS.
 Provide an over-pressure protective device to prevent damage to the glass apparatus.
 Do not install valves/quick-release couplings in the feed/discharge lines from the temperature
control unit to the glass apparatus and from the glass apparatus to the temperature control
unit.
 If valves/quick-release couplings are required:
 Install burst disks on the glass apparatus itself (at the feed and discharge lines).
 Install a bypass upstream of the valves/quick-release couplings for the glass apparatus.

Matching accessories (e.g. bypasses to reduce pressure) can be found in the Huber catalog.
Connect the energizing
lead
K1x und K2x
