Chapter 3 • Installing the HN7000S remote terminal
20
1037076-0001 Revision C
6. Highlight the Internet Protocol (TCP/IP) option and click
Properties. The Internet Protocol Properties dialog appears
as shown in
Figure 14.
7. Ensure that both Obtain an IP Address Automatically and
Obtain DNS Server Address Automatically are selected. If
not, select them.
8. Select OK to close the open dialog boxes and finish the
configuration.
9. Restart the computer even if Windows does not require you to
do so. This ensures that the network settings are
automatically reset.

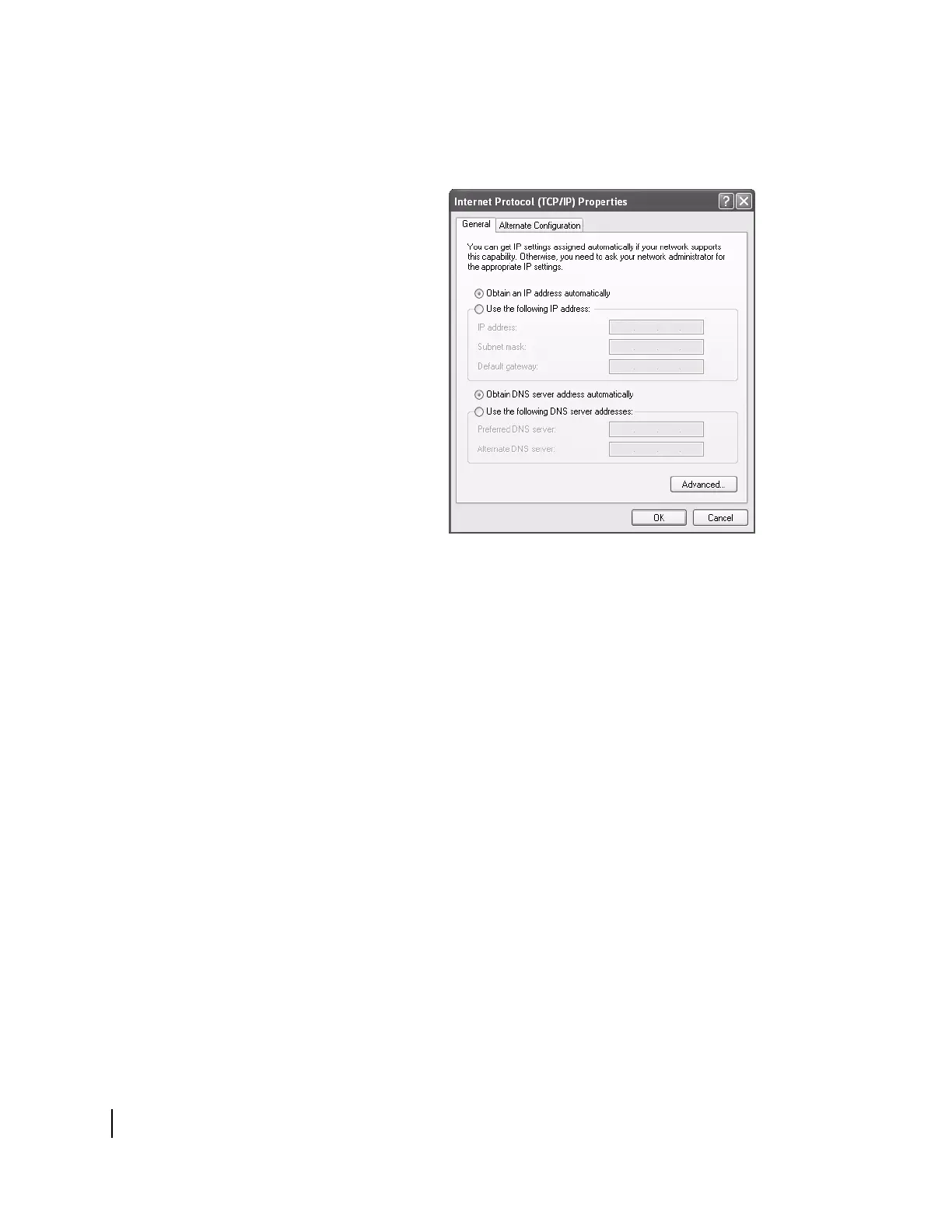

Figure 14: Internet Protocol Properties
