Chapter 3 • Installing the HN7000S remote terminal
26
1037076-0001 Revision C
Connecting component
cables
Refer to Figure 22 and complete the following steps to connect
the component cables:
1. Place the HN7000S remote terminal in its pedestal, in the
same location where your old remote terminal was installed.
2. Connect the original remote terminal power supply’s DC
power cord to the DC IN connector on the HN7000S remote
terminal.
3. Connect the coaxial cable labeled satellite out to the SAT
OUT connector on the HN7000S remote terminal.
Note: Do not connect the AC power cord to the power
source until instructed to do so.

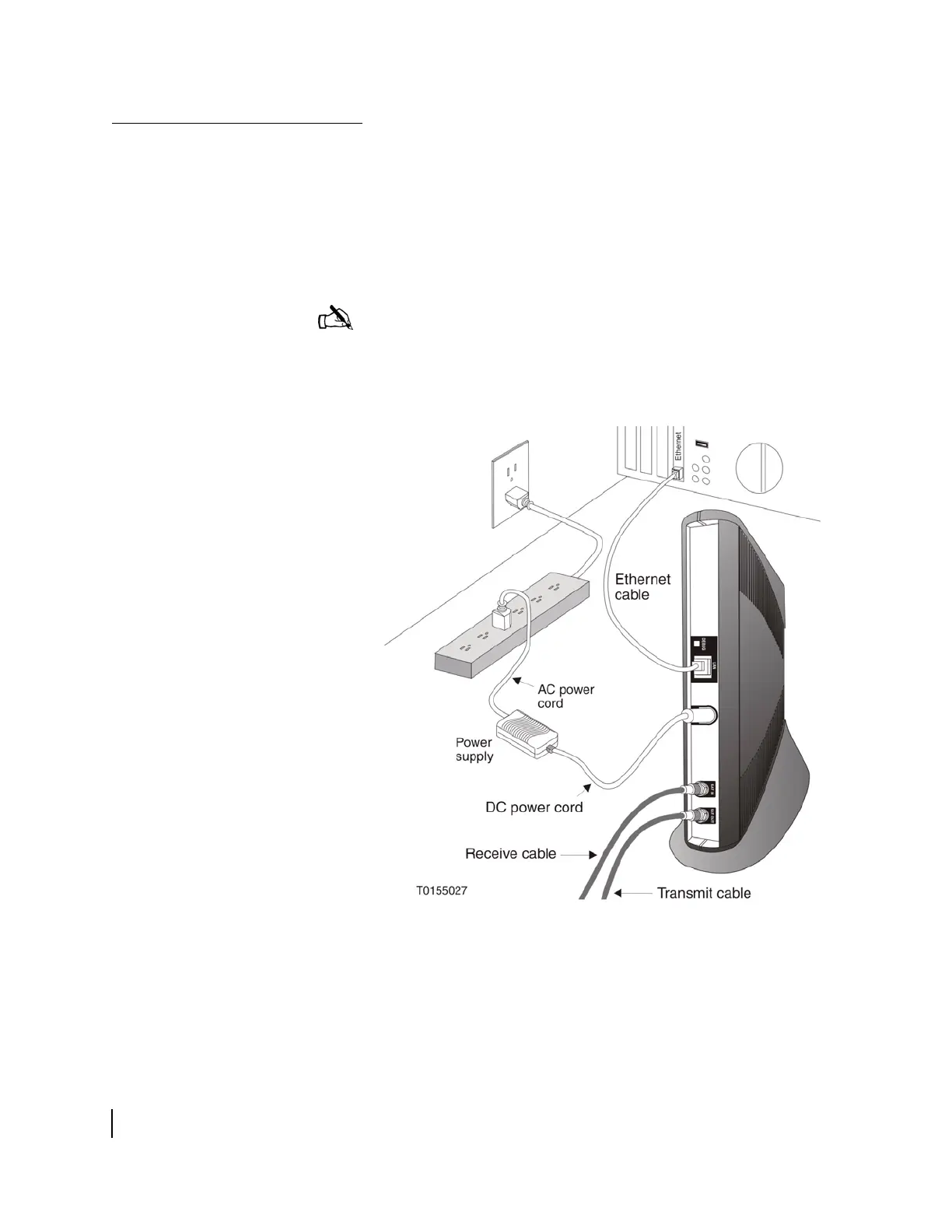

Figure 22: Connecting component cables
