Appendix A • Configuring Windo
ws network settings manually for
static IP address
1037076-0001
Revision C
63
4.
Ensure that the Client for Mi
crosoft Networks and Interne
t
Protocol (TCP/IP) are installe
d an
d check
ed. If NetBEUI is
installed, uninstall it.
5.
Highlight
Internet
Protocol (TCP/IP)
, being careful not to
uncheck th
e check bo
x, and click
Properties
.
See Figure
54
.

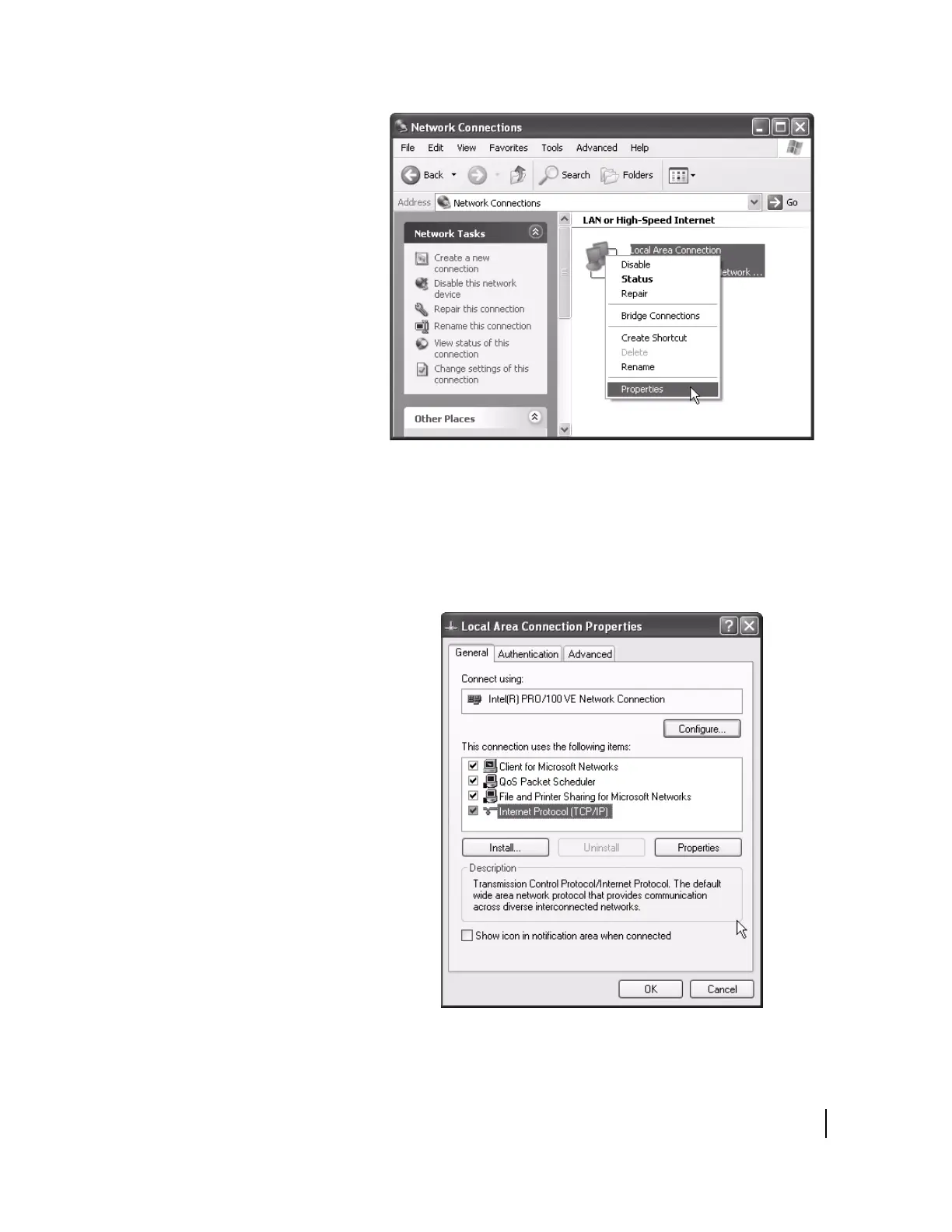

Figure 53:
Local Area Connections
Figure 54:
TCP/IP Properties
