Appendix A • Configuring Windows network settings manually for static IP address
66
1037076-0001 Revision C
4. Ensure that the Client for Microsoft Networks and Internet
Protocol (TCP/IP) are installed and checked. If NetBEUI
appears in the list, uninstall it.
5. Highlight Internet Protocol (TCP/IP), being careful not to
uncheck the check box, and click Properties to access the
Internet Protocol (TCP/IP) Properties screen. See
Figure 58.
6. In the General tab, select Use the following IP address. Enter
an appropriate IP Address from the range of available IP
addresses listed in the FAQs in the System Control Center.
7. In the Subnet Mask field, enter the address from the LAN1
Subnet Mask that you recorded from the System Information
page.
8. In the Default Gateway field, enter the LAN1 IP Address that
you recorded from the System Information page.

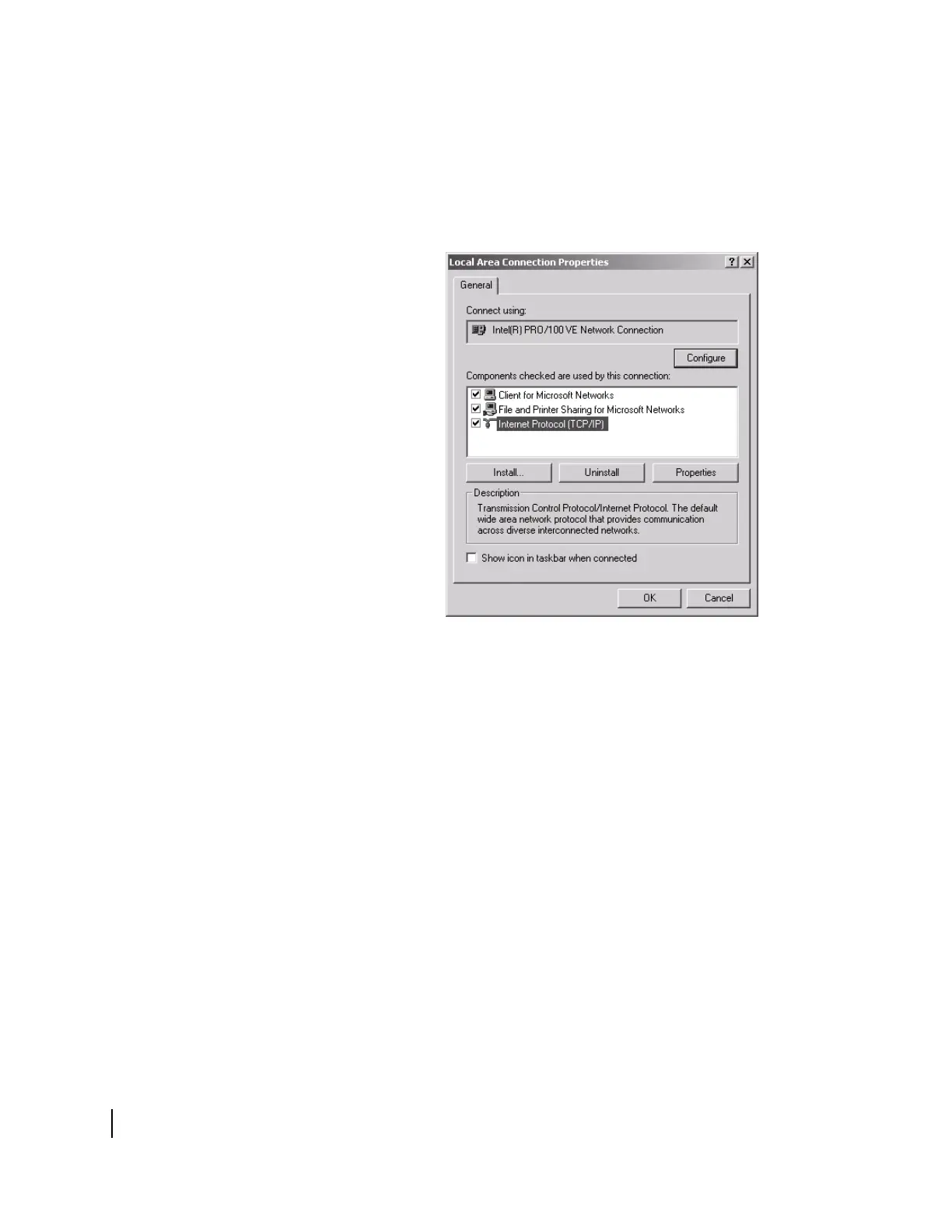

Figure 58: Local Area Connection Properties
