Appendix A • Configuring Windows network settings manually for static IP address
1037076-0001 Revision C
67
9. Enter 66.82.4.8 in the Preferred DNS server field. Enter
66.82.4.12 in the Alternate DNS server field. See
Figure 59.
10. Click OK to save and close the Internet Protocol (TCP/IP)
Properties dialog.
11. Click OK again to save and close Local Area Connection
Properties.
12. Reboot the PC if necessary.
Windows 98SE or Me
1. Select Start→ Settings→ Control Panel.
2. Select Network. The Network configuration dialog box opens
to the
Configuration tab. See Figure 60.
3. Select the TCP/IP protocol bound to the NIC connected to the
remote terminal and select Properties. In
Figure 60, it is
TCP/IP -> Intel (R) Pro/100VE Network
Connection
. Your system may display different NIC
information. The
TCP/IP Properties box opens to the IP
Address
tab. See Figure 61.

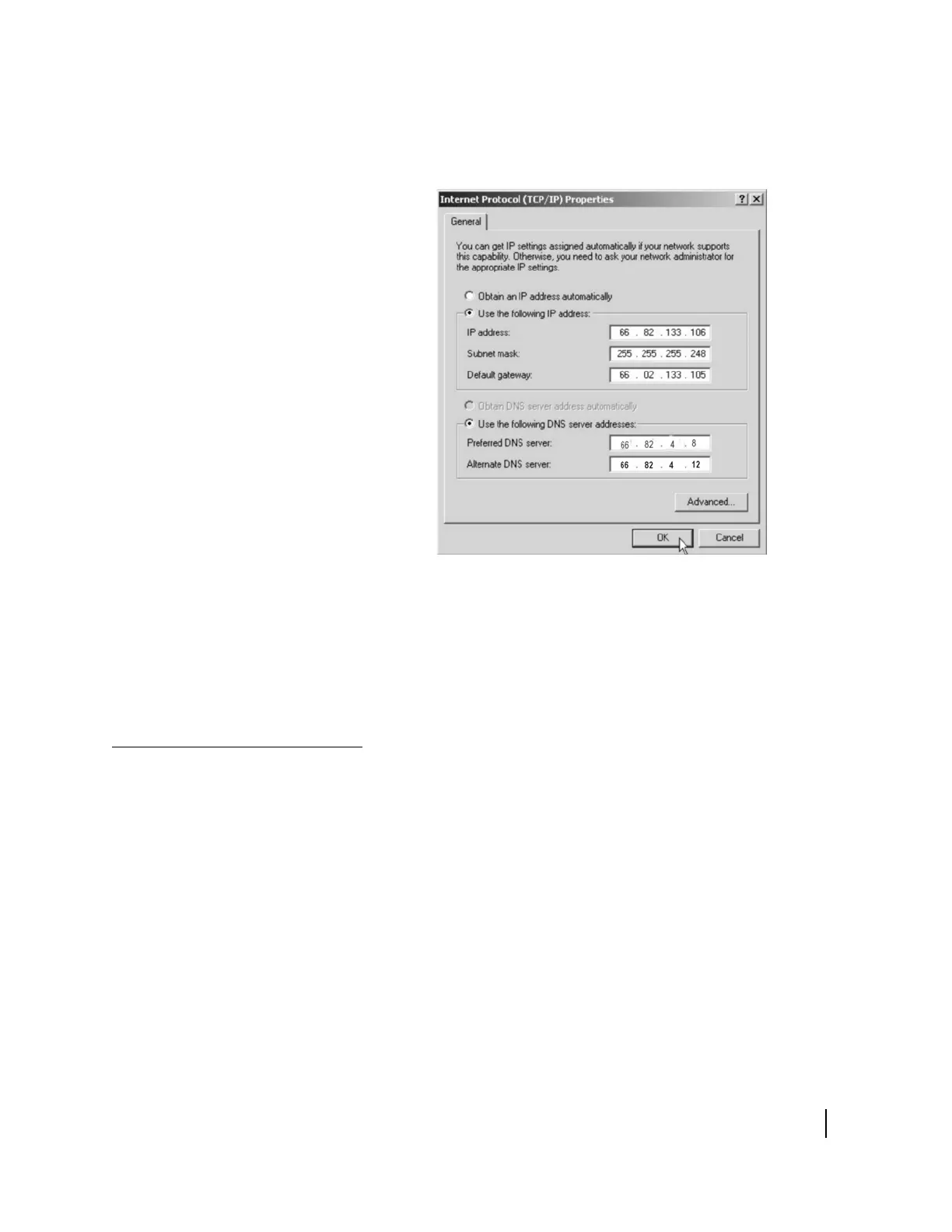

Figure 59: TCP/IP Properties
