9-12: Assemblies and Parts Lists 9-13: Assemblies and Parts Lists

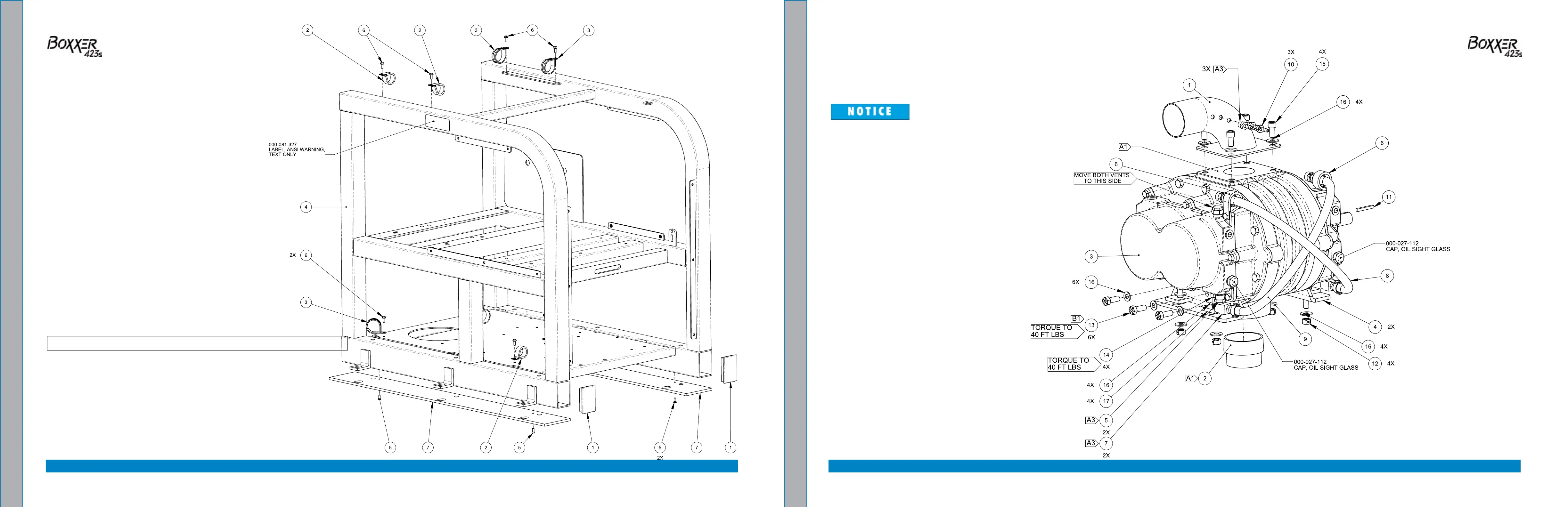

Figure 9-9. Frame Assembly - View 2 of 2
610-001-728 Rev. D
1 000-027-110 Cap, 2” X 3” Frame End 2
2 000-033-057 Clamp, 1” Cushion Loop 3
3 000-033-053 Clamp, 1-1/2” Cushion Loop 5
4 000-055-195 Frame, Complete - Coated 1
5 000-143-114 Screw, #10-24UNC X 0.50” Lg. Flat Head Phillips 4
6 000-143-583 Screw, #10-24UNC X 0.50” Lg. Hex Head Flange Z/P 8
7 000-154-156 Spacer, Machine Rising 4” X 35” 2
Item Part Number Description Qty
Frame Assembly Parts List
Figure 9-10. Blower Assembly - View 1 of 2
610-002-728 Rev. D
See Figure 9-1 for adhesive/sealant information.
To Next Page
